Commissioning
11.11 Identification and maintenance data
Distributed I/O system
System Manual, 09/2019, A5E03576849-AJ
231
3. Create the "Get_IM_Data" instruction in the user program, e.g. in OB 1.
4. Connect the "Get_IM_Data" instruction as follows:

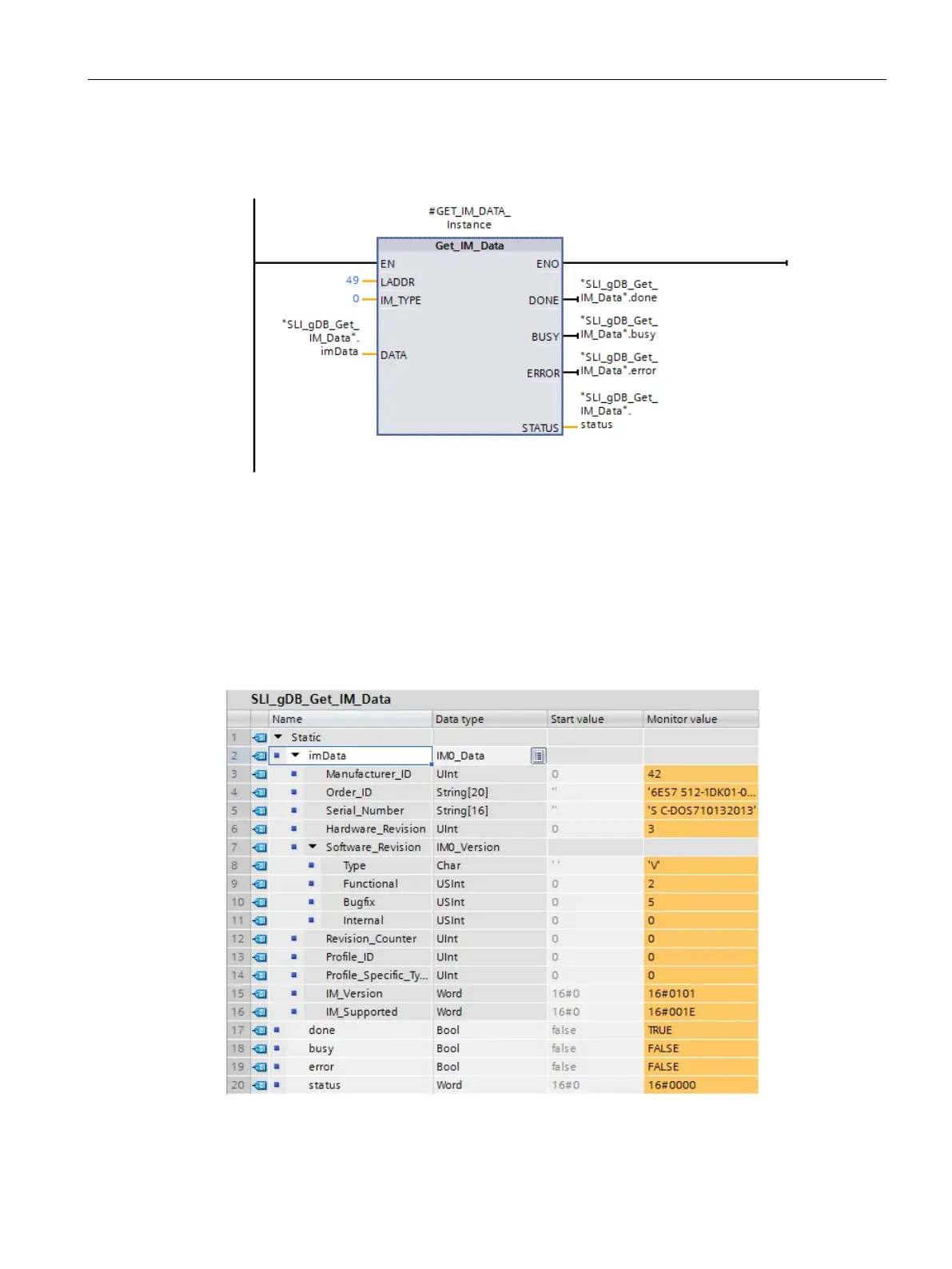

Figure 11-14 Example: Calling the "Get_IM_Data" instruction
5. Call the "Get_IM_Data" instruction in the user program.
Result
The "Get_IM_Data" instruction has stored the I&M0 data in the data block.
You can view the I&M0 data online in STEP 7, for example, in the data block with the
"Monitor all" button. The CPU in the example is a 1512SP-1 PN (6ES7512-1DK01-0AK0)
with the firmware version V2.5.
Figure 11-15 Example: I&M0 data of an ET 200SP CPU

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
