Siemens SIMATIC S7-1500 Automation System User Manual

Maintenance
9.2 Replacement of I/O modules and front connectors
S7-1500 Automation System
118 System Manual, 01/2013, A5E03461182-01
9.2.2 Replacing an I/O module
Introduction
When the front connector is first inserted into the I/O module, a part of the coding element
clips onto the front connector. When you replace an I/O module with the same type of
module, the correct coding element is already present in the front connector.
Replacing an I/O module
You have already uninstalled the I/O module.
1. With a new I/O module, use a screwdriver to break out the half of the coding element that
is designated for the front connector.

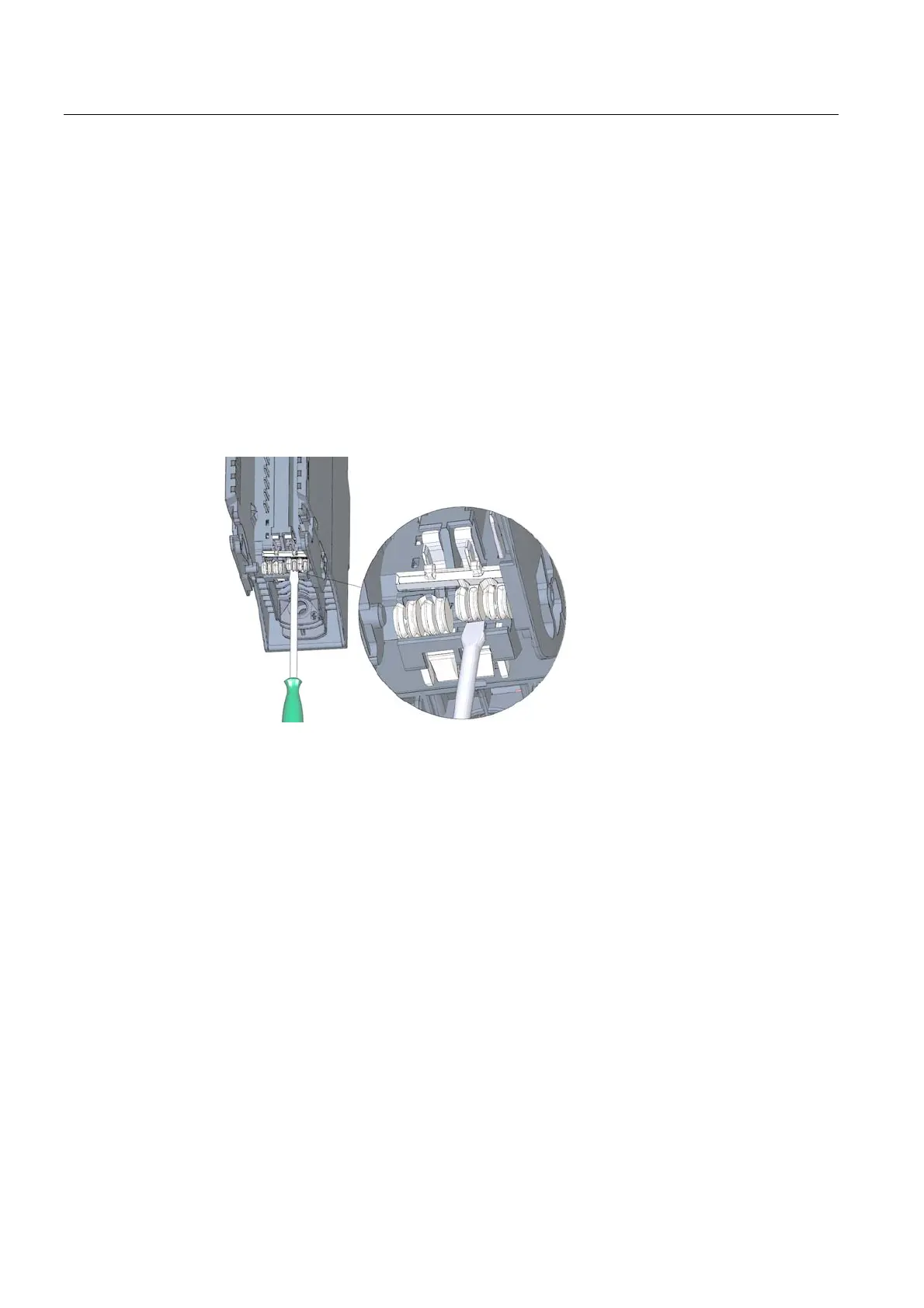

Figure 9-3 Breaking the coding element out of the I/O module
2. Insert the old front connector into the new I/O module (same module type) until your hear
it click into place.

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
