Commissioning
8.4 Operating modes
S7-1500 Automation System
System Manual, 01/2013, A5E03461182-01
99
8.4 Operating modes
Introduction
Operating modes describe the states of the CPU. The following operating states are possible
via the mode selector:
● STARTUP
● RUN
● STOP
In these operating modes, the CPU can communicate, e.g. via the PN/IE interface.
The status LEDs on the front side of the CPU indicate the current operating mode.
Reference
You can find additional information in the STEP 7 online help.
8.4.1 Operating mode transitions
Operating modes and operating mode transitions

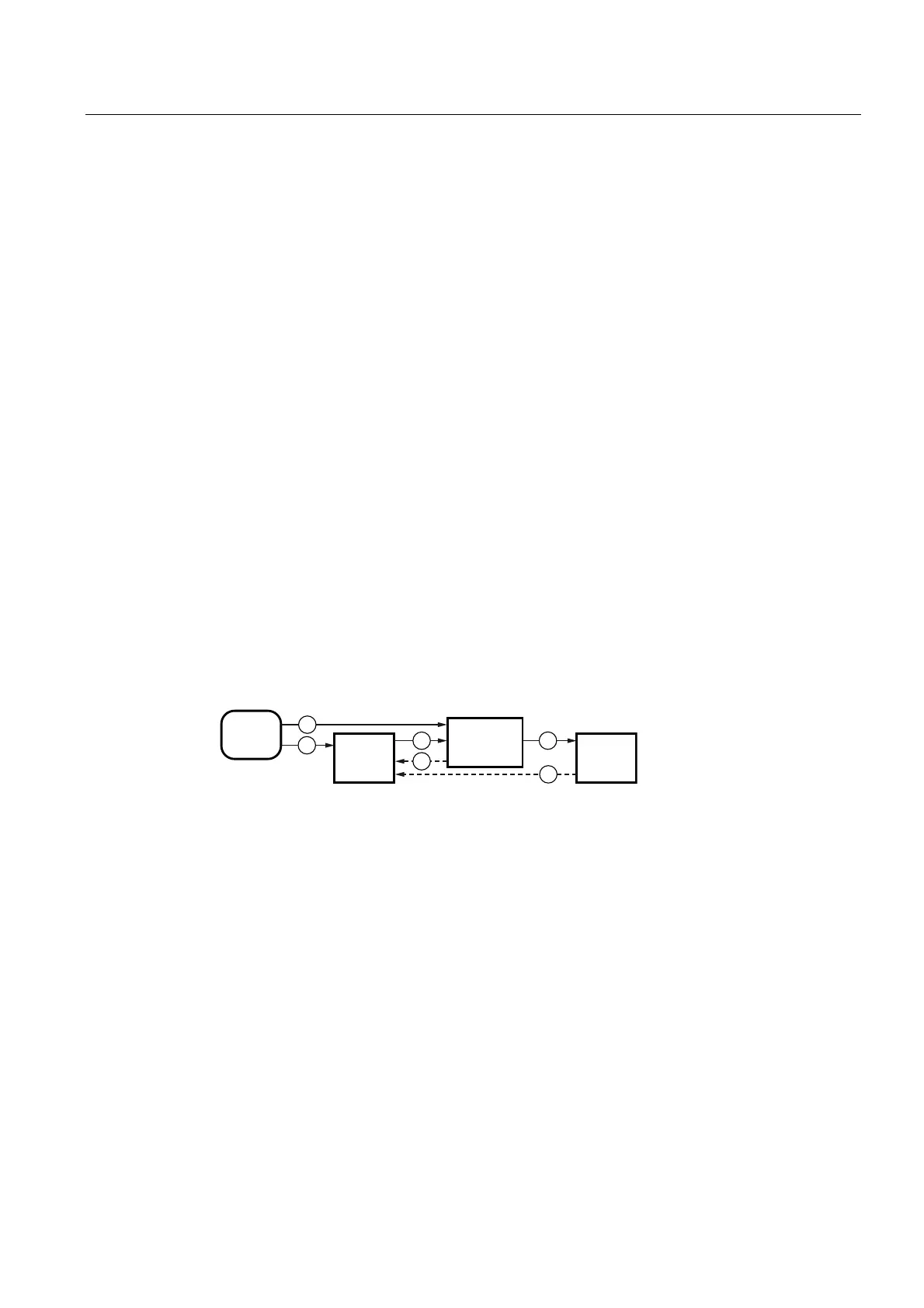

The following figure shows the operating modes and the operating mode transitions:
67$5783
32:(5
21
6723 581






Figure 8-2 Operating modes and operating mode transitions

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
