Siemens SIMATIC S7-1500 Automation System User Manual

Installation
5.5 Installing the CPU
S7-1500 Automation System
System Manual, 01/2013, A5E03461182-01
49
5.5 Installing the CPU
Introduction
The CPU executes the user program and uses the integrated system power supply to supply
the electronics of the modules via the backplane bus.
Requirements
The following preconditions have to be fulfilled to mount a CPU:
● The mounting rail is installed.
● In a system power supply located on the left next to the CPU, a U connector is inserted
on the back right.
Tools required
Screwdriver with 4.5 mm blade
Installing the CPU
1. Insert a U-connector into the back right on the CPU.
2. Install the CPU on the mounting rail and slide the CPU up to the left-hand system power
supply.
3. Ensure that the U-connector is inserted at the system power supply. Swivel the CPU in to
the rear.
4. Fasten the CPU (torque 1.5 Nm).




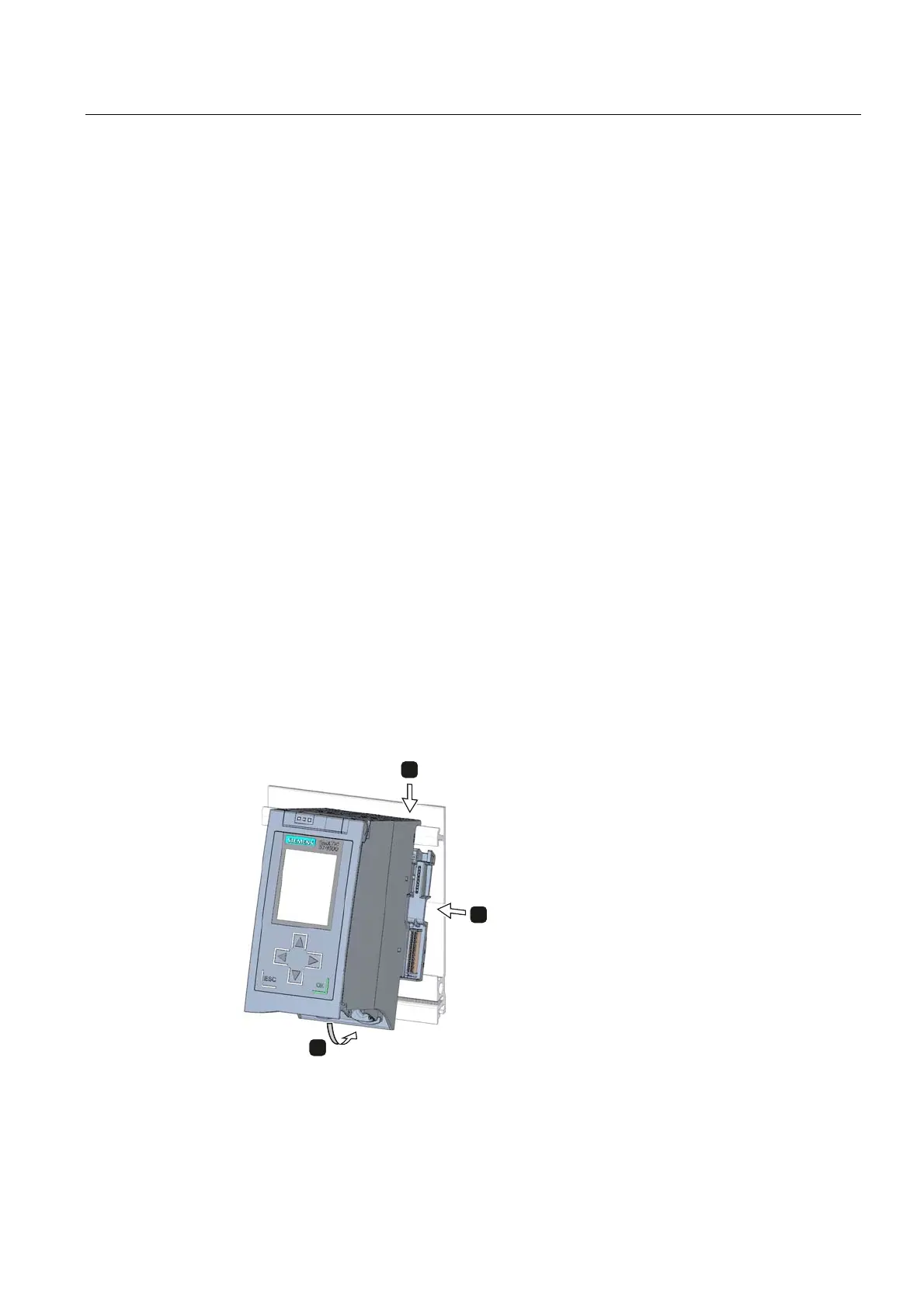

Figure 5-6 Installing the CPU

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
