Dimension drawings
A.9 Dimension drawing of load power supply, 75 mm wide
S7-1500 Automation System
System Manual, 01/2013, A5E03461182-01
187
Note
Minimum clearances
Observe the minimum clearances of 25 mm, above and below the mounting rail, as
described in the chapterMounting (Page 39).
A.9 Dimension drawing of load power supply, 75 mm wide
In this appendix you will find the dimension drawing of the load power supply installed on a
mounting rail, as well as a dimension drawing with open front cover. Always observe the
specified dimensions for installation in cabinets, control rooms, etc.

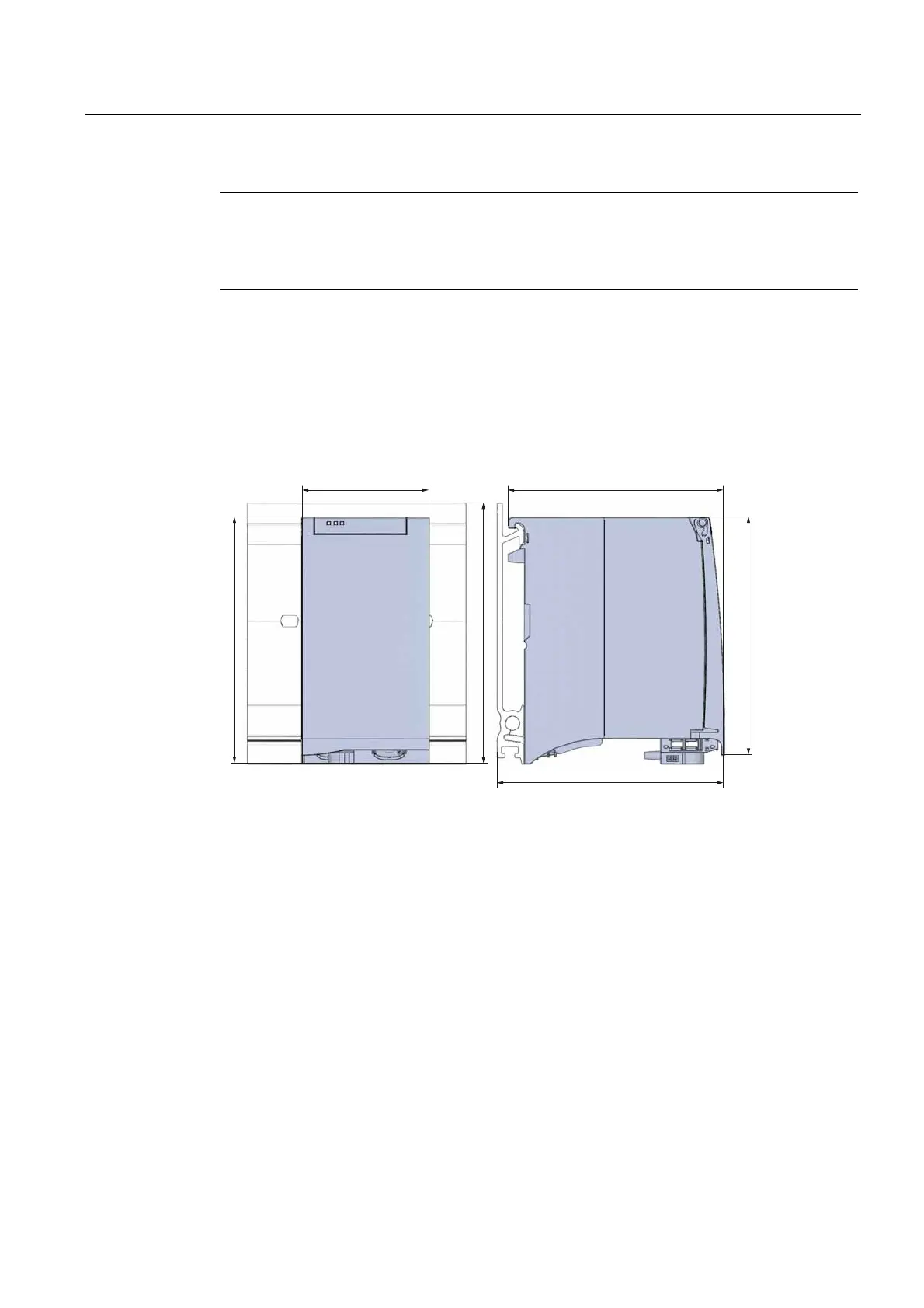

Figure A-20 Dimension drawing of load current supply (75 mm wide), front and side views
