Test functions and fault resolution
10.2 Reading out/saving service data
S7-1500 Automation System
System Manual, 01/2013, A5E03461182-01
133
10.2 Reading out/saving service data
Introduction
In addition to the contents of the diagnostics buffer, the service data contain numerous
additional data points about the internal status of the CPU. If a problem with the CPU should
occur, that cannot otherwise be resolved, please send the service data to our Service &
Support. The service data allow Service & Support to analyze problems that have occurred
rapidly.
Requirements
Service data can be read out via the Web server. For this reason the Web server has to be
activated.
Procedure
1. Open a web browser that is suitable for communication with the CPU.
2. Enter the following address in the address bar of the web browser:
https://<CPU IP address>/save_service_data.html,
e.g., https://172.23.15.3/save_service_data.html
3. The service data page will appear on your screen, with a button for saving the service
data.

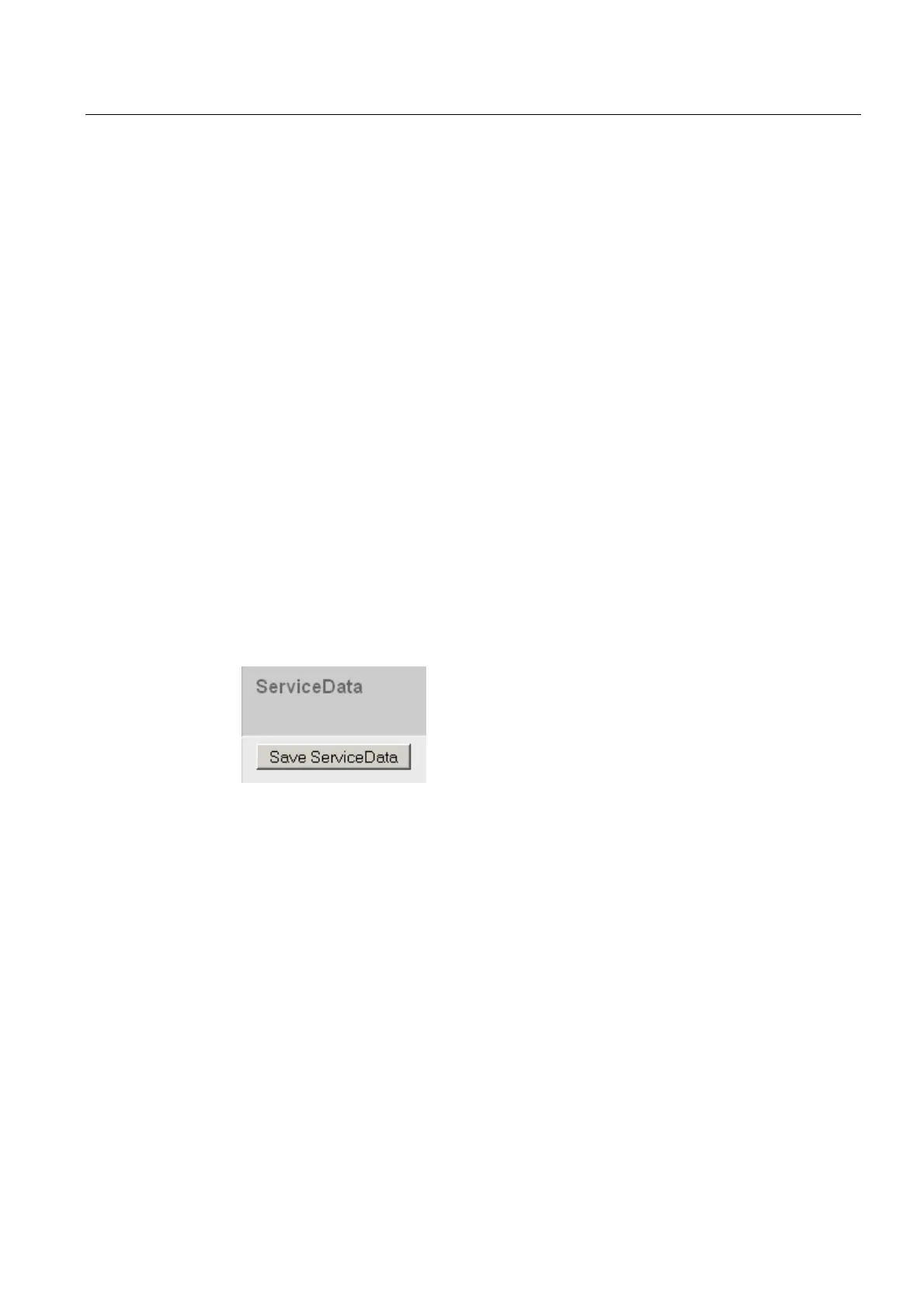

Figure 10-1 Reading out service data via the web server
4. Save the service data locally on your PC/programming device, by clicking "Save
ServiceData".
Result: The data are saved in a .dmp file with the following naming convention: "<MLFB>
<serial number> <time stamp>.dmp". The file name can be changed.

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
