Siemens SIMATIC S7-1500 Automation System User Manual

Installation
5.6 Installing I/O modules
S7-1500 Automation System
System Manual, 01/2013, A5E03461182-01
51
5.6 Installing I/O modules
Introduction
The I/O modules are installed following the CPU. I/O modules form the interface between the
controller and the process. The controller detects the current process state via the connected
sensors and actuators, and triggers the corresponding reactions.
Requirements
The following preconditions have to be fulfilled to mount an I/O module:
● The mounting rail is installed.
● The CPU is installed.
● In the module / CPU located on the left next to the I/O module, a U-connector is inserted
on the back right.
Tools required
Screwdriver with 4.5 mm blade
Installing I/O modules
Proceed as follows to install an I/O module:
1. Insert a U-connector into the back right on the I/O module.
Exception: the last I/O module in the assembly.
2. Install the I/O module on the mounting rail and slide the I/O module up to module on the
left.
3. Pivot the I/O module towards the back.
4. Fasten the I/O module (torque 1.5 Nm).




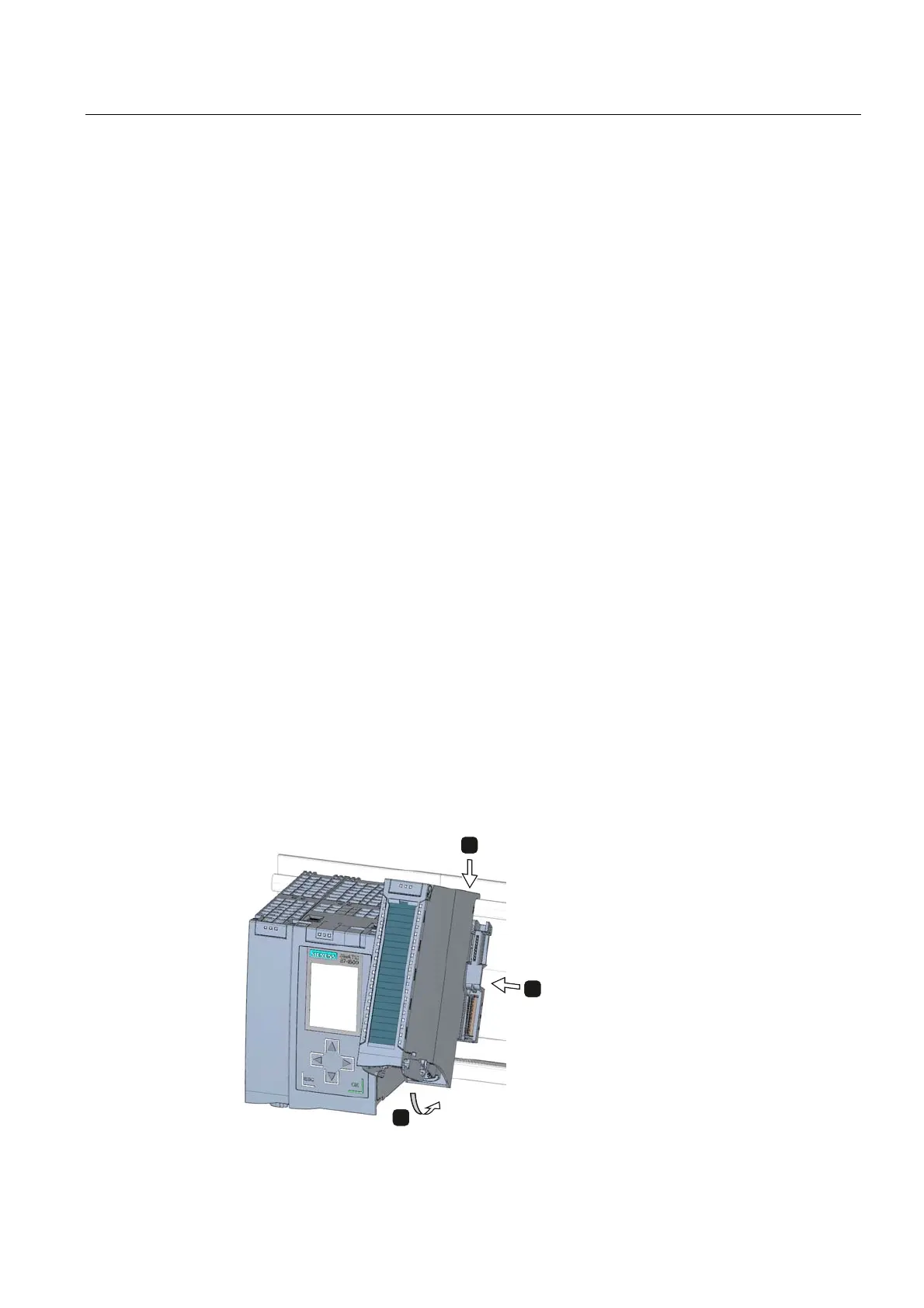

Figure 5-7 Installing I/O module

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
