Siemens SIMATIC S7-1500 Automation System User Manual

Installation
5.4 Mounting a load current supply module
S7-1500 Automation System
System Manual, 01/2013, A5E03461182-01
47
5.4 Mounting a load current supply module
Introduction
Load current supplies do not have a connection to the backplane bus of the S7-1500
automation systems and therefore do not use a configurable slot. The system power supply,
CPU, input and output circuits of the I/O modules and, if applicable, the sensor technology
and final controlling elements are supplied with 24 VDC through the load current supply.
Requirements
The mounting rail is installed.
Tools required
Screwdriver with 4.5 mm blade
Mounting a load current supply module
1. Install the load current supply on the mounting rail.
2. Swivel the load current supply to the rear.



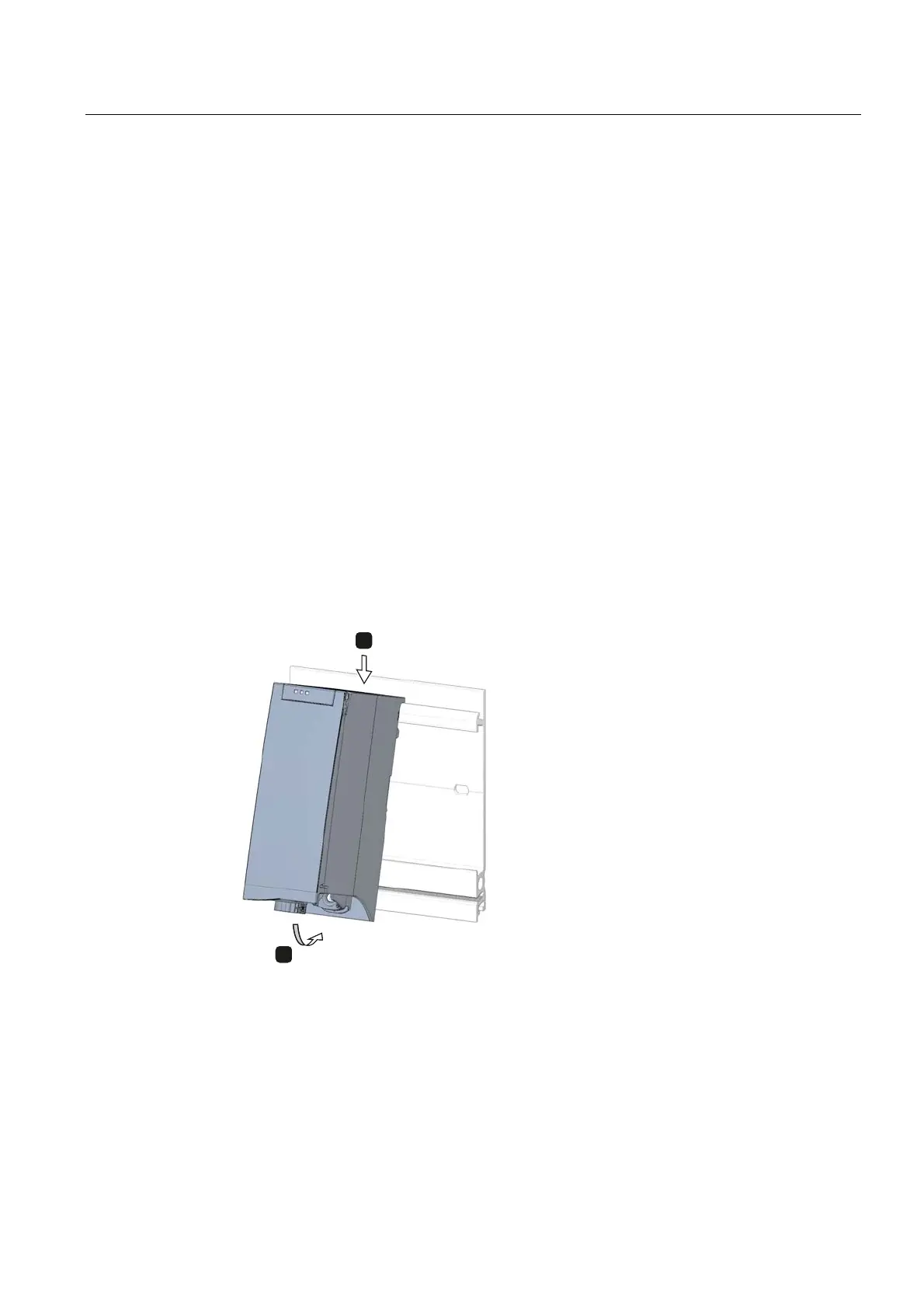

Figure 5-5 Mounting a load current supply module
3. Open the front cover.
4. Disconnect the power cable connector from the load current supply.
5. Screw the load current supply tight (torque 1.5 Nm).
6. Insert the already wired-up power cable connector into the load current supply.

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
