Siemens SIMATIC S7-1500 Automation System User Manual

Wiring
6.8 Front connector for the I/O modules
S7-1500 Automation System
74 System Manual, 01/2013, A5E03461182-01
6.8.4 Bringing the front connector into final position
Bring the front connector from the pre-wiring position into final position
Proceed as follows to bring the front connector from the pre-wiring position into final position:
1. Grip the front connector by the unlocking strap.
2. Pull on the strap until the front connector is released from its latched position.
3. Tilt the top section of the front connector and raise it slightly. The front connector slides
over the guide channel into its final position.

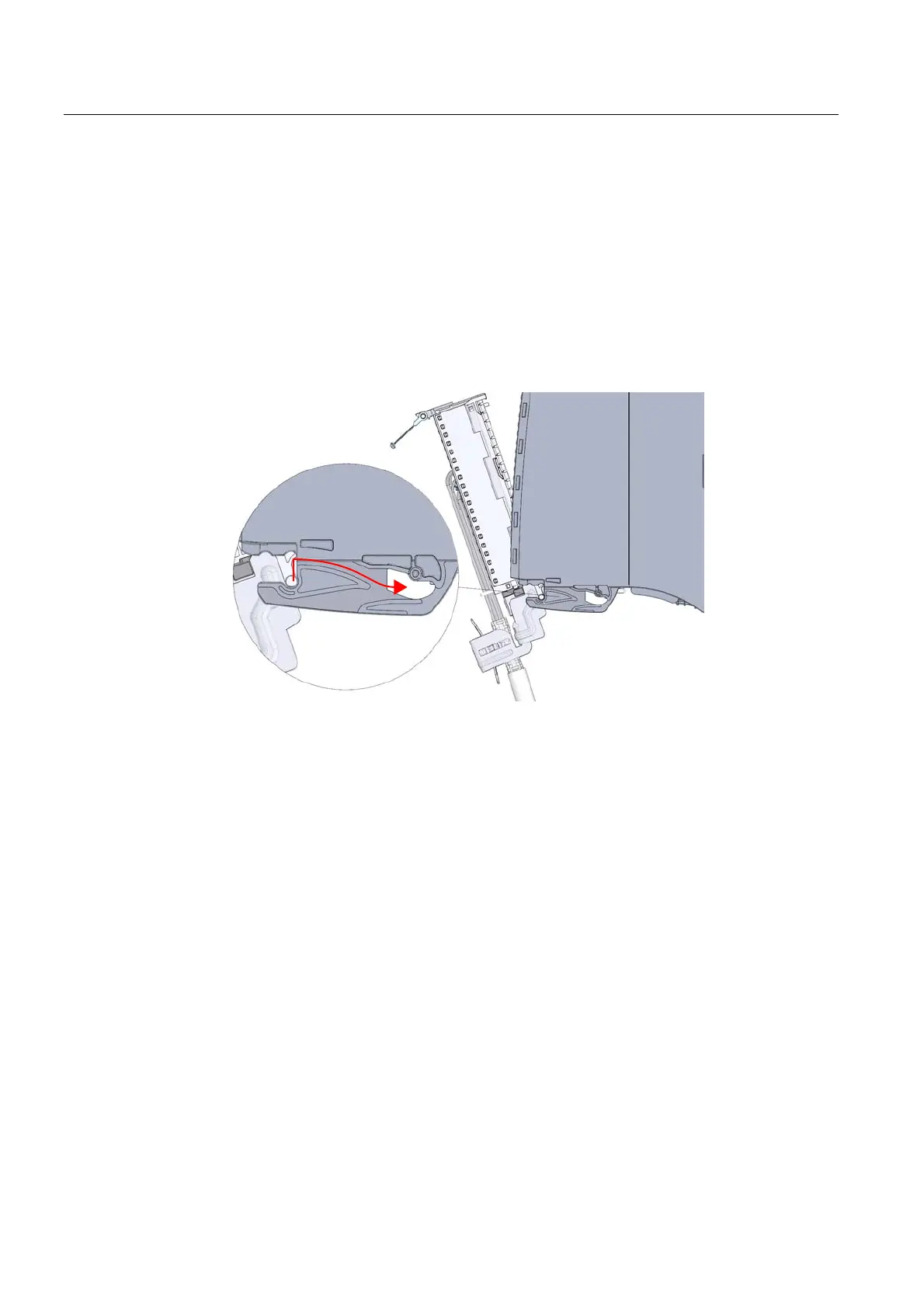

Figure 6-15 Bring the front connector from the pre-wiring position into final position
4. Push the front connector back into the I/O module until it latches. The front connector is
now electrically connected with the I/O module.
5. Swivel the front cover down into place. Depending on the space requirement of the cable
harness, various latch positions are possible, so that the required cable storage space
can grow as needed.

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
