6.8 Front connector for the I/O modules
S7-1500 Automation System
System Manual, 01/2013, A5E03461182-01
75
Bringing the front connector directly into final position
Proceed as follows to bring the front connector directly into final position:
1. Grip the front connector by the unlocking strap.
2. Push the guide pin of the front connector into the guide channel that has been displaced
downwards. The front connector slides over the guide channel into its final position.

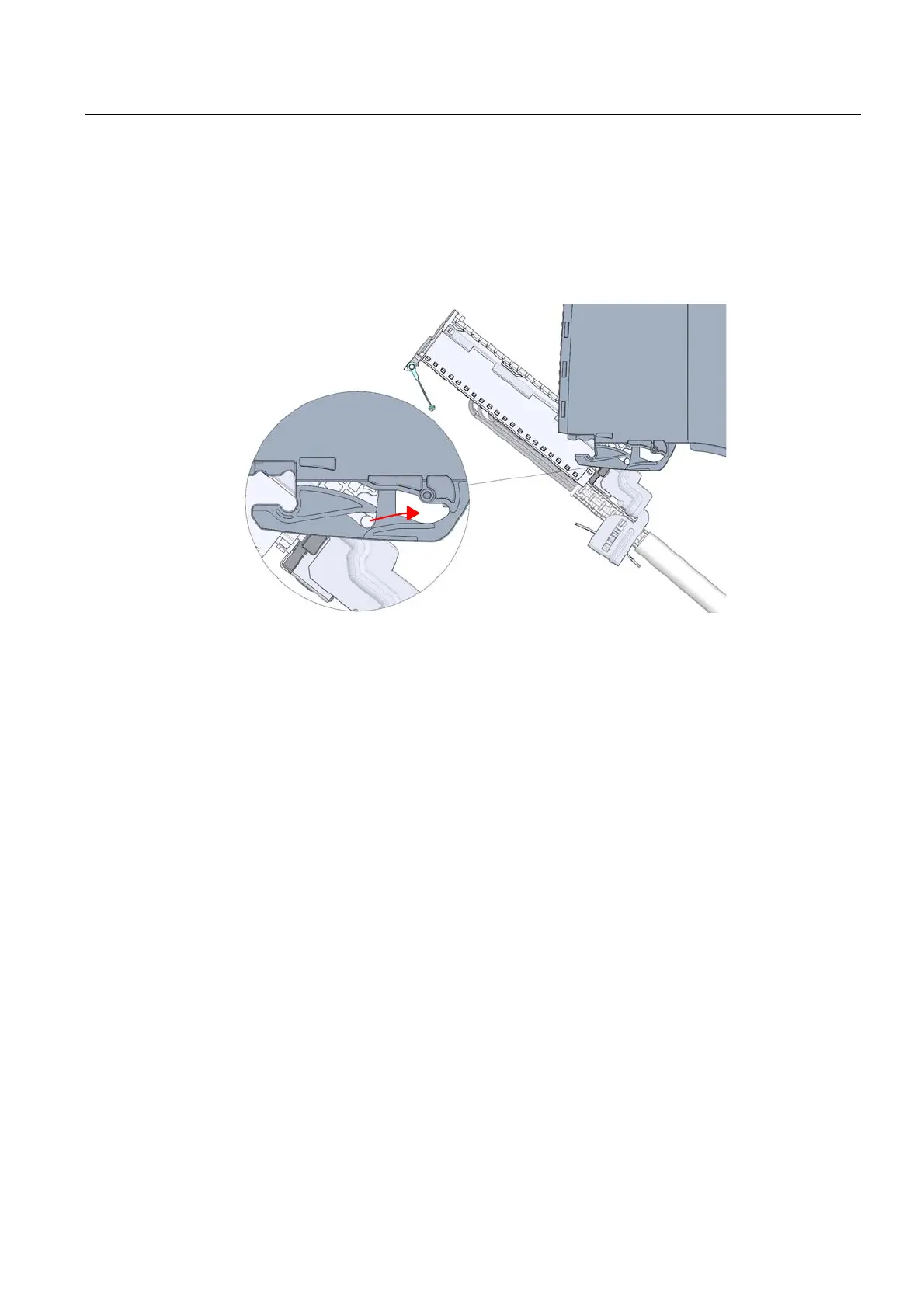

Figure 6-16 Bringing the front connector directly into final position
3. Tilt the front connector and press it into the I/O module until it latches. The front
connector is now electrically connected with the I/O module.
4. Swivel the front cover down into place. Depending on the space requirement of the cable
harness, various latch positions are possible, so that the required cable storage space
can grow as needed.

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
