Siemens SIMATIC S7-1500 Automation System User Manual

Configuring
7.1 Address assignment
S7-1500 Automation System
System Manual, 01/2013, A5E03461182-01
83
7.1 Address assignment
7.1.1 Addressing - Overview
Introduction
In order to address the automation components or I/O modules, unique addresses must be
assigned to them. The various address areas are explained below.
I/O address
I/O addresses (input/output addresses) are required to read inputs and set outputs in the
user program.
Input and output addresses are assigned automatically by STEP 7 when modules are
inserted. Each module uses a continuous area in the input and/or output addresses
corresponding to its volume of input and output data.

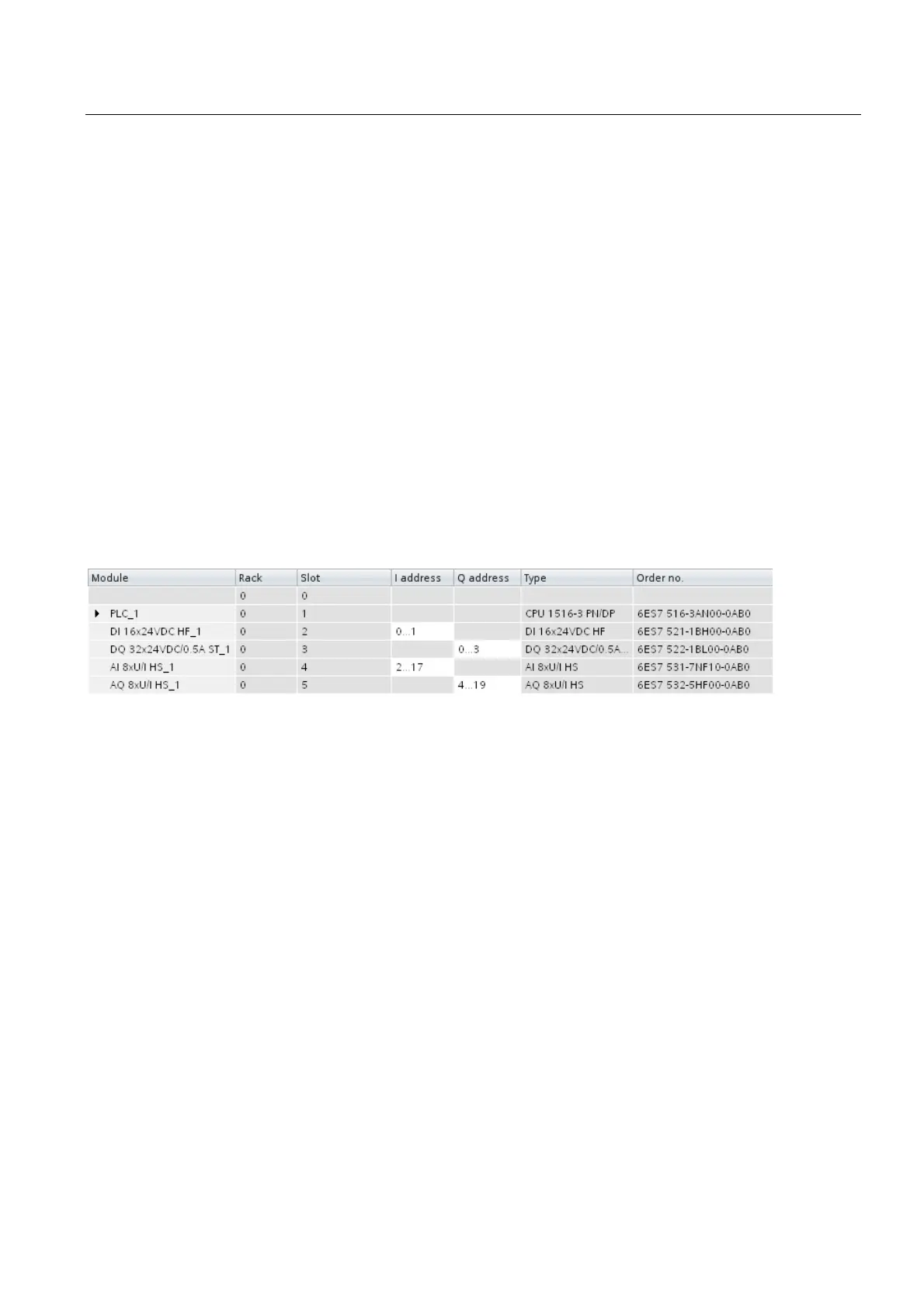

Figure 7-5 Example with input / output addresses from STEP 7
The address areas of the modules are assigned by default to the Process image partition 0
("Automatic updating"). This process image partition is updated in the main cycle of the CPU.
Device address (e.g., Ethernet address)
Device addresses are addresses of programmable modules with interfaces to a subnet
(e.g., IP address or PROFIBUS address). They are required in order to address the various
devices on a subnet, e.g., in order to download a user program.

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
