Dimension drawings
A.4 Dimension drawing of I/O module
S7-1500 Automation System
180 System Manual, 01/2013, A5E03461182-01
A.4 Dimension drawing of I/O module
In this appendix you will find the dimension drawing of the module installed on a mounting
rail, as well as a dimension drawing with open front cover. Always observe the specified
dimensions for installation in cabinets, control rooms, etc.

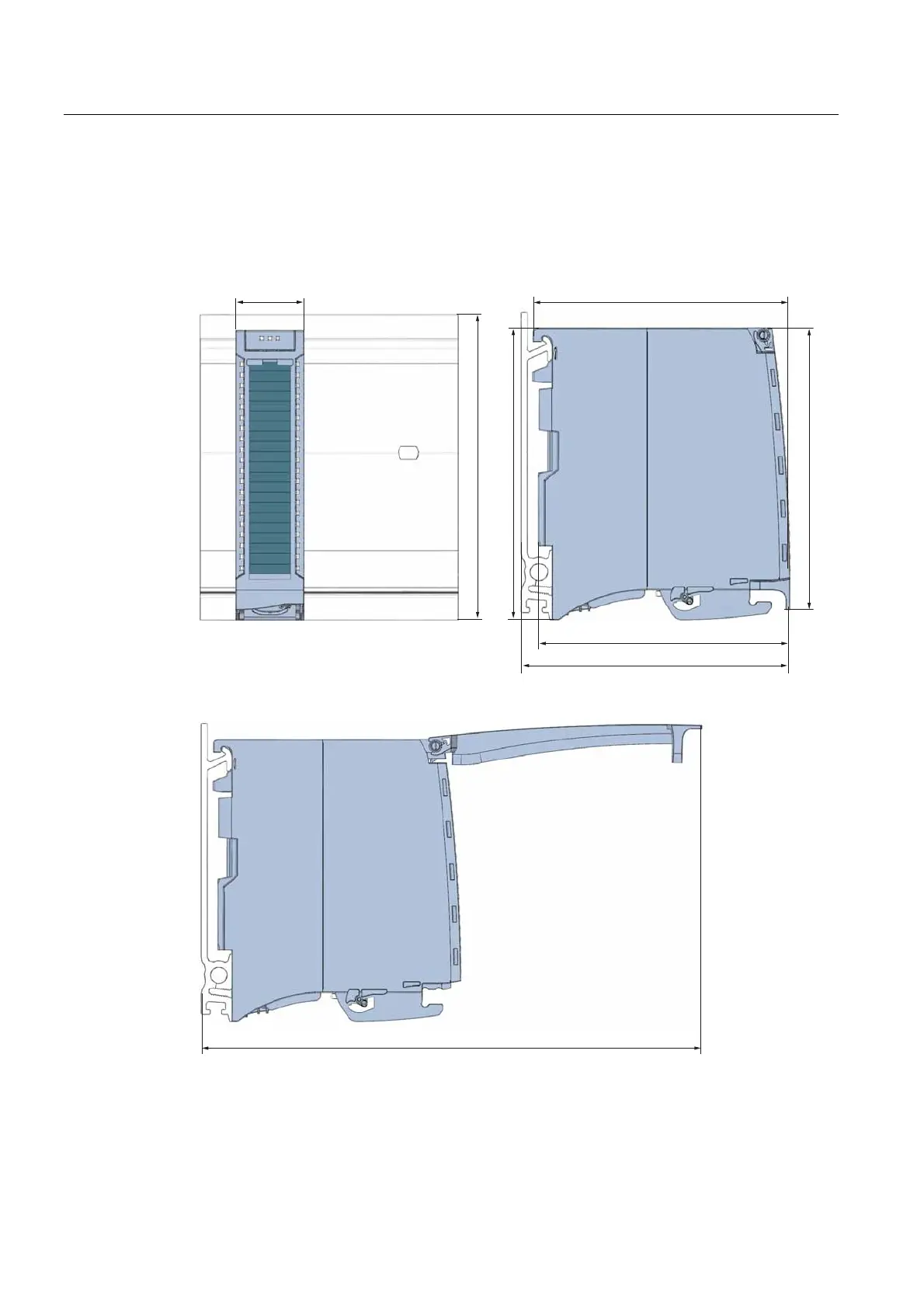

Figure A-10 Dimension drawing of I/O module, front and side views
Figure A-11 Dimension drawing of I/O module, side view with open front cover
