Siemens SIMATIC S7-1500 Automation System User Manual

Maintenance
9.2 Replacement of I/O modules and front connectors
S7-1500 Automation System
System Manual, 01/2013, A5E03461182-01
119
9.2.3 Replacing a front connector
Introduction
When the front connector is first inserted into the I/O module, a part of the coding element
clips onto the front connector. When you replace a defective front connector with a new front
connector, then you must transfer the coding element into the new front connector.
Replacing a front connector
You have already removed the front connector from the module and loosened the wiring. If
you are using the front connector for an analog module, you also need to remove the power
supply element and shield element. Proceed as follows to replace the front connector:
1. Carefully remove the coding element from the front connector. Take care not to damage
the coding element.

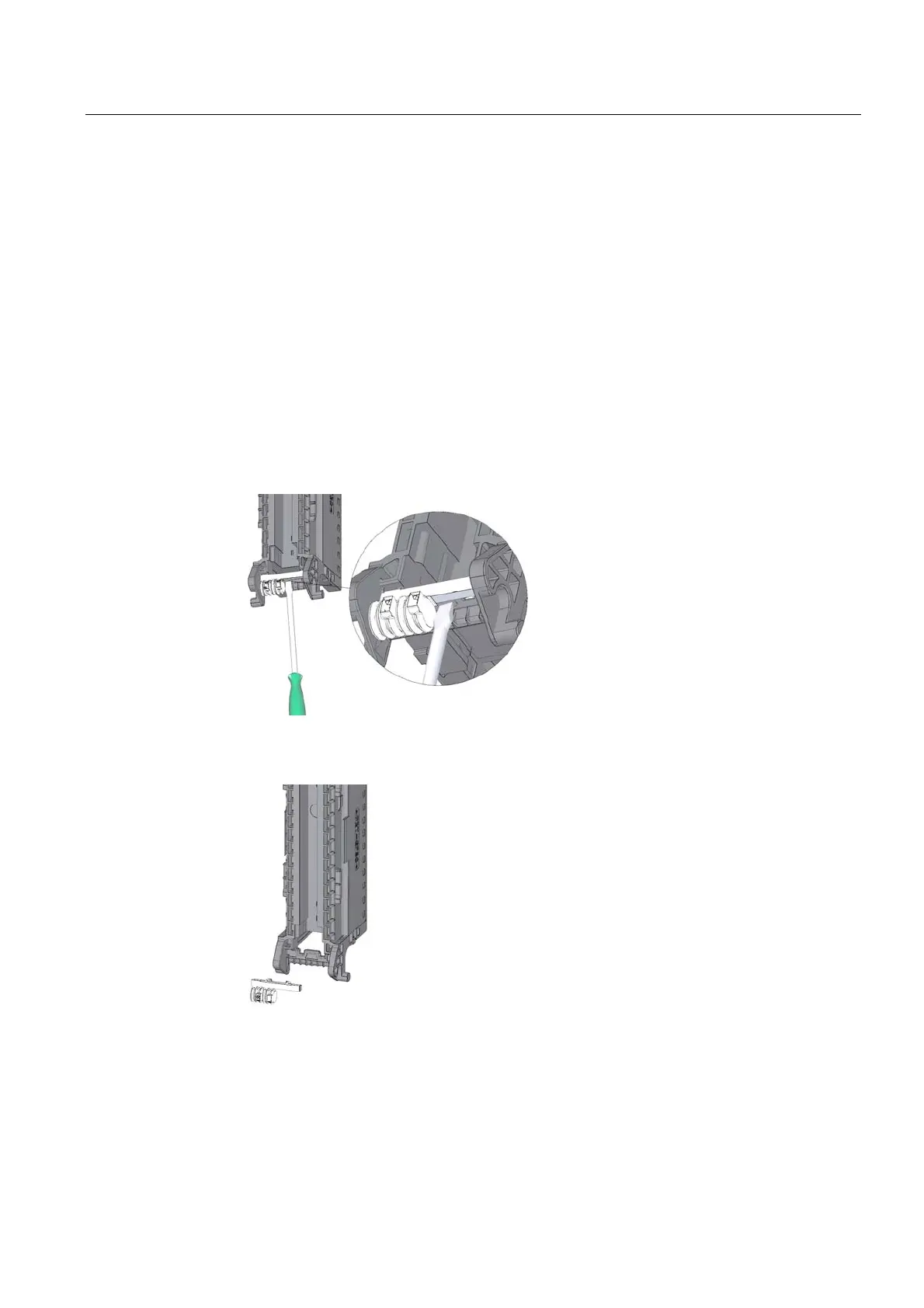

Figure 9-4 Removing the coding element from the front connector
2. Insert the removed coding element into the new front connector.
Figure 9-5 Inserting the coding element into the front connector
3. Insert the new front connector into the existing I/O module, until your hear it click into
place.
4. Wire the new front connector.

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
