Dimension drawings
A.9 Dimension drawing of load power supply, 75 mm wide
S7-1500 Automation System
188 System Manual, 01/2013, A5E03461182-01

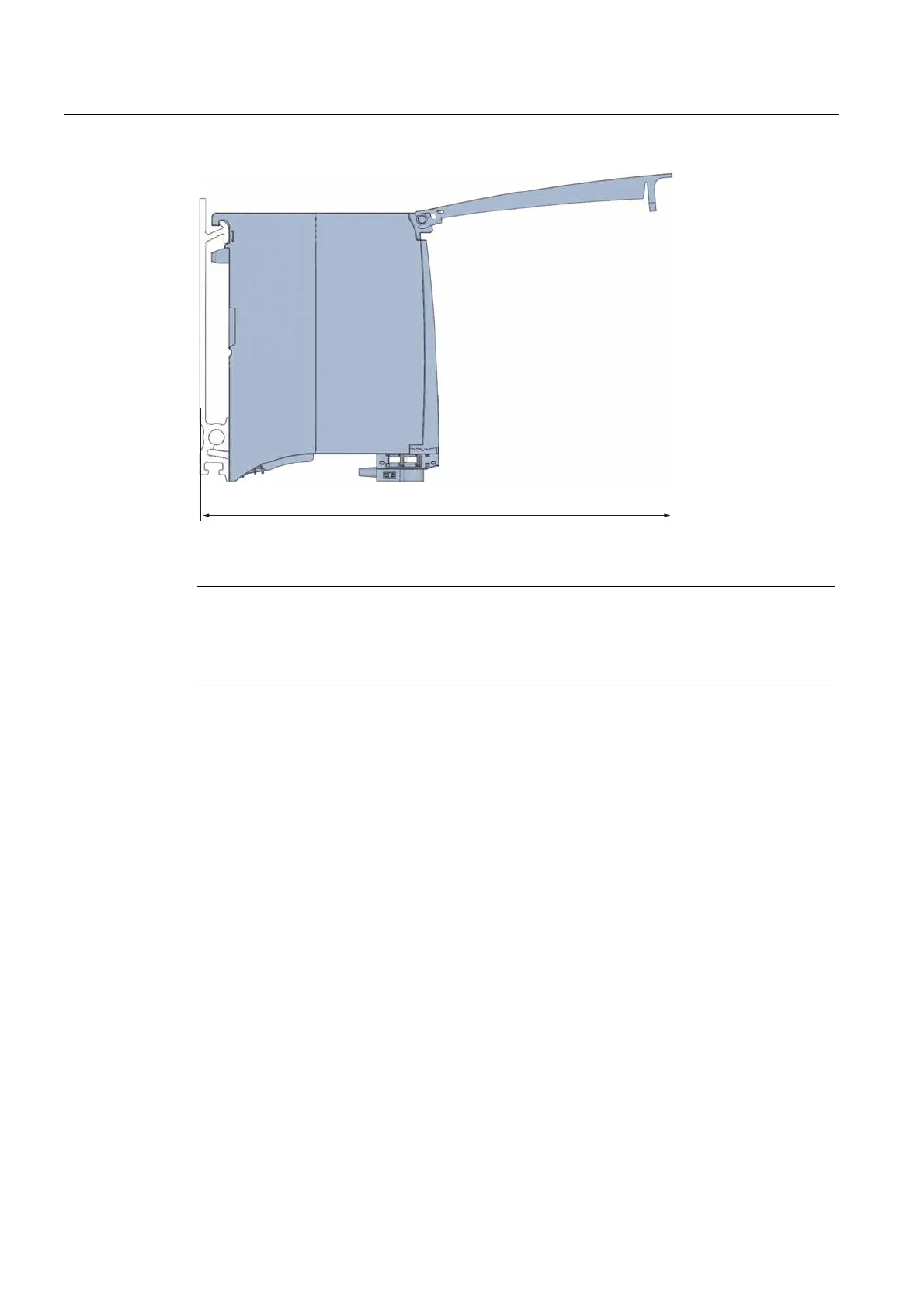

Figure A-21 Dimension drawing of load current supply (75 mm wide), side view with open front cover
Note
Minimum clearances
Observe the minimum clearances of 25 mm, above and below the mounting rail, as
described in the chapterMounting (Page 39).
