Maintenance
9.3 Replacing the coding element at the power connector of the system power and load current supply
S7-1500 Automation System
System Manual, 01/2013, A5E03461182-01
121
Procedure
1. Orient yourself to the labeling on the power cable connection.

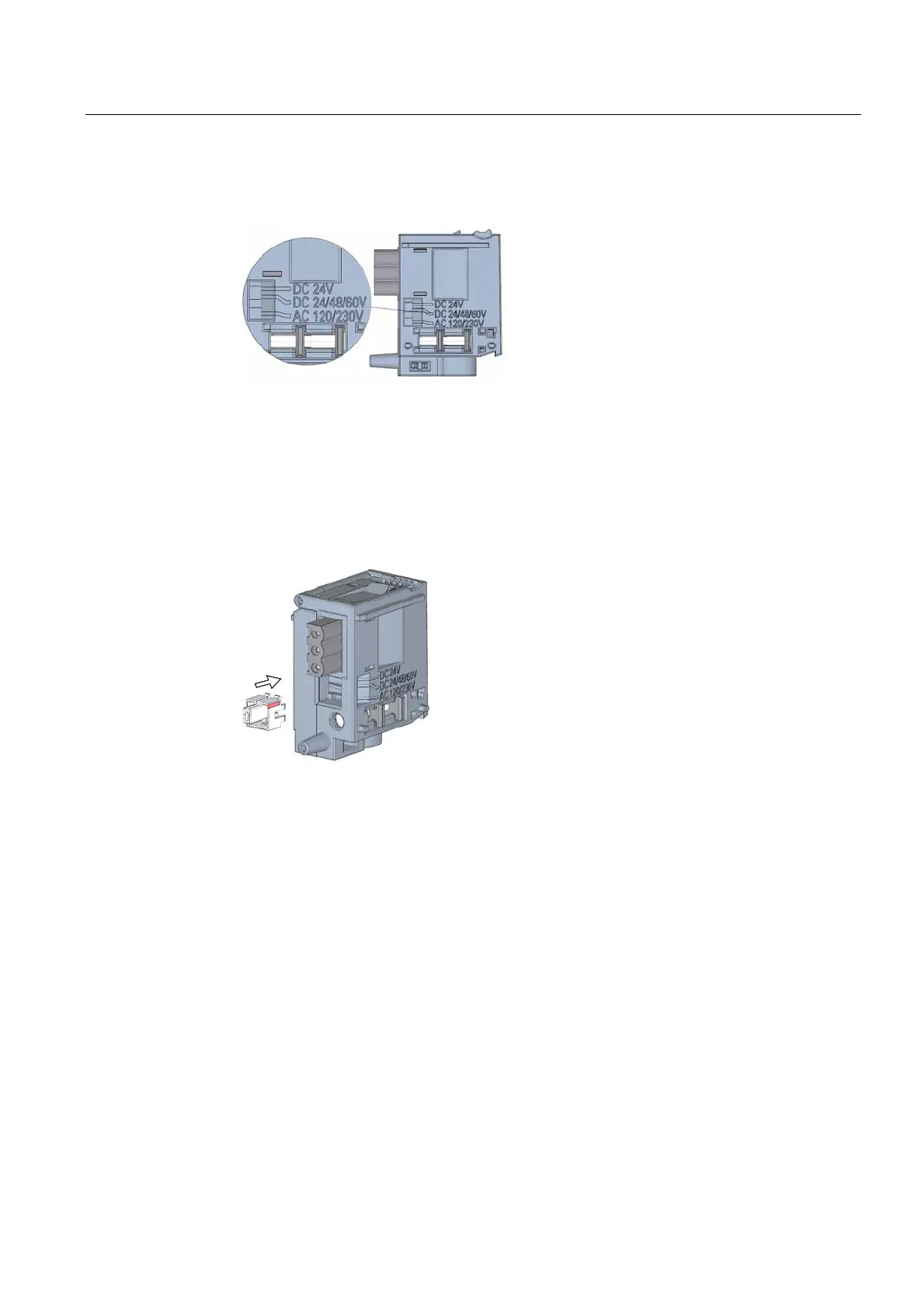

Figure 9-6 Labeling on the power connector
2. Orient yourself to the red marking on the coding element.
3. The coding element has 3 red markings. Turn the coding element in such a way that one
of the 3 red markings corresponds to the voltage indicated on the connector.
4. Insert the coding element into the back side of the power cable connector, until you hear
it click into place. The figure below shows you how to insert a coding element into a
power cable connector for 24 VDC.
Figure 9-7 Inserting a coding element into a power connector
