Dimension drawings
A.5 Dimension drawing of I/O module with shield contact element
S7-1500 Automation System
182 System Manual, 01/2013, A5E03461182-01

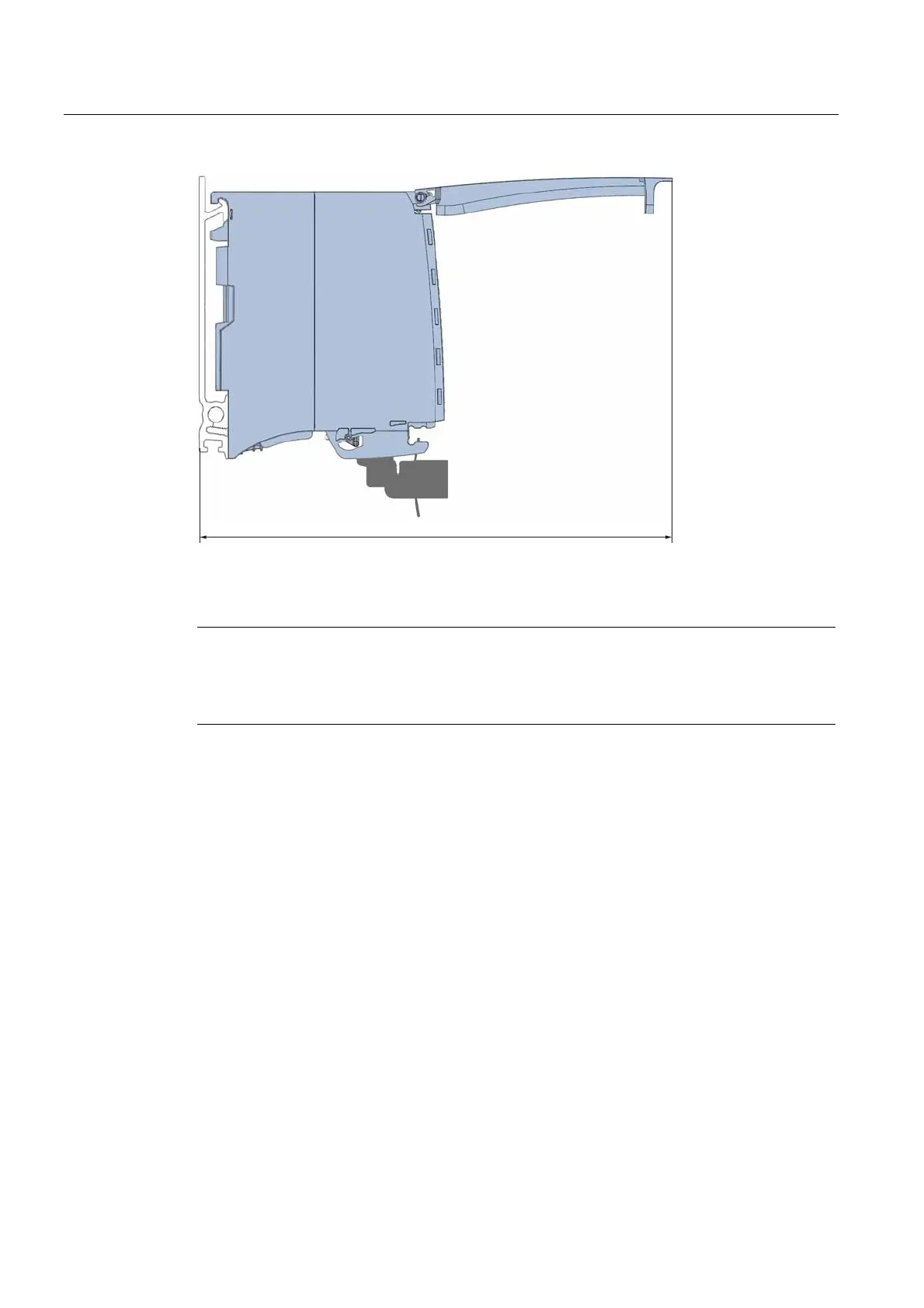

Figure A-13 Dimension drawing of I/O module with shield connection element, side view with open
front cover
Note
Minimum clearances
Observe the minimum clearances of 25 mm, above and below the mounting rail, as
described in the chapterMounting (Page 39).
