Siemens SIMATIC S7-1500 Automation System User Manual

Application planning
4.3 Power balance calculation
S7-1500 Automation System
36 System Manual, 01/2013, A5E03461182-01
Power balance calculation during planning with STEP 7
Compliance with the power balance is reviewed during planning by STEP 7.
Proceed as follows to evaluate the power balance calculation:
1. Configure the configuration of the S7-1500 with all the required modules.
2. In the network view, select the CPU or the system power supply.
3. Open the "Properties" tab in the inspector window.
4. Select the "System power supply" entry in the area navigation.
5. Check the "Power balance calculation" table, so see whether the power balance is
positive. If the power balance is negative, the underpowered modules will be marked in
red.

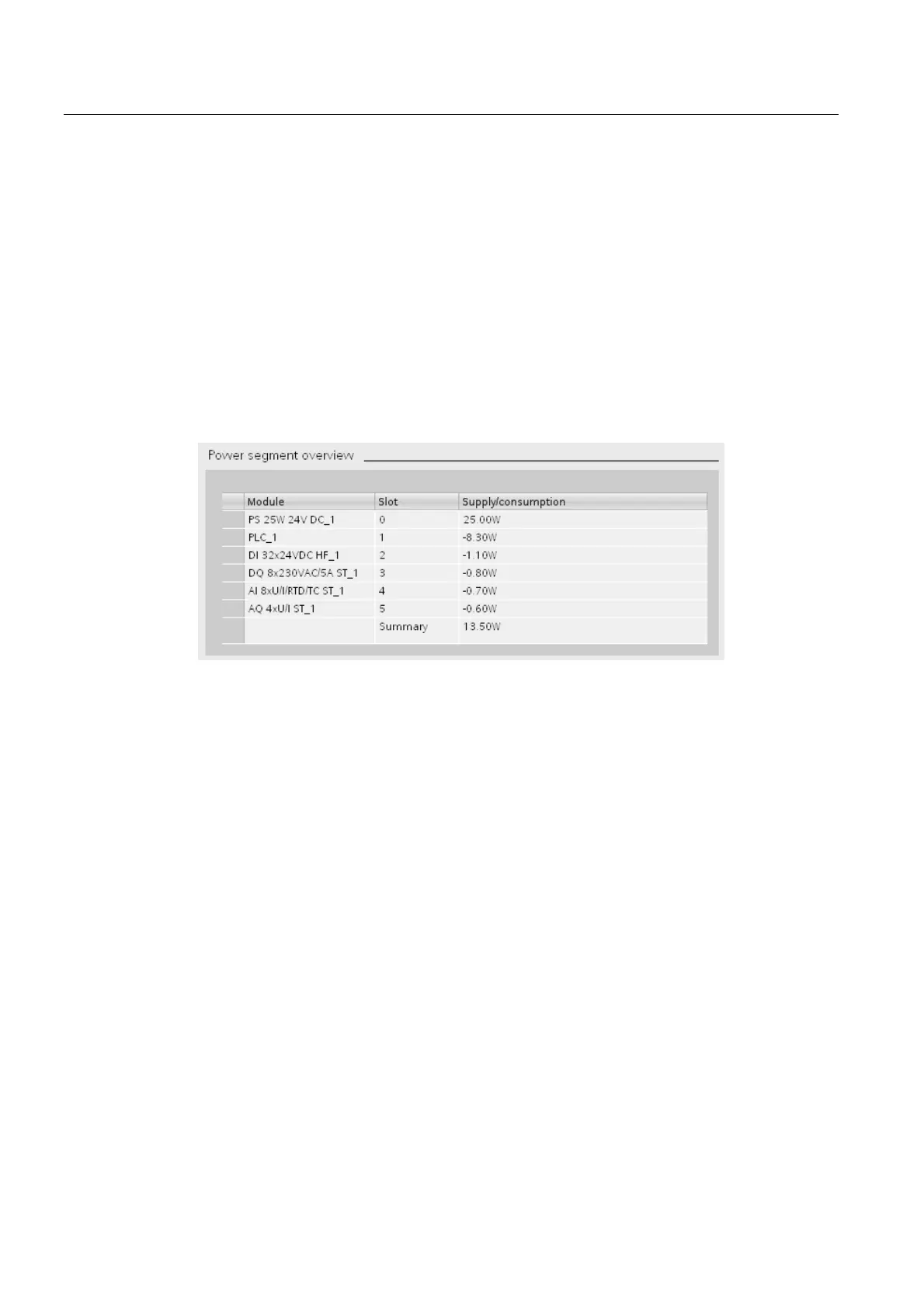

Figure 4-7 Example of a power balance calculation with STEP 7
Power balance check by the CPU for overload
Compliance with a positive power balance is monitored by the CPU:
● At every POWER ON
● At every change of the installed hardware
Causes for overload
An overload can still occur despite a positive power balance during planning. The cause for
overload can be a hardware configuration that does not correspond to the planning in
STEP 7 (TIA Portal), for example:
● More I/O modules are inserted in the actual configuration than were planned
● A system power supply that is necessary for operation is not inserted
● A system power supply that is necessary for operation is not switched on (power cable
connector and on/off switch)
● A system power supply that is necessary for operation has no U connector inserted

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
