Siemens SIMATIC S7-1500 Automation System User Manual

Installation
5.2 Installing the mounting rail
S7-1500 Automation System
42 System Manual, 01/2013, A5E03461182-01

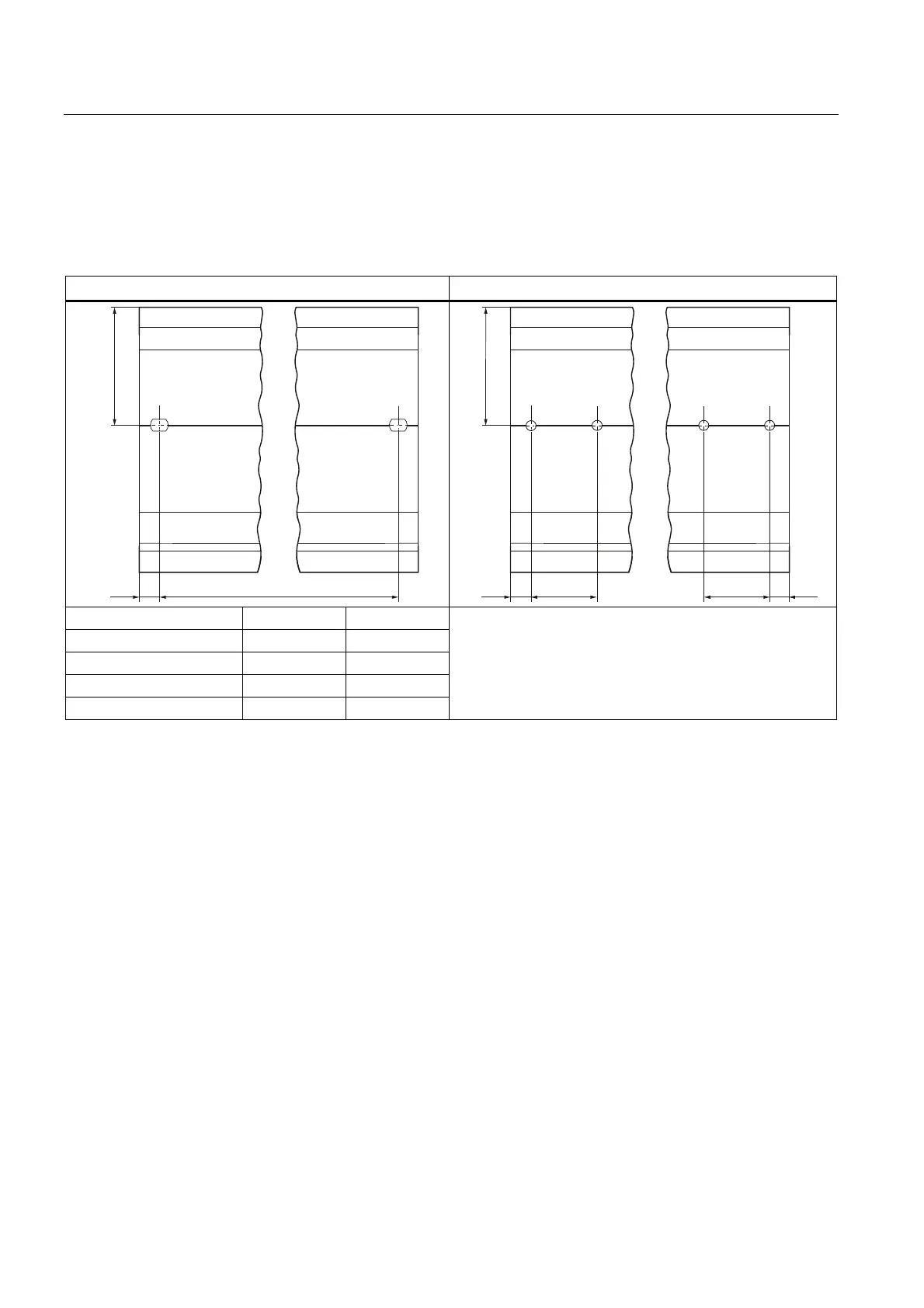

Dimensions for the drill holes
The following table contains the dimensions for the mounting rail drill holes.
Table 5- 2 Dimensions for the drill holes
"Standard" mounting rails "Longer" mounting rails

D
E

 a a
Length of the mounting rail Distance a Distance b
160 mm 10 mm 140 mm
482.6 mm 8.3 mm 466 mm
530 mm 15 mm 500 mm
830 mm 15 mm 800 mm
Additional fixing screws (for mounting rails > 530 mm)
For mounting rails > 530 mm, we recommend setting additional fixing screws at intervals of
≤ 500 mm on the identification groove.

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
