Siemens SIMATIC S7-1500 Automation System User Manual

Installation
5.2 Installing the mounting rail
S7-1500 Automation System
44 System Manual, 01/2013, A5E03461182-01
Attaching the protective conductor
The S7-1500 automation system has to be connected to the protective conductor system of
the electrical system to ensure electrical safety.
1. Strip the grounding conductor with a minimum diameter of 10 mm
2
and attach a ring
terminal for size M6 bolts with the crimping pliers.
2. Slide the enclosed bolt into the T profile groove.
3. Insert the spacer, ring terminal with the grounding connector, flat washer, and lock
washer onto the bolt (in that order). Thread the hexagon head nut, and fasten the
components in place with the nut (torque 4 Nm).
7SURILOHJURRYH

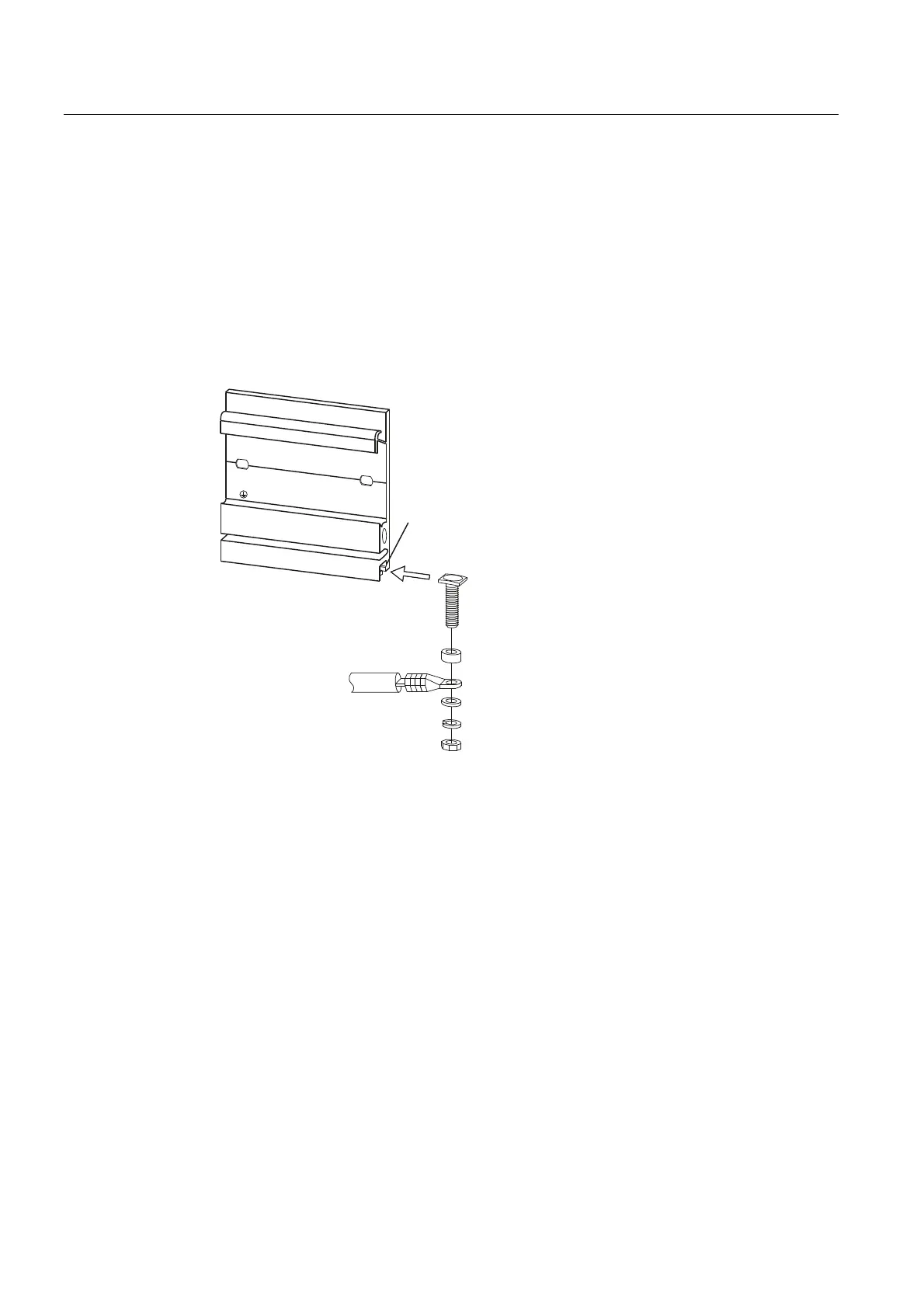

Figure 5-3 Attaching the protective conductor
4. Connect the opposite end of the grounding cable to the central grounding point /
protective conductor busbar (PE).
Reference
Additional information on the precise dimensions of the mounting rails can be found in the
Dimension drawings of the mounting rails (Page 175
) section.

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
