Wiring
6.8 Front connector for the I/O modules
S7-1500 Automation System
72 System Manual, 01/2013, A5E03461182-01
Wiring front connectors for I/O modules with shield contact element
1. Strip the cable shielding.
2. Begin to completely wire the front connector (Figure 1).


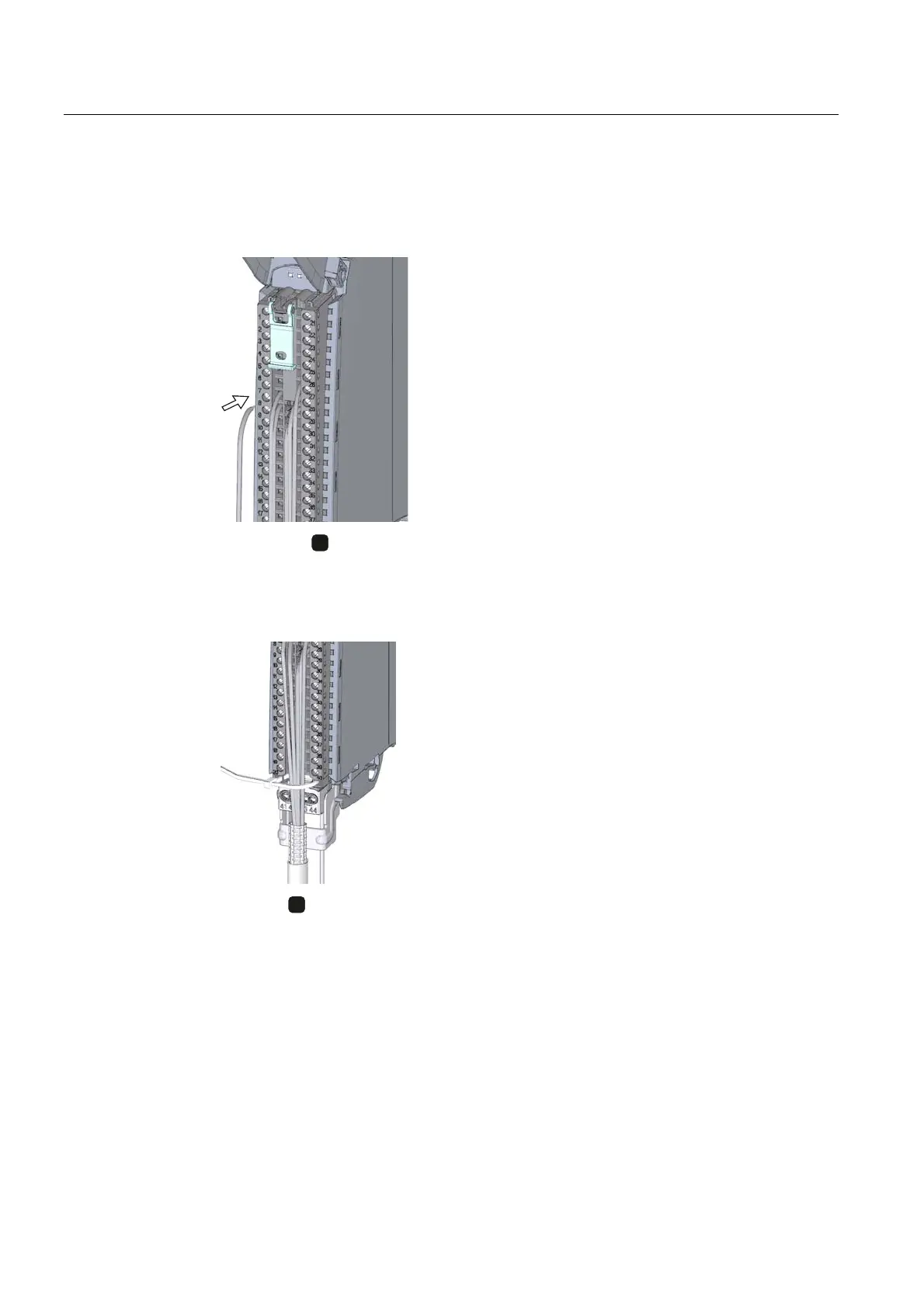

Figure 6-12 Wiring front connectors for I/O modules with shield contact element (1)
3. Put the strain relief (cable tie) around the cable harness, and pull the strain relief for the
cable harness tight (Figure 2).

Figure 6-13 Wiring front connectors for I/O modules with shield contact element (2)

Siemens SIMATIC S7-1500 Automation System Specifications

General

Series	SIMATIC S7-1500
Programming	TIA Portal (Totally Integrated Automation Portal)
Protection Class	IP20
CPU	Various models available (e.g., CPU 1511-1 PN, CPU 1518-4 PN/DP)
Controller Type	Modular Controller
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Communication Interfaces	PROFINET, PROFIBUS, Ethernet, OPC UA
Digital Inputs	Varies by model and expansion modules
Digital Outputs	Varies by model and expansion modules
Analog Inputs	Varies by model and expansion modules
Analog Outputs	Varies by model and expansion modules
Backplane Bus	High-speed backplane bus for fast communication between modules
Redundancy	Supported with specific models and configurations
Safety	Integrated safety functions available
Scalability	Highly scalable with modular expansion
Operating Temperature	0°C to 60°C
