Reading out the configuration of an existing station
When a connection exists to a CPU, you can load the configuration of this CPU (including
possibly present modules) from the device into your project.
To do this, create a new project and configure an "Unspecified CPU".

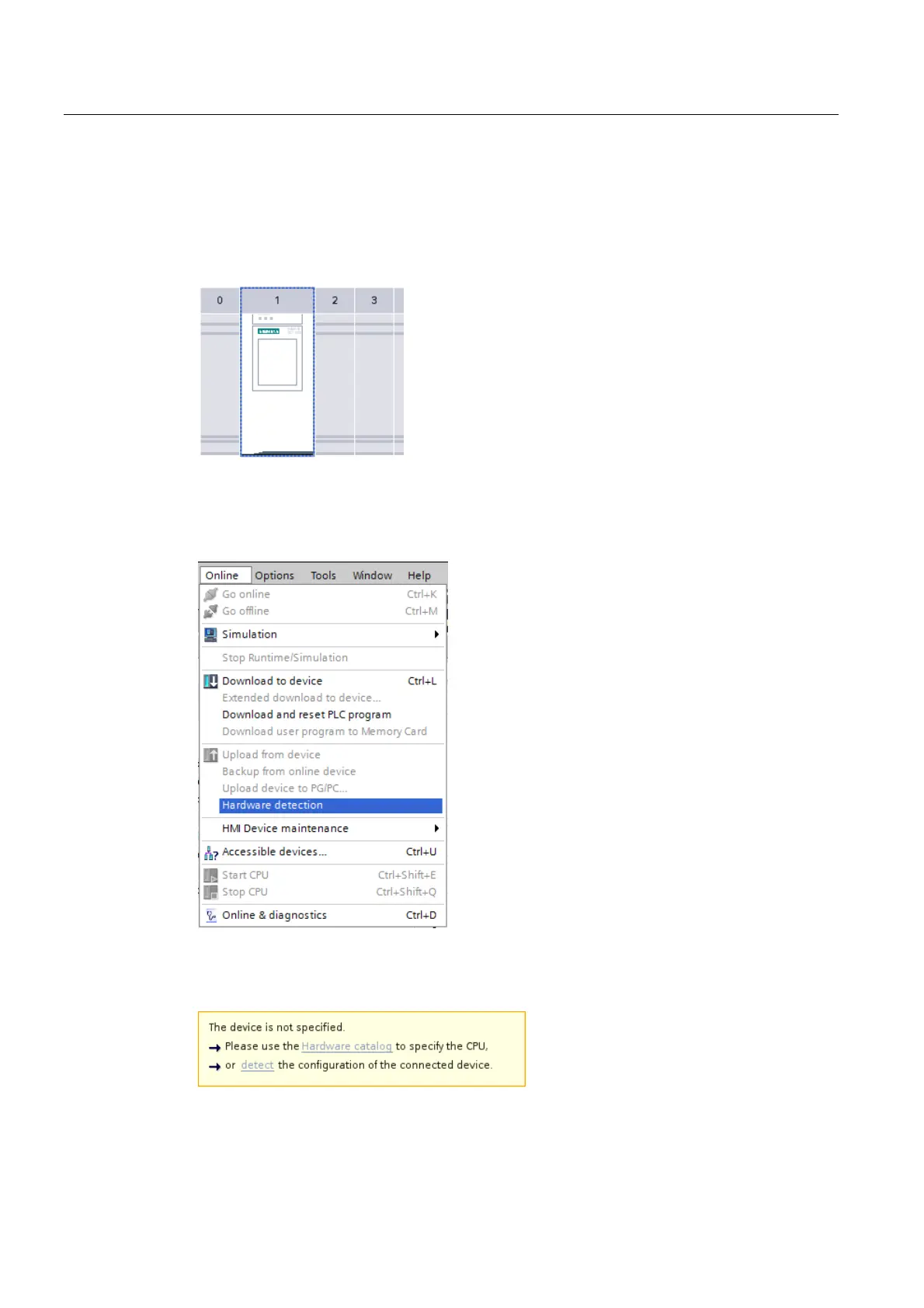

Figure 7-1 Unspecified S7-1500 CPU in the device view
In the device view (or in the network view), select the "Hardware detection" command in the
"Online" menu.
Figure 7-2 Hardware detection in the Online menu
Or double-click the CPU and click "detect" in the alarm .
Figure 7-3 Alarm for hardware detection in the device view
