7. Tighten the special screw with a torque of 2 Nm.

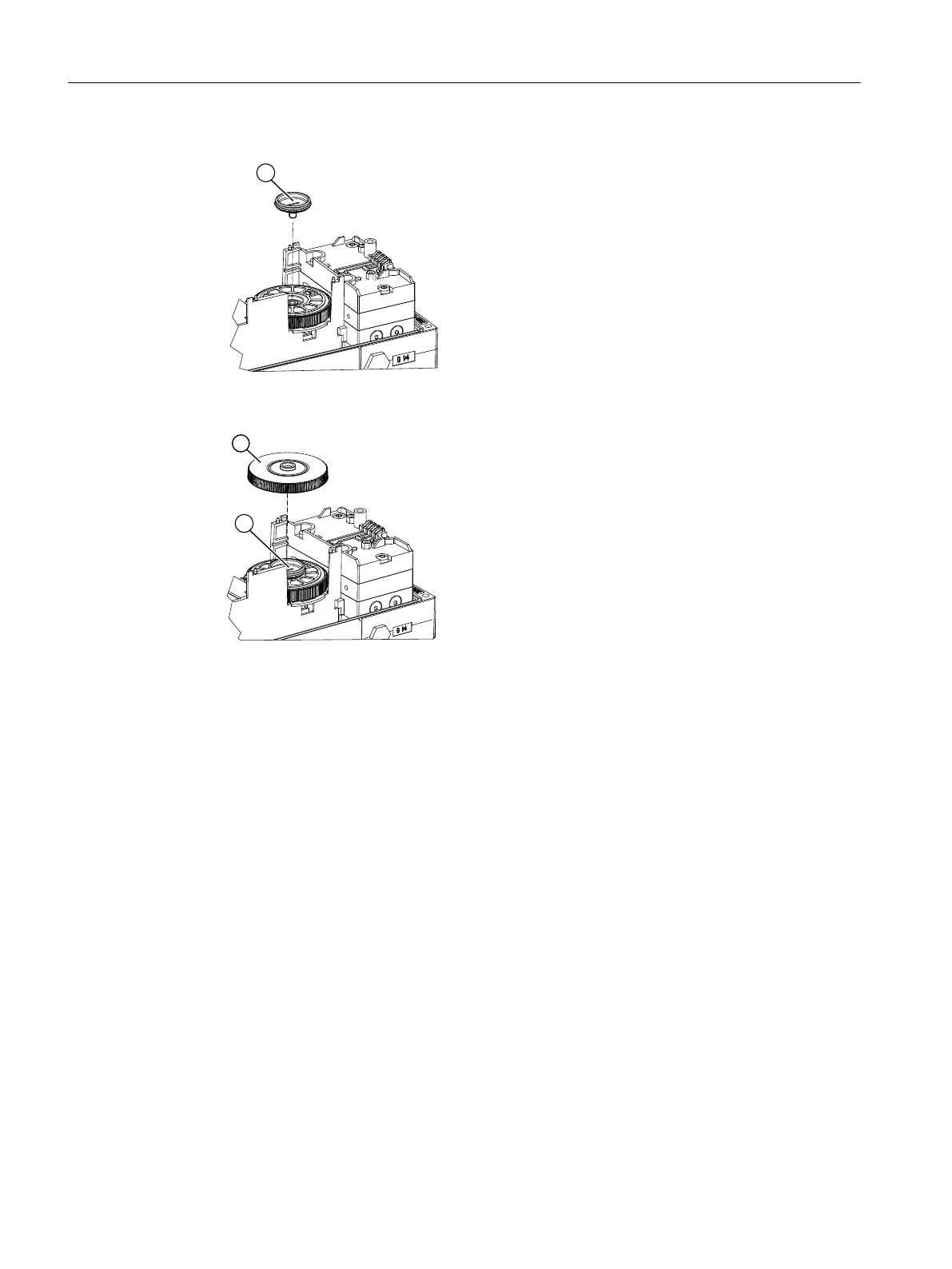

8. Press the adjustment wheel of the magnet clamp ④ firmly onto the special screw ⑥ of the
friction clutch until you clearly hear it click into place.
Installing the internal NCS module
1. Position the ribbon cable ③ of the internal NCS module ① on the top before you slide the
internal NCS module into the rack.
2. Slide the internal NCS module ① under the basic electronics into the rack until you hear it
click into place.
3. An insulating cover (yellow) is required over the module. This insulating cover is supplied
with the module. Place the insulating cover ② on one side under the basic electronics seat
of the rack. The recesses of the insulating cover must fit in the corresponding webs of the
rack.
4. To tighten the insulating cover, bend the walls of the adapter slightly outwards.
5. Firmly press the other end until the insulating cover is underneath the contact surface of the
basic electronics. The recesses of the insulating cover must fit in the corresponding webs
of the rack.
Installing the basic electronics and closing the positioner
1. Place the basic electronics onto the four holders of the rack.
2. Tighten the two fixing screws of the basic electronics.
3. Tighten the screws.
Installing/mounting
4.5 Installing the optional modules
SIPART PS2 with PROFIBUS PA
72 Operating Instructions, 05/2019, A5E00127926-AC
