Description

3.2 OXYMAT 7

Operating with the Local User Interface

22 Operating Manual, 06/2017, A5E31930478-05

3.2.2

Functional principles

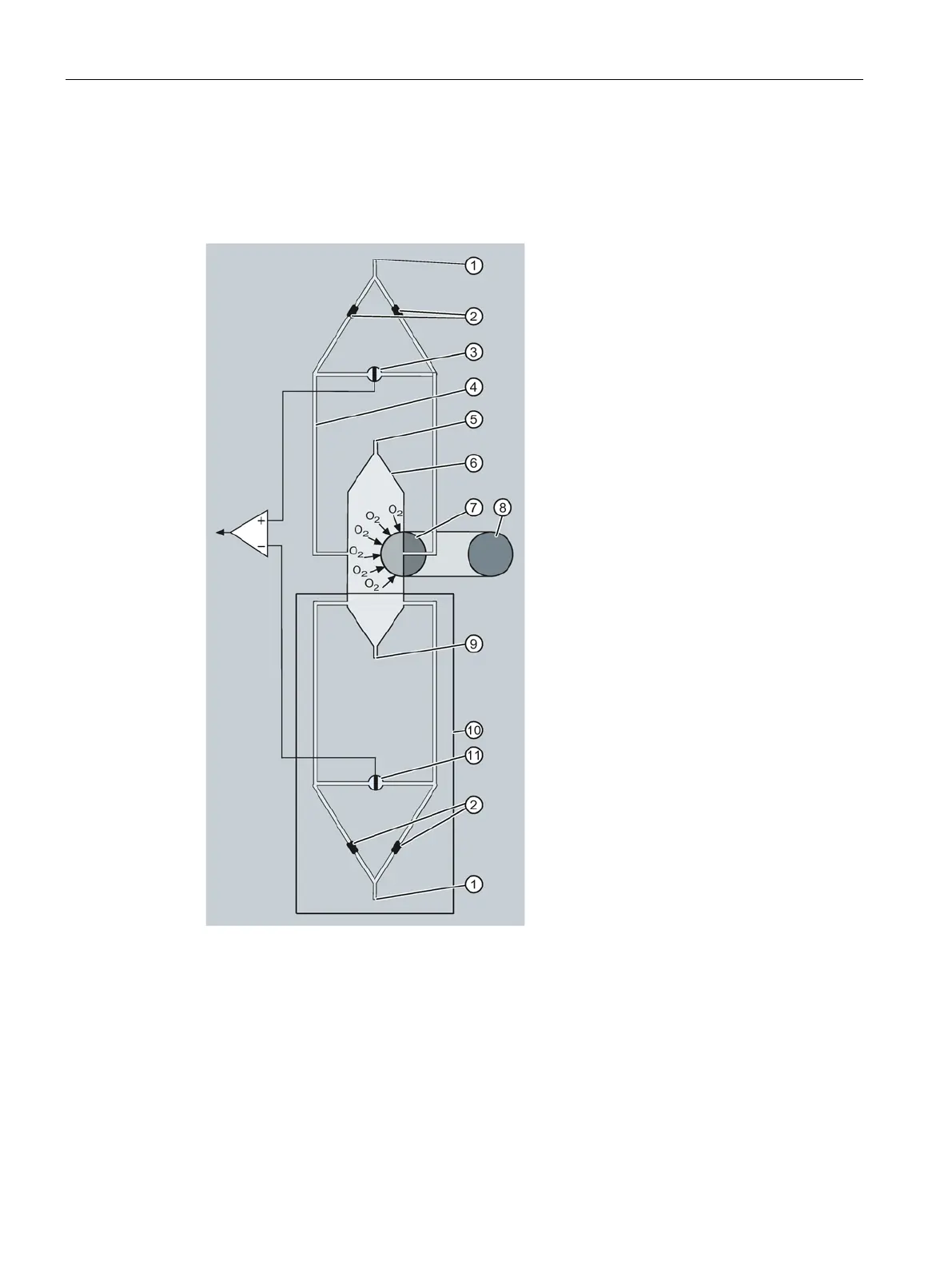

Overview

①

Reference gas inlet

⑦

Paramagnetic measurement effect

②

Restrictors

⑧

Electromagnet with alternating current strength

③

Microflow sensor

⑨

Sample gas and reference gas outlet

④

Reference gas channels

⑩

Vibration compensation system (optional)

⑤

Sample gas inlet

⑪

Microflow sensor in the vibration compensation system

(flow-type)

⑥

Sample chamber

Figure 3-2 Principle of operation of OXYMAT 7
