Operating with the Local User Interface
Operating Manual, 06/2017, A5E31930478-05
51
Operation
4
4.1
Local User Interface (LUI)
Operating elements
The LUI (Local User Interface) of the SIPROCESS GA700 devices has the following
operating elements:
Local user interface
Numeric keypad
Display
Cursor and command keys
Buttons for special functions
HELP and UNDO keys

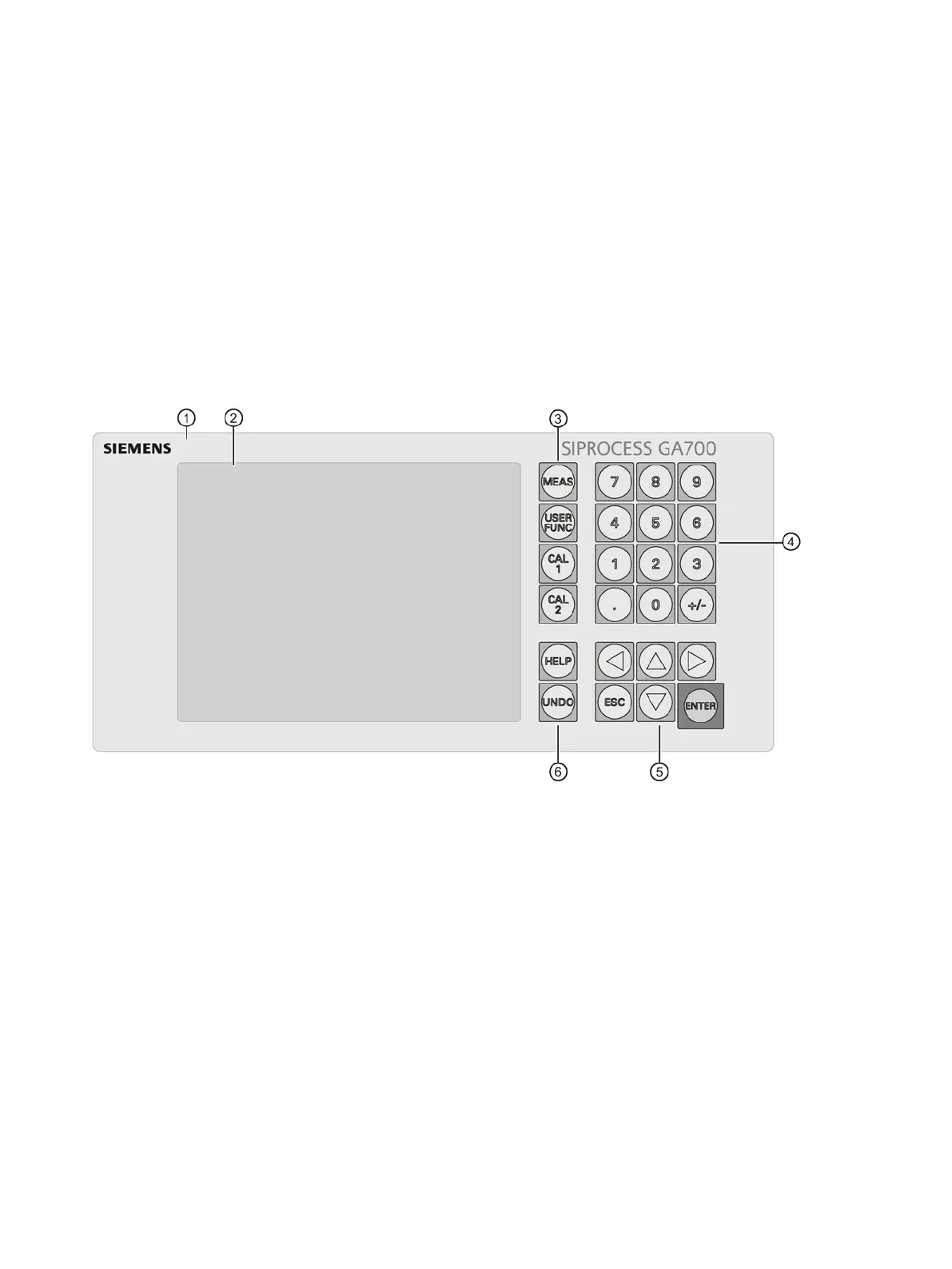

Figure 4-1 Local User Interface (LUI)
