Siemens SIPROCESS GA700 - Conditions for Use;Installation

Description
3.6 Combined operation
Operating with the Local User Interface
40 Operating Manual, 06/2017, A5E31930478-05
3.6.3.3
Conditions for use/installation
Overview of mounting position
①
Gas connection before installation of sample gas restrictor or clamping screw
②
Gas connection after installation of sample gas restrictor or clamping screw
③
Rear clamp ring
④
Front clamp ring
⑤
Union nut
⑥
Sample gas restrictor or clamping screw
⑦
Gas connection
⑧
Correctly installed gas connection
⑨
Gas connection nozzle with sample gas restrictor or clamping screw

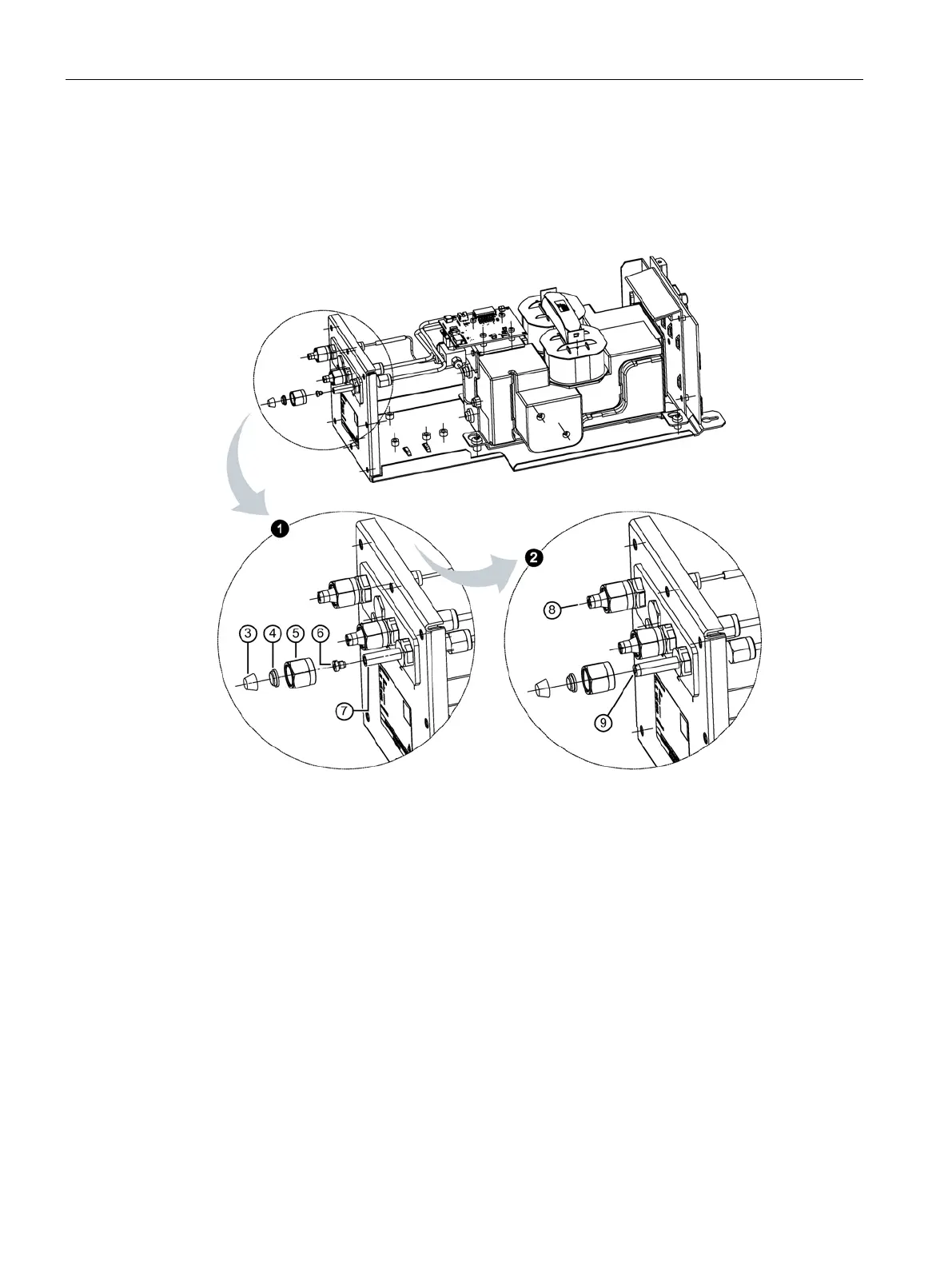

Figure 3-10 Mounting position sample gas restrictor or clamping screw
