Sequence of a calibration/validation
Overview
When you start the calibration, a wizard is started that guides you through calibration.
Depending on the type of calibration selected, the wizard includes the following steps:

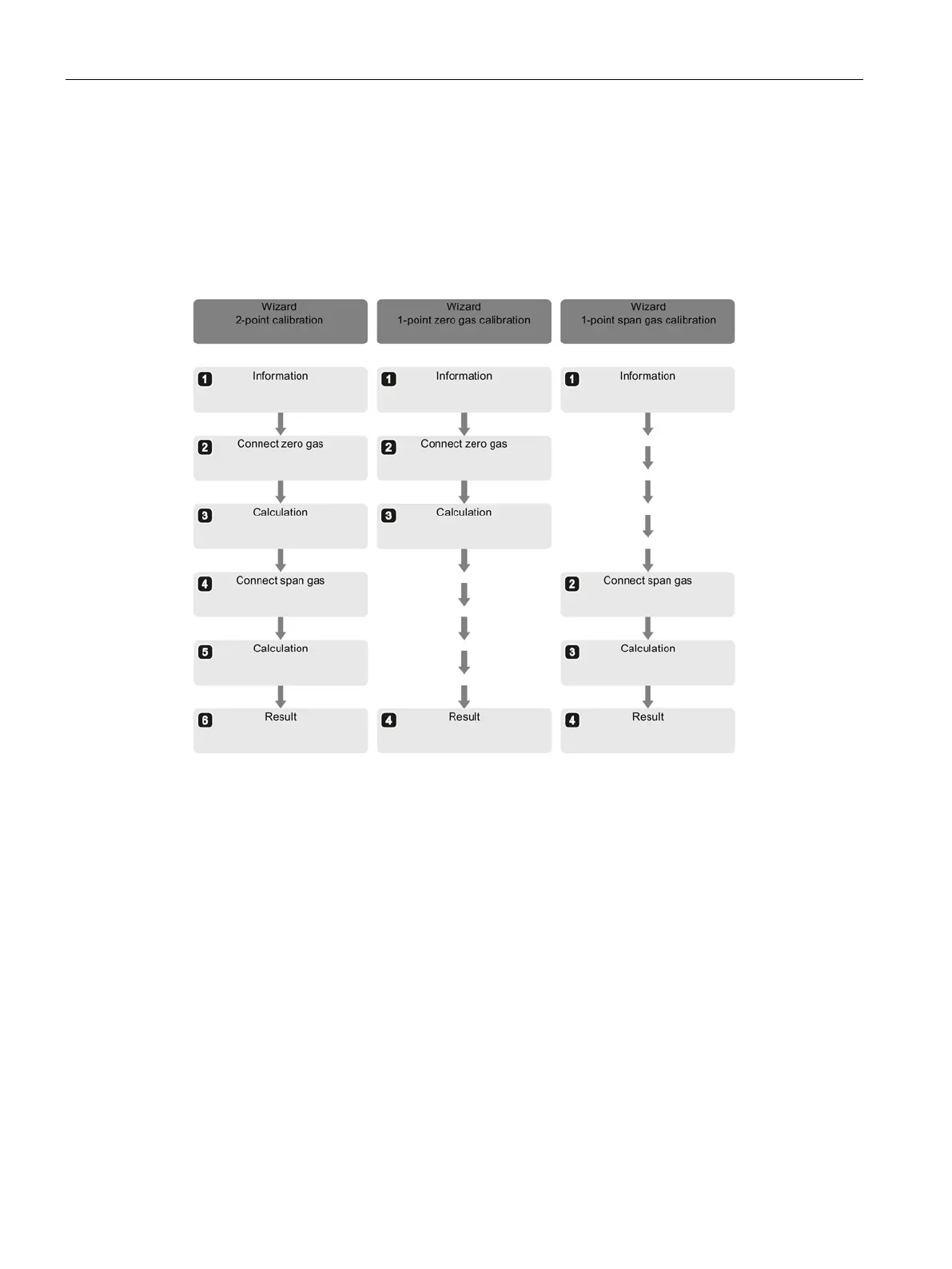

Figure 6-2 Steps during calibration
Step 1: Information about the current calibration ("Info")
Once the wizard has started, an information window is displayed.
With all types of calibration, the wizard gives an overview about the settings of the current
calibration in step 1 "Info". If you need to change your settings, you can abort the sequence
of the wizard at this point.
The device remains in "Measurement" operating state until you continue the wizard.
Steps 2, 4: Connect zero gas / Connect span gas
When the gas is connected, the device changes to the "Calibration" operating state.
Any assigned external solenoid valves for the zero gas or span gas are switched according
to the parameter assignment of the digital outputs.
If you do not use a gas connection controlled by external solenoid valves, the wizard
prompts you to connect the respective gas manually.
