Siemens SIPROCESS GA700 - ULTRAMAT 7

Description
3.3 ULTRAMAT 7
Operating with the Local User Interface
24 Operating Manual, 06/2017, A5E31930478-05
3.3
ULTRAMAT 7
3.3.1
Design
Overview
①
Sample gas inlet
⑤
Heat sink
②
Sample gas outlet
⑥
CAN connection
③
Reference gas outlet
⑦
Power supply
④
Reference gas inlet
⑧
Analog interface

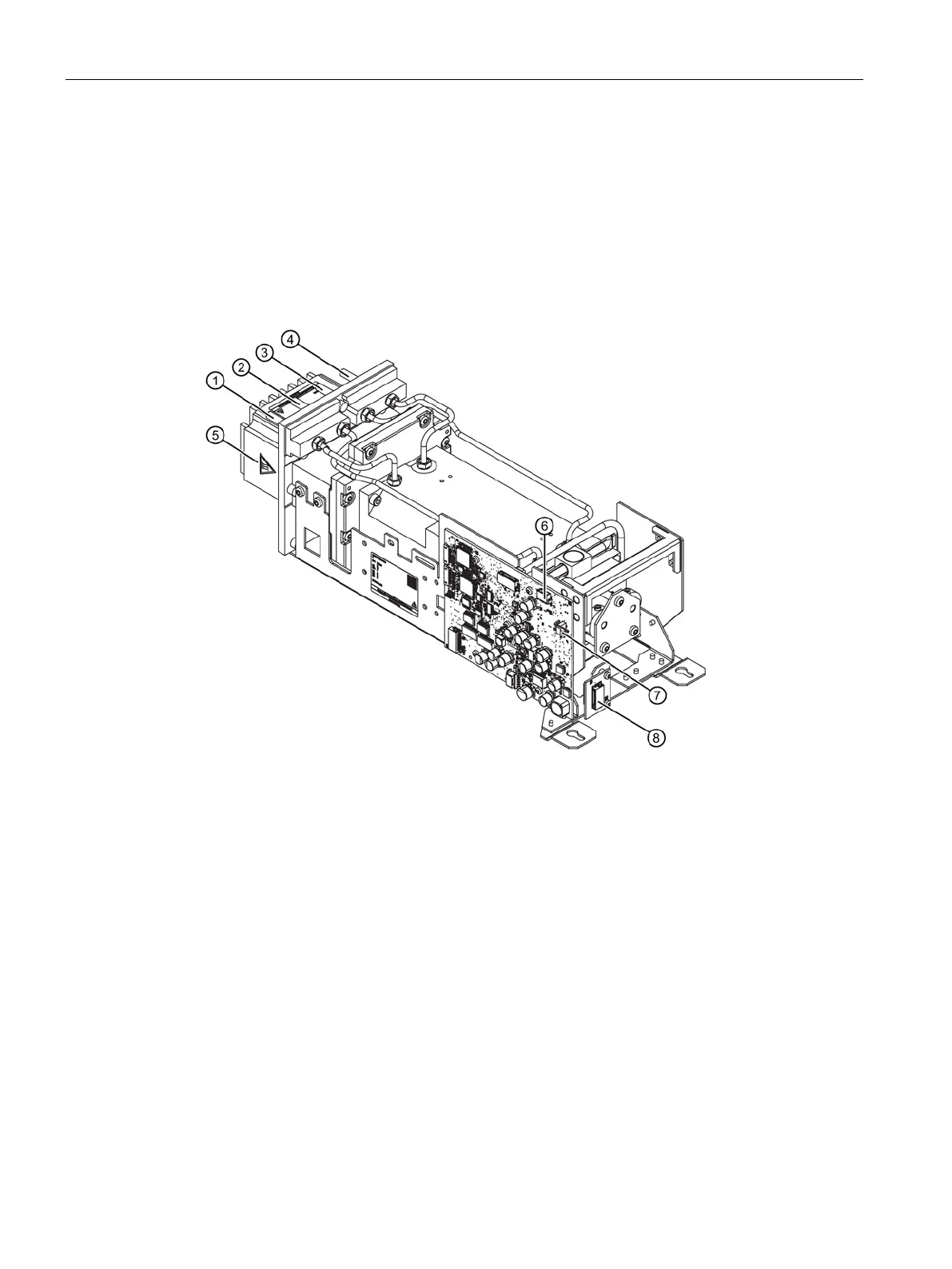

Figure 3-3 Example: Design of ULTRAMAT 7, measurement and reference gas path with pipes
