3.6 Combined operation

Operating with the Local User Interface

Operating Manual, 06/2017, A5E31930478-05

①

Sample gas restrictor

②

Clamping screw

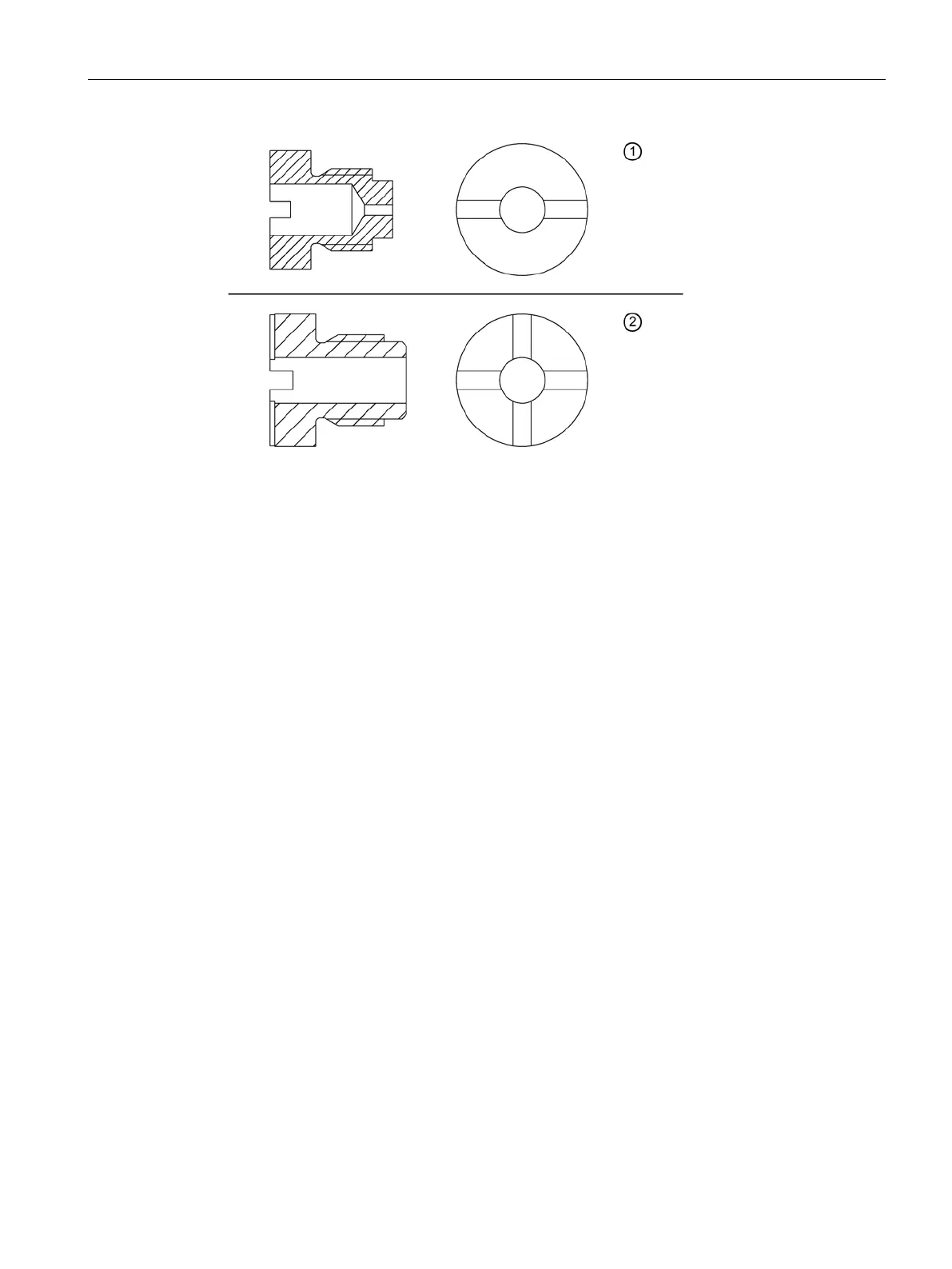

Figure 3-9 Distinction between sample gas restrictor and clamping screw, sectional drawing and

view from above
