Operation
4.3 Display
Operating with the Local User Interface
62 Operating Manual, 06/2017, A5E31930478-05

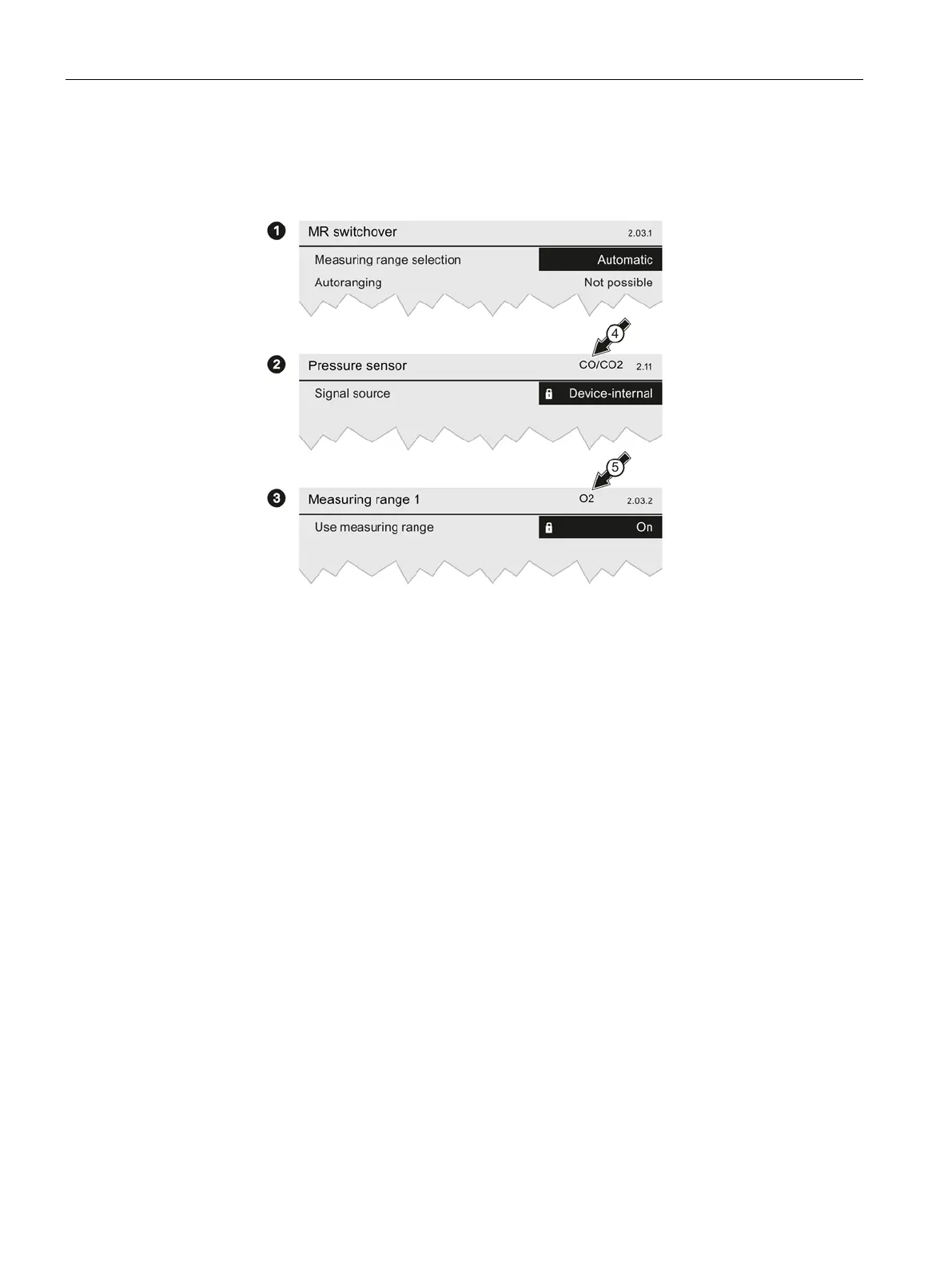

Figure 4-6 Example of headers in parameter view
The header in the parameter view always includes the menu name and the corresponding
menu or order number. You can also read out the scope of the menu:
●
① Menu/parameter with effect on entire device:
The header only includes the menu name/parameter name as well as the corresponding
order number. Any changed settings also apply to all other components.
●
② Menu/parameter with module-specific effect:
In addition to the menu name/parameter name and the order number, the component
identification
④ (here: CO/CO
2
) is displayed. Any changed settings also apply to all
components of a module.
●
③ Menu/parameter with component-specific effect:
Changes only have an effect on the component
⑤ (here: O
2
) whose parameters you are
currently assigning. Corresponding function(s) for further components must therefore
always be set separately.
