Operation
4.3 Display
Operating with the Local User Interface
Operating Manual, 06/2017, A5E31930478-05
69
In parameter view you can display device parameters, set device parameters, and start
wizards.
When you open the parameter view, the first editable parameter is always selected. Editable
parameters are highlighted with a black background when you select them.
The values of output parameters, for example, "Autoranging" are only framed.
The label of the parameter is indented to indicate that the parameter belongs to another
parameter or to a parameter group.
A parameter that cannot currently be edited due to a missing access authorization is
identified with a lock symbol
â‘ within the parameter field:

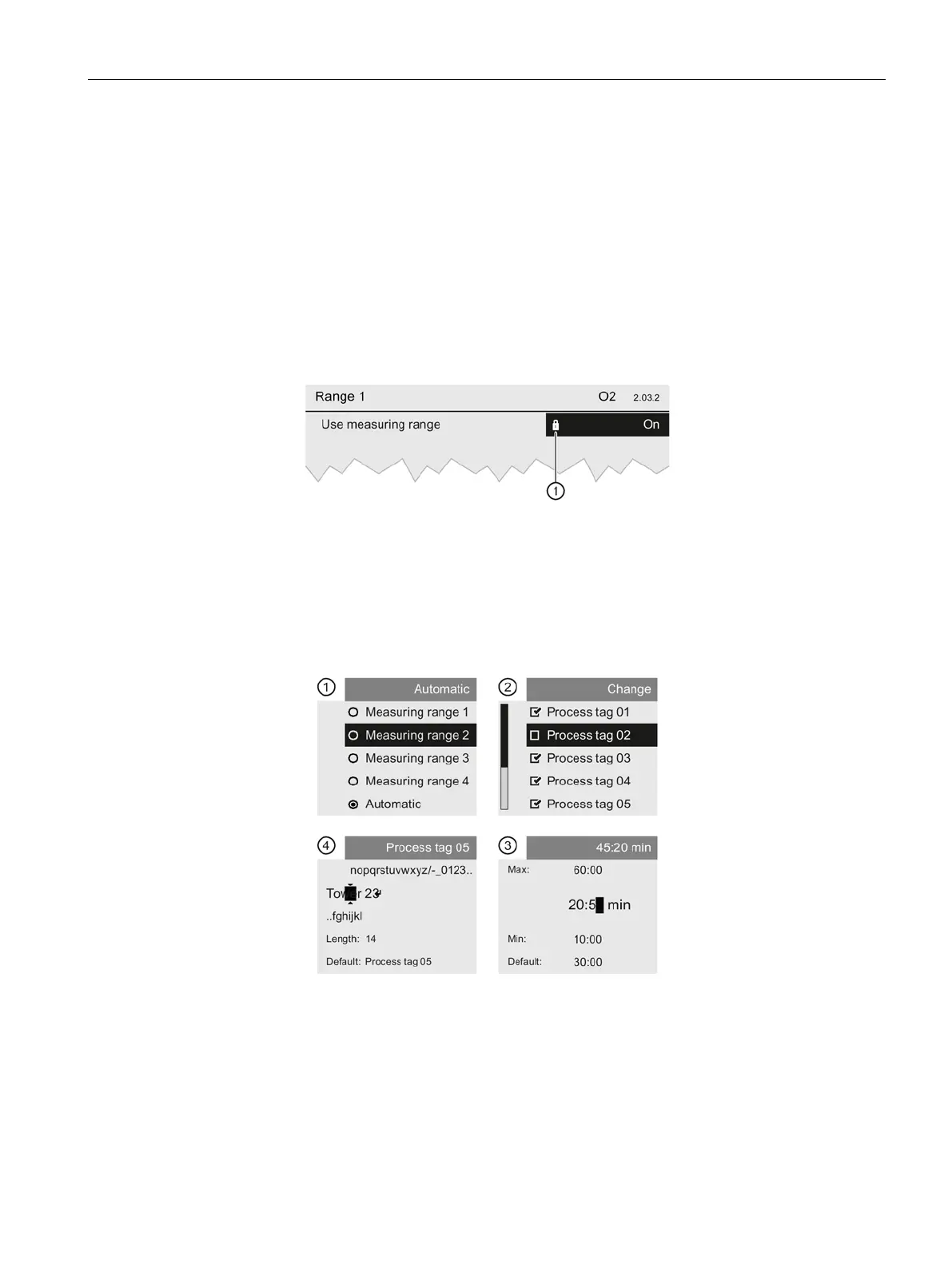

Figure 4-17 Example: Write-protected parameter
Windows open to display progress, for messaging, and especially for editing of parameters.
The figure below shows examples of frequently displayed editing windows:
Editing window for list selection (1 of N, single selection)
Editing window for list selection (M of N, multiple selection)
Editing window for input of numerical parameters
Editing window for text parameters
Figure 4-18 Examples: Editing window
