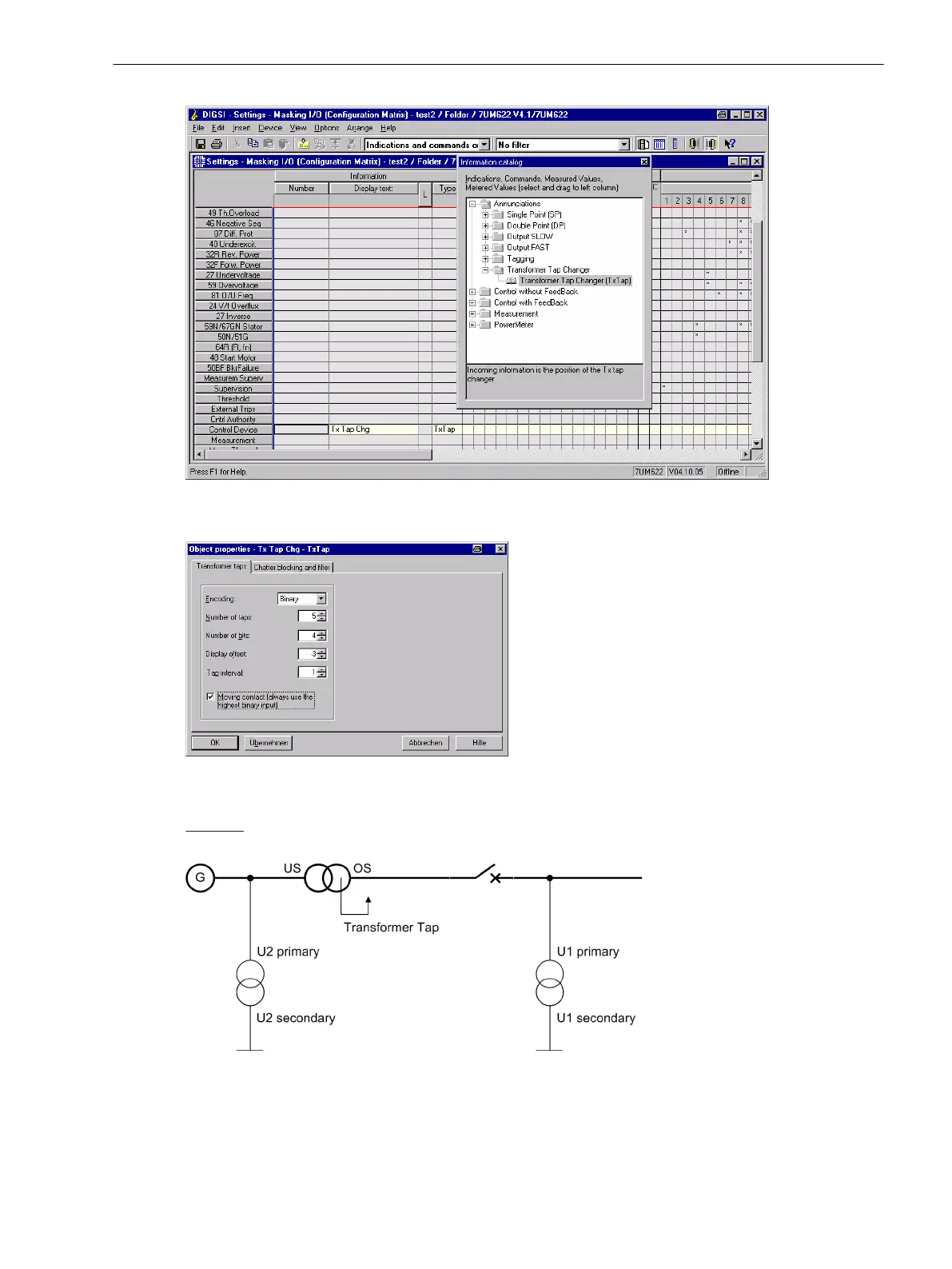

Figure 2-36 Example of Matrix and Information Catalogue
[ve6-objekteigenschaften-trafostufe-170303-kn, 1, en_GB]
Figure 2-37 Setting examples of object properties of a transformer tap indication
Example:
[darstellung-trafostufenschaltung-100403-kn, 1, en_GB]
Figure 2-38 Synchronisation via a transformer
Consider a transformer as shown in the Figure above with the following data
Primary rated voltage U1
525.00 kV
Functions
2.2 Paralleling Functions
SIPROTEC 4, 7VE61 and 7VE63, Manual 71
C53000-G1176-C163-3, Edition 10.2017
