Siemens TIM 1531 IRC User Manual

Block library TeleControl ST7
5.7 Master copies
TIM 1531 IRC
Operating Instructions, 02/2018, C79000-G8976-C468-02
159
Explanation:
Smoothing factor
Using the smoothing factor, quickly fluctuating analog values can be
smoothed to a greater or lesse
r extent depending on the factor. This may al-
low a narrower threshold band to be selected (ThresholdValue).
The smoothing factors are identical to the smoothing factors that are confi
g-

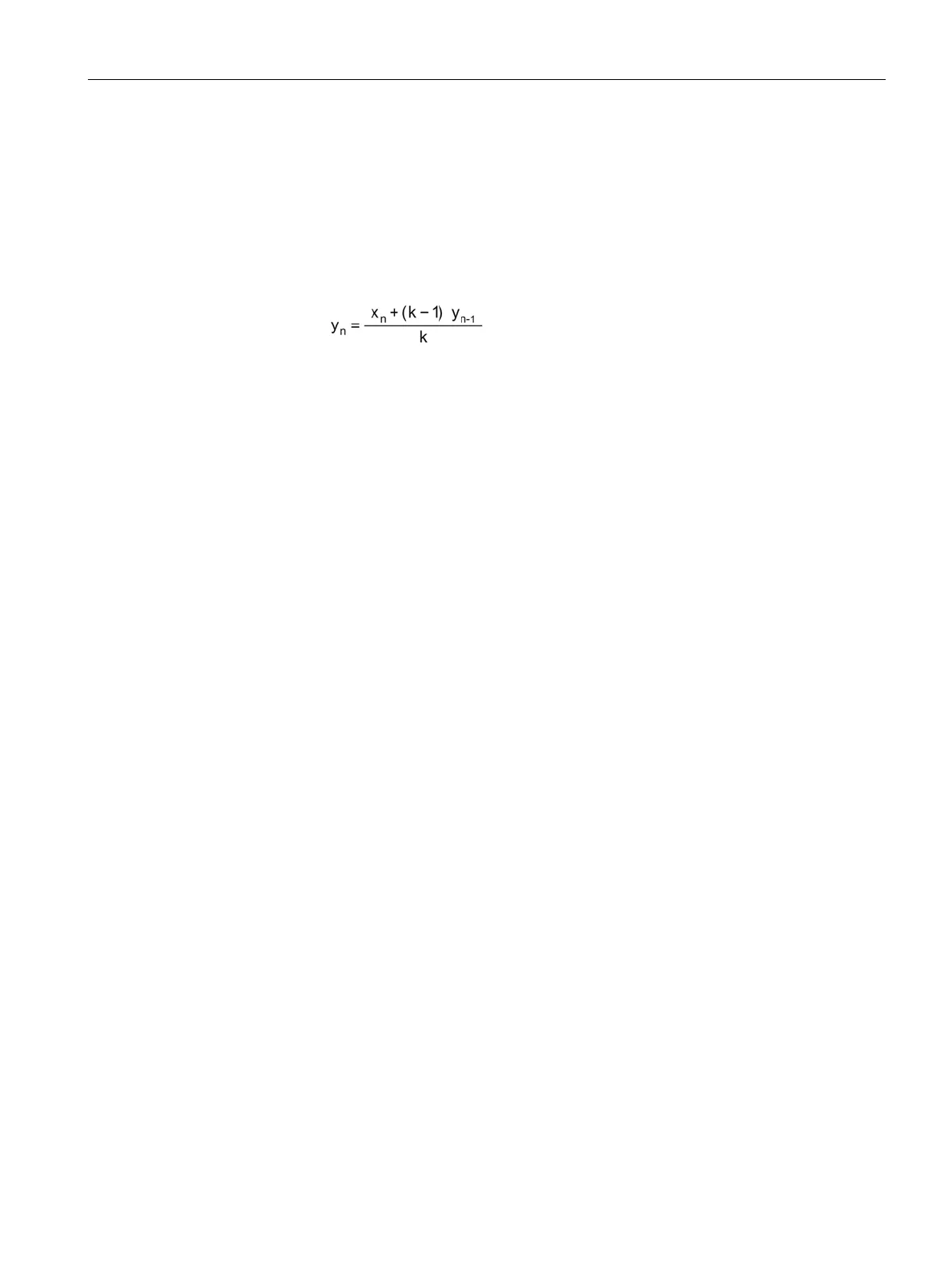

ured for some S7 analog input modules. The smoothing is calculated using
the same formula as on the input module:
y
n
= smoothed value in the current cycle n
y
n-1
= smoothed value in previous cycle n-1
x
n
= acquired value in the current cycle n
k = smoothing factor
5.7.1.5
Analog value typical Ana04R_R
Validity
S7-1500 only
Function
Receive 4 analog values as 32-bit floating-point number
Parameter
Parameter:
PartnerNo
PartnerObjectNo
Enabled
For a description, see section Reoccurring parameters (Page 144).
Parameter:
AnalogOutput_1 … _4
Declaration:
OUTPUT
Data type
REAL
Range of
values:
See address range
Default:
0.0
Addre
ss
range:
Bit memory address
MD0 ... MDn
Data address
LD0 ... LDn
DBm.DBD0 ... DBDn
Explanation:
You can select where the individual analog values received by the FB are
output. Addresses of a data block and in the bit memory address area can be
mixed
as required.
If you do not require parameters, simply leave them open.
