TIM 1531 IRC
Operating Instructions, 02/2018, C79000-G8976-C468-02
301
Dimension drawings
A
All dimensions in the dimension drawings are in millimeters.

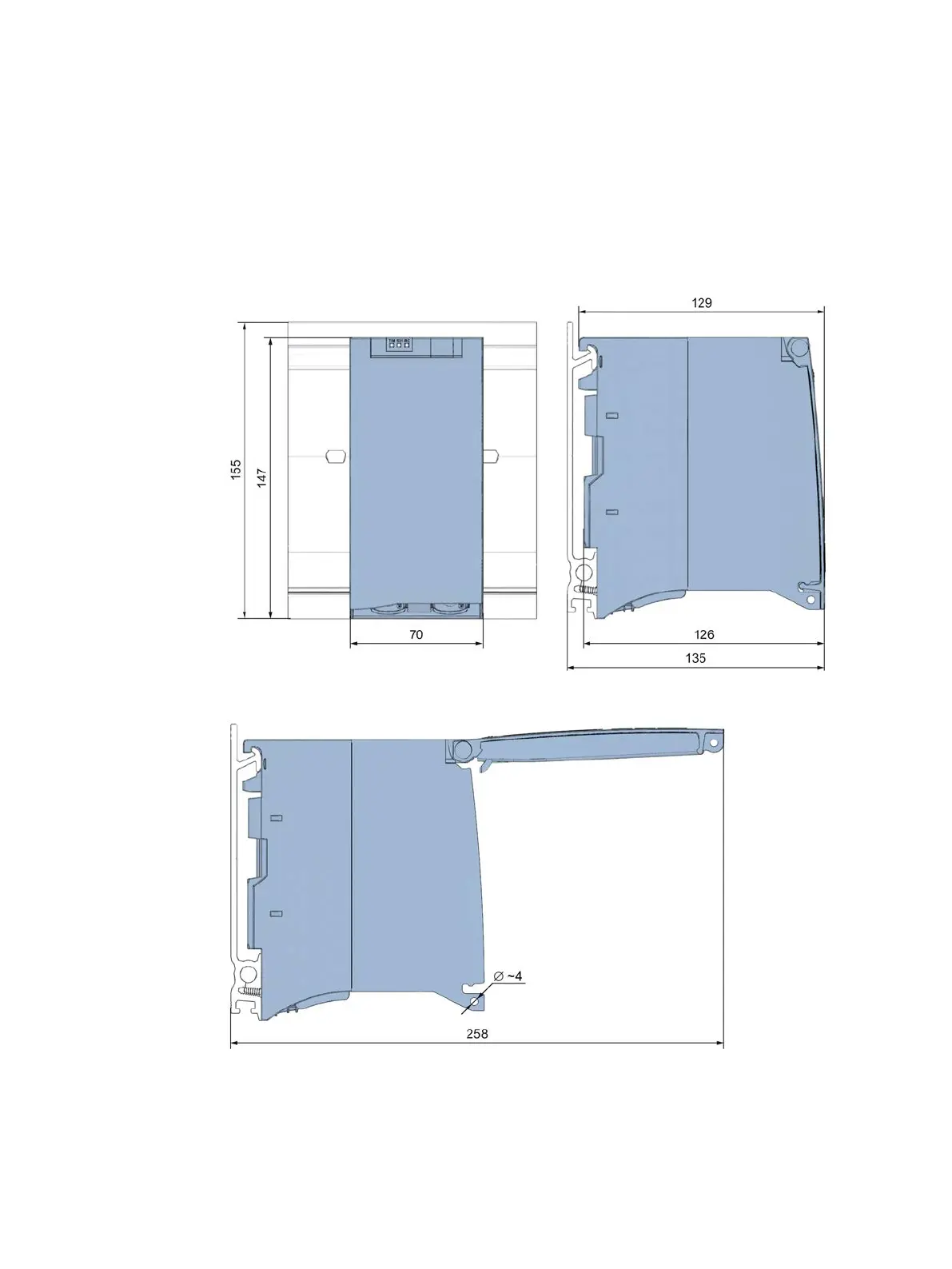

Figure A-1 TIM 1531 IRC: Front view and side view
Figure A-2 TIM 1531 IRC: Side view with cover open
