STEP 7 V5 configuration of the proxy
C.3 Special features of the PROXY TIM 1531 IRC
TIM 1531 IRC
Operating Instructions, 02/2018, C79000-G8976-C468-02
315
C.3
Special features of the PROXY TIM 1531 IRC
Properties of the TIM or the "PROXY TIM 1531 IRC"
Compared to TIM 4R-IE, the TIM 1531 IRC and PROXY TIM 1531 IRC have the following
differences:
●
Interfaces
Similar to the TIM, the proxy has the following interfaces:
– 3 Ethernet interfaces
Ethernet interface X1 can be configured for using the MSC protocol.
– 1 serial WAN interface
The WAN interface can also be configured as an Ethernet interface for using the MSC
protocol.
You perform the configuration in the "Interfaces" tab as for TIM 4R-IE. The "Modem type"
and "Connection mode" parameters correspond to those of the TIM 4R-IE.
C.4
SINAUT configuration
Connection configuration with SINAUT Engineering Software
Configure the connection of a proxy in the SINAUT configuration tool in the same way as for
a TIM.
In the subscriber administration of the configuration tool, a proxy appears as follows:

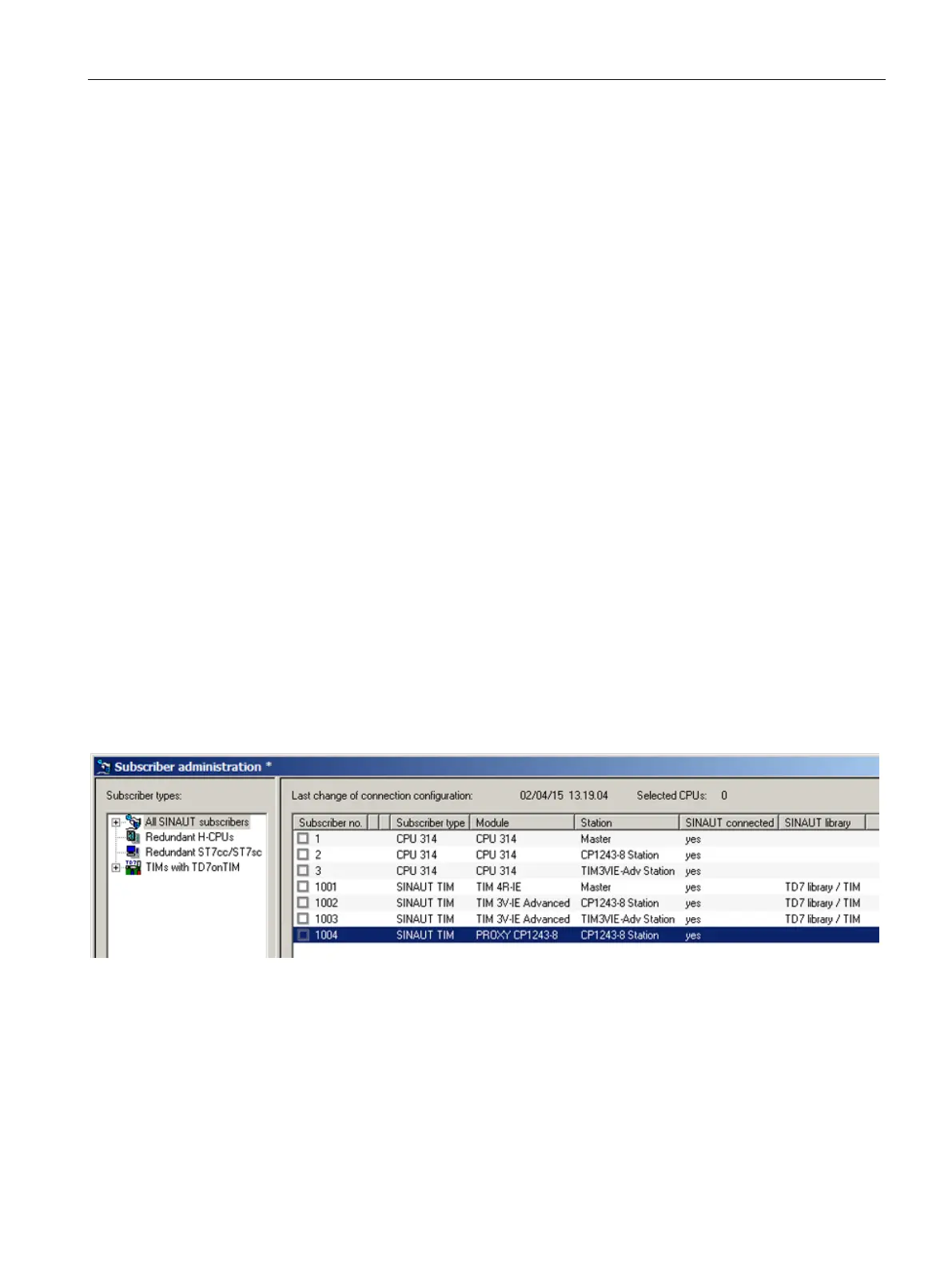

Figure C-2 View of a proxy in the SINAUT subscriber administration
If you double-click on the selected subscriber (proxy) in the subscriber list, you will find the
corresponding entry for the expanded type in the properties dialog of the subscriber:
