Application and functions
1.6 Configuration examples
TIM 1531 IRC
Operating Instructions, 02/2018, C79000-G8976-C468-02
21
●
Analog values can be preprocessed on the TIM according to various methods, see
section Analog value preprocessing (Page 119).
●
From an engineering station (ES) on which STEP 7 is installed, you can use the online
functions of STEP 7 via an Ethernet interface of the TIM to access the S7 CPU if the
station is located in the same IP subnet.
The following online functions are available:
– Downloading project or program data from the STEP 7 project to the station
– Querying diagnostics data on the station
– Downloading firmware files to the TIM
●
As an SNMP agent, the TIM supports data queries using SNMPv1 and SNMPv3 (Simple
Network Management Protocol).
For more detailed information, refer to section SNMP (Page 288).
Below, you will find configuration examples for the TIM.

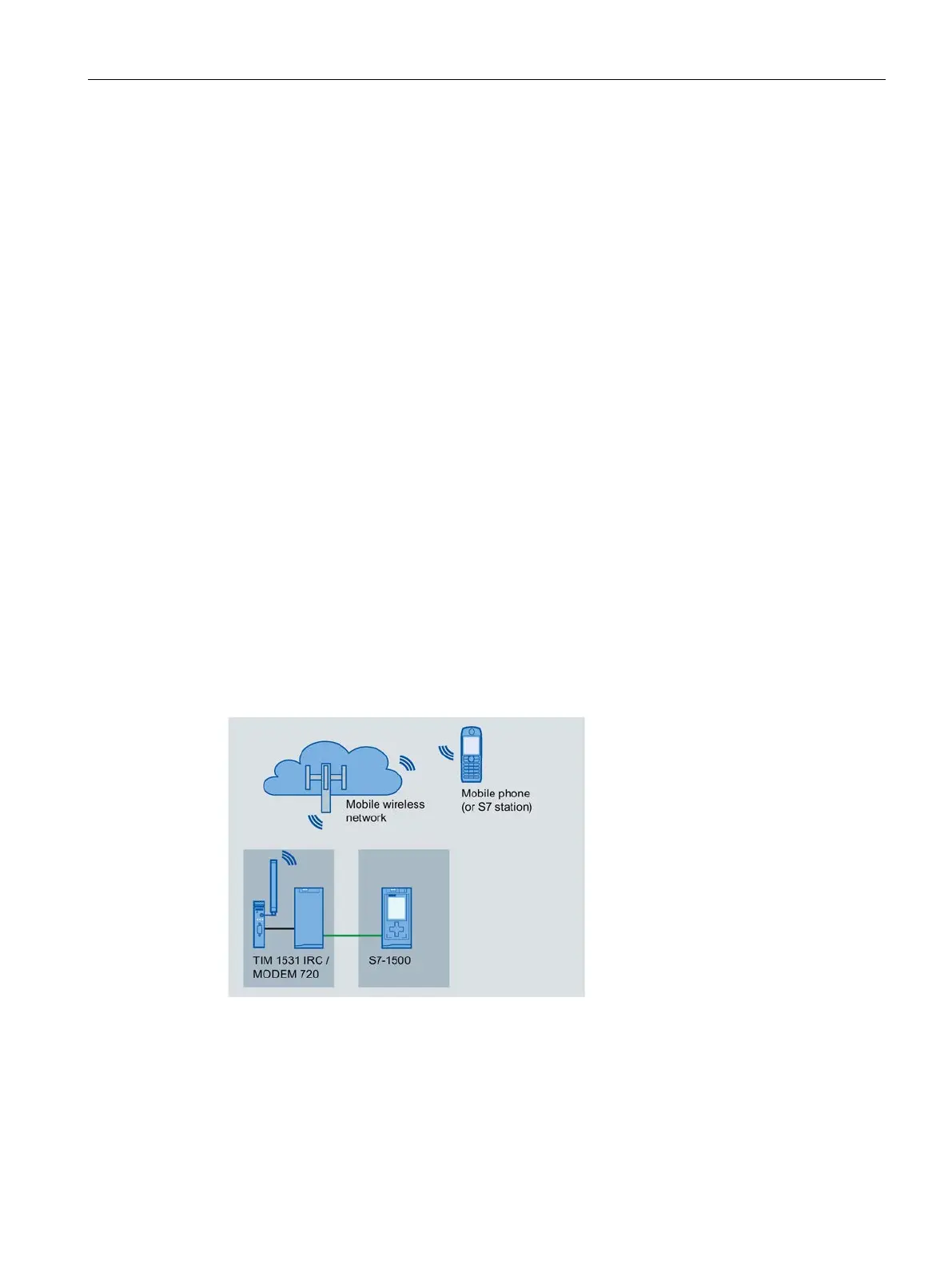

Figure 1-1 Sending messages by SMS
The TIM can send SMS messages to a mobile phone. SMS messages are generated and
sent due to events.
