Siemens TIM 1531 IRC User Manual

STEP 7 V5 configuration of the proxy
C.2 Proxies in HW Config
TIM 1531 IRC
314 Operating Instructions, 02/2018, C79000-G8976-C468-02
C.2
Proxies in HW Config
PROXY modules in HW Config
You can find the proxy modules as representatives of S7-1200/1500 communication
modules in the HW Config catalog under:
SIMATIC 300 > SINAUT ST7 > TIM IE
They have the following names:
● PROXY CP1243-8 IRC
● PROXY TIM 1531 IRC

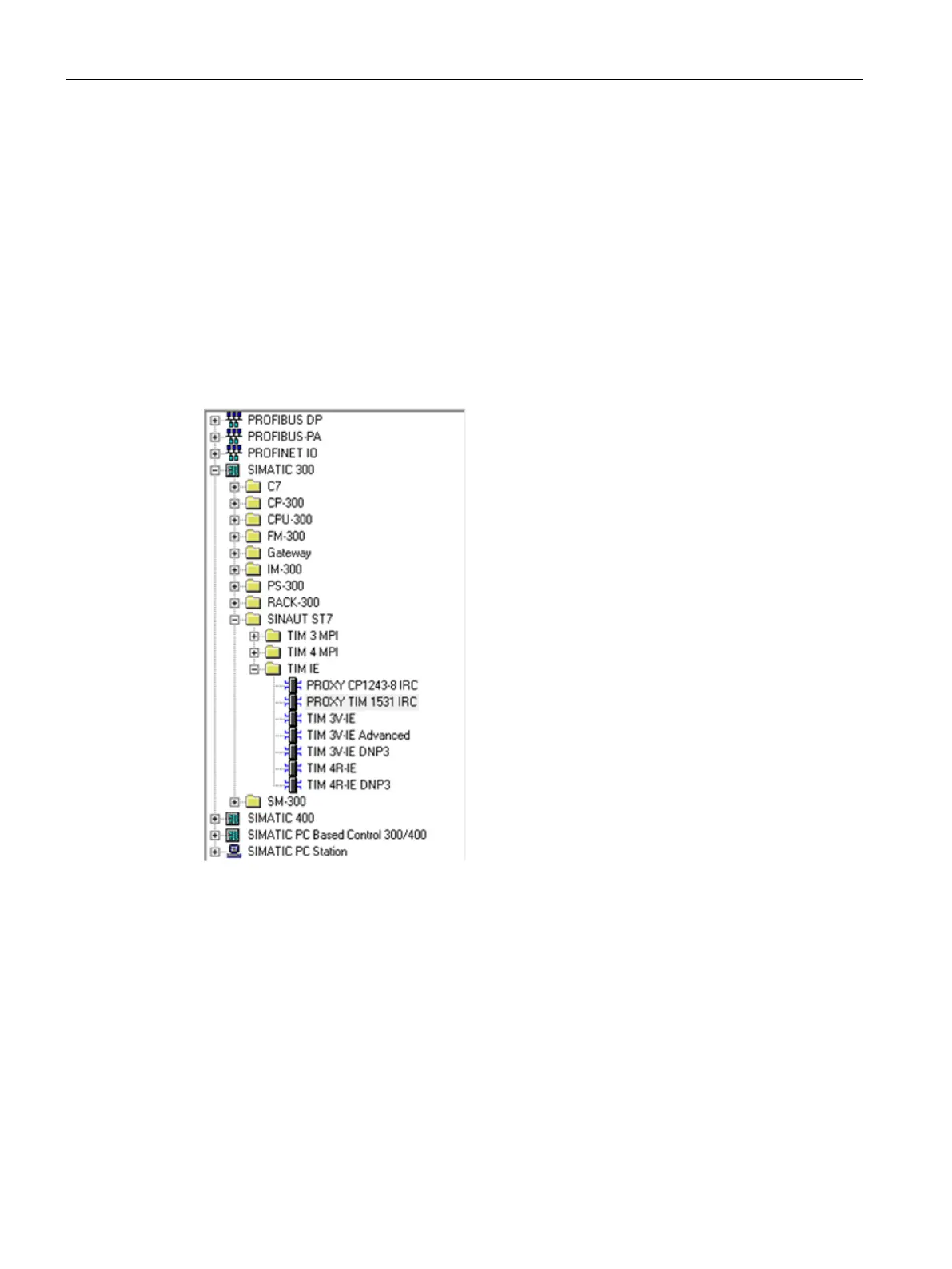

Figure C-1 PROXY modules in the catalog
