Siemens TIM 1531 IRC User Manual

TIM 1531 IRC
Operating Instructions, 02/2018, C79000-G8976-C468-02
3
Preface
CAUTION
To prevent injury, read the manual before use.
Validity of this manual
This manual is valid for the following product:
TIM 1531 IRC
Article number: 6GK7 543-1MX00-0XE0
Hardware product version 1
Firmware version 1.1
Communications module for SIMATIC S7-1500 / S7-400 / S7-300, SINAUT ST7 protocol,
with three RJ-45 interfaces for communication via IP-based networks (WAN / LAN) and an
RS-232/RS-485 interface for communication via classic WAN networks

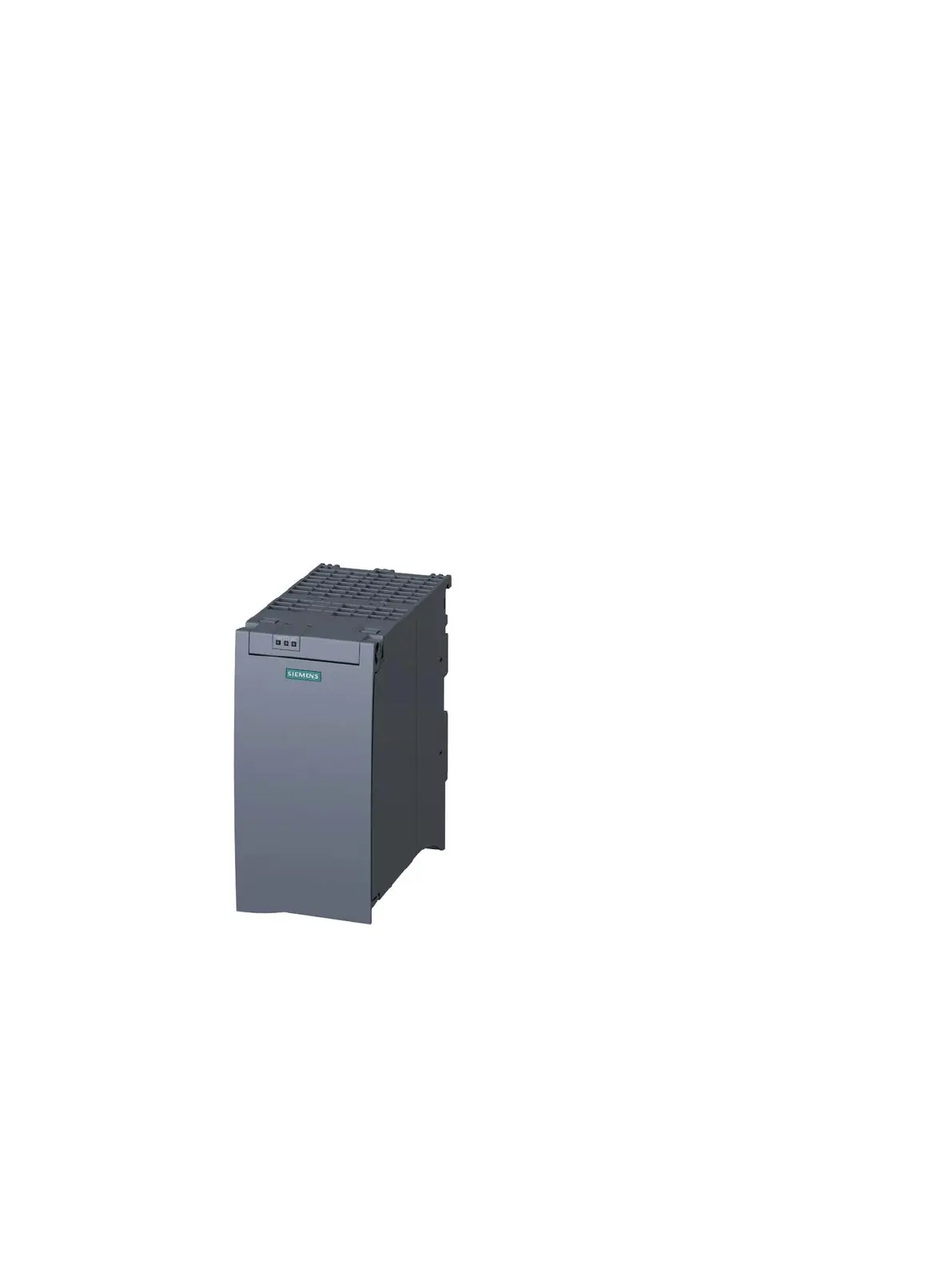

Figure 1 TIM 1531 IRC
You will find the the article number of the device on the top right of the housing.
You will find the hardware product version of the device printed as a placeholder "X" on the
right of the device (for example X 2 3 4). In this case, "X" would be the placeholder for
hardware product version 1.
You will find the MAC addresses of the three Ethernet interfaces at the front in the middle of
the housing.

Siemens TIM 1531 IRC Specifications

General

Brand	Siemens
Model	TIM 1531 IRC
Category	Controller
Language	English
