TIM 1531 IRC
Operating Instructions, 02/2018, C79000-G8976-C468-02
31
LEDs, connectors, switches, card slot
2
2.1
Overview: LEDs, connectors, switches, card slot

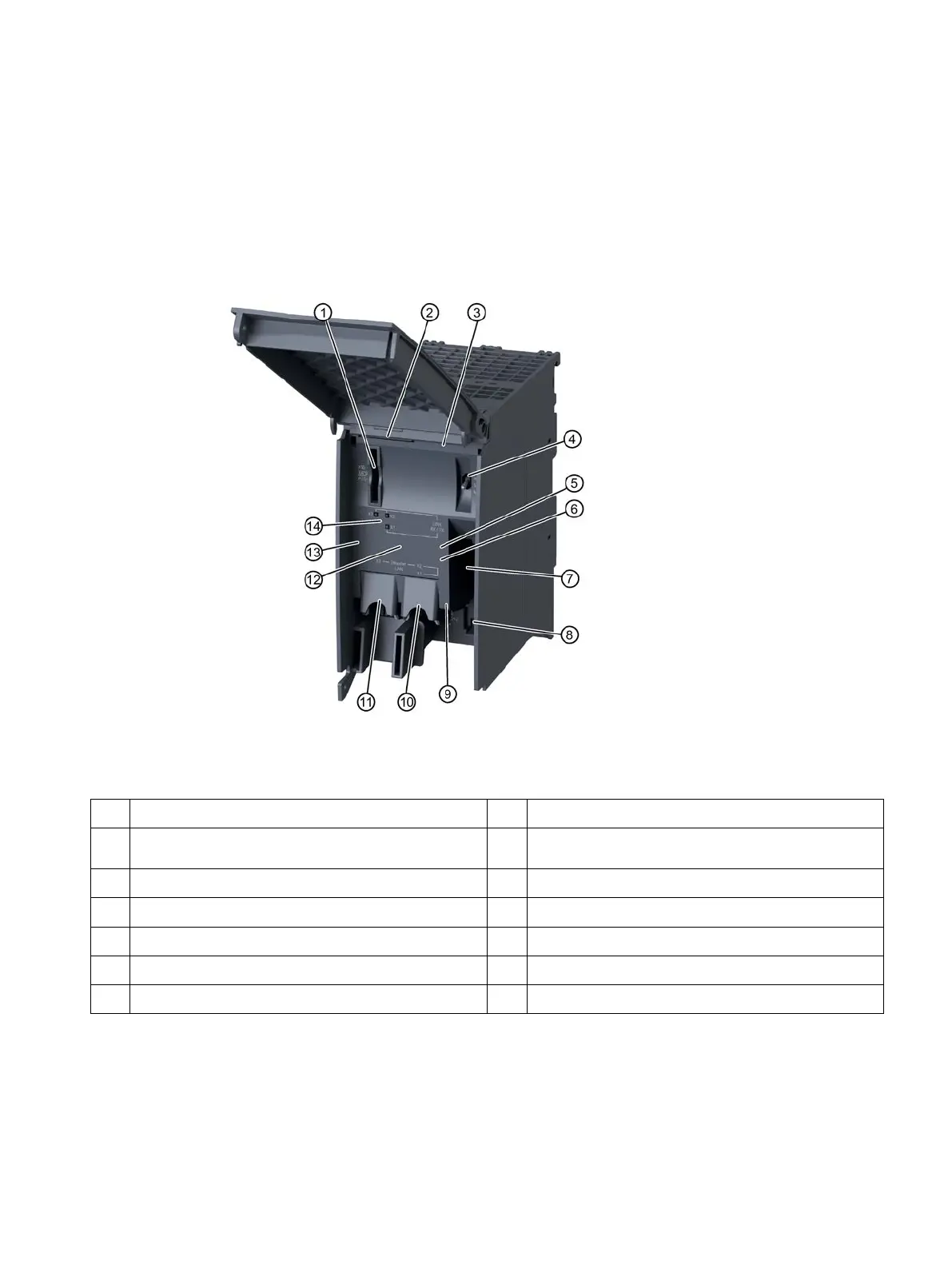

Figure 2-1 Location of the elements LEDs, connectors, switches, SD card slot
Table 2- 1 Meaning of the number symbols
①
X50: Receptacle for SD card
⑧
X80: Power supply (socket)
②
Status and diagnostics LEDs (covered): RUN,
ERROR, CONNECT
⑨
X1: Ethernet interface (Gigabit Ethernet)
③
Article number (covered)
⑩
X2: Ethernet interface (Fast Ethernet)
④
Switch
⑪
X3: Ethernet interface (Fast Ethernet)
⑤
MAC address Ethernet interface X2
⑫
Serial number (2D matrix code, alphanumeric)
⑥
MAC address Ethernet interface X1
⑬
MAC address Ethernet interface X3
⑦
X4: Serial interface, plug (RS-232/RS-485)
⑭
LEDs for Ethernet communication status: X1, X2, X3
