Accessories
B.4 Cables, connecting cables
TIM 1531 IRC
310 Operating Instructions, 02/2018, C79000-G8976-C468-02
Cables, connecting cables
B.4.1
Connecting cables for connecting modems
Standard connecting cables (RS-232)
The following connecting cables do not ship with the TIM.

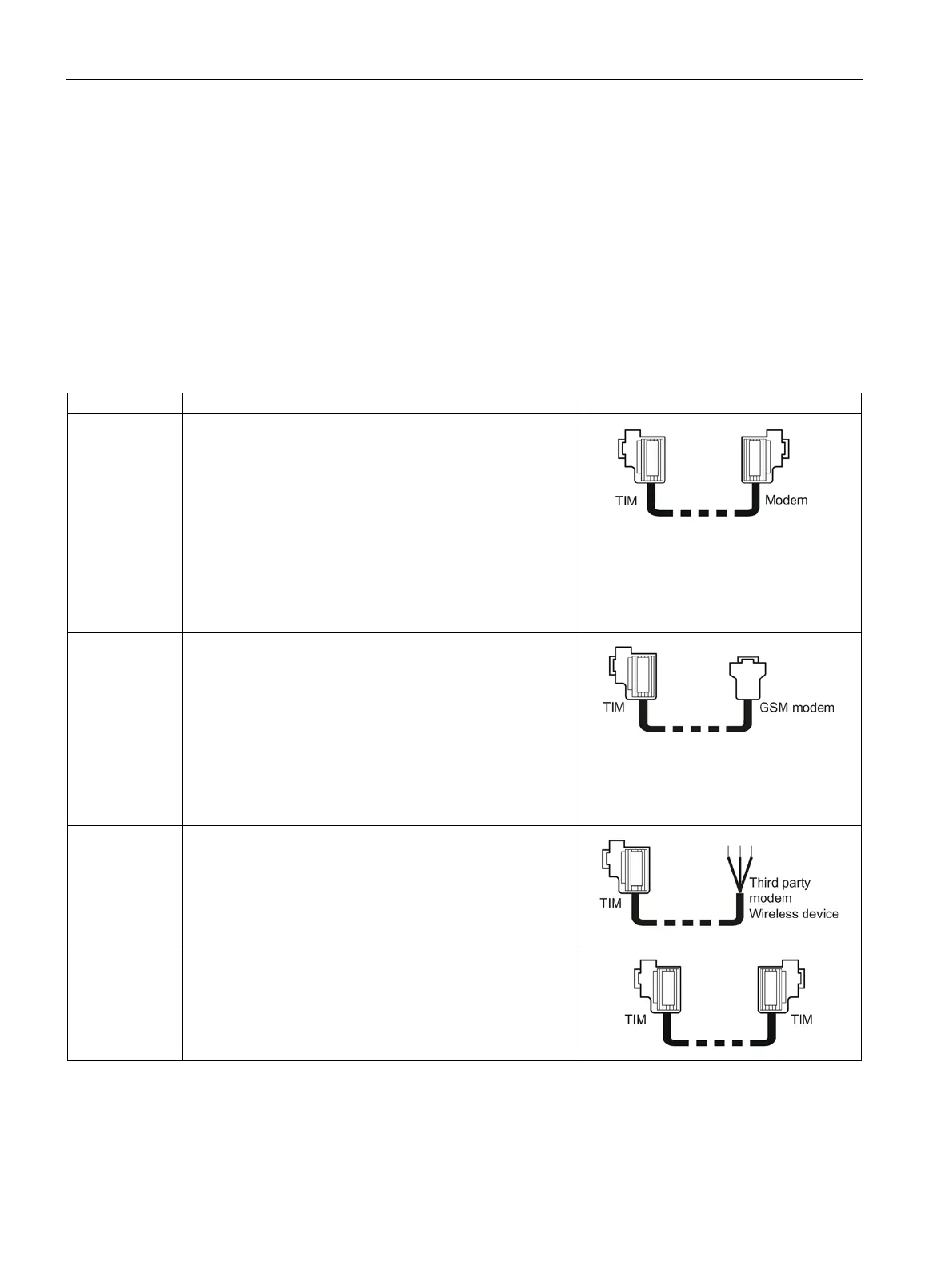

Table B- 1 Standard connecting cables for connecting TIM and modem
6NH7701-4AL Connecting cable for connecting the serial interface of the TIM (RS-
232) with a modem
D-sub male connector
Cable length 1.5 m
Suitable for the connection of the following modems:
• Modem for a dedicated line (MD2)
• Modem for analog dialup network (MD3)
• Modem for analog dialup network (MD4)
• GSM mobile wireless modem MODEM MD720
(can be used for MD720 with the supplied gender changer)
6NH7701-5AN Connecting cable for connecting the serial interface of the TIM (RS-
232) with a GSM mobile wireless modem
1 D-sub male connector, 1 D-sub female connector
Cable length 2.5 m
Suitable for the connection of the following modems:
• GSM mobile wireless modem MODEM MD720
(can be used without gender changer)
• Third-party modems with RS-232 connector
• Wireless devices with RS-232 connector
6NH7701-4BN Connecting cable open at one end for connecting the serial inter-
face of the TIM (RS-232) with a third-party modem
Cable length 2.5 m
6NH7701-0AR Test cable
Crossover connecting cable for connection of two TIM modules via
their RS-232 interface (without the interposition of a null modem)
Cable length 6 m
