Application and functions
1.6 Configuration examples
TIM 1531 IRC
24 Operating Instructions, 02/2018, C79000-G8976-C468-02
Private wireless networks
The left station TIM is configured as a node station. Underlying this an analog wireless
network with several stations is connected via the serial interface. An IP-based wireless
network could also be connected via the Ethernet interface.

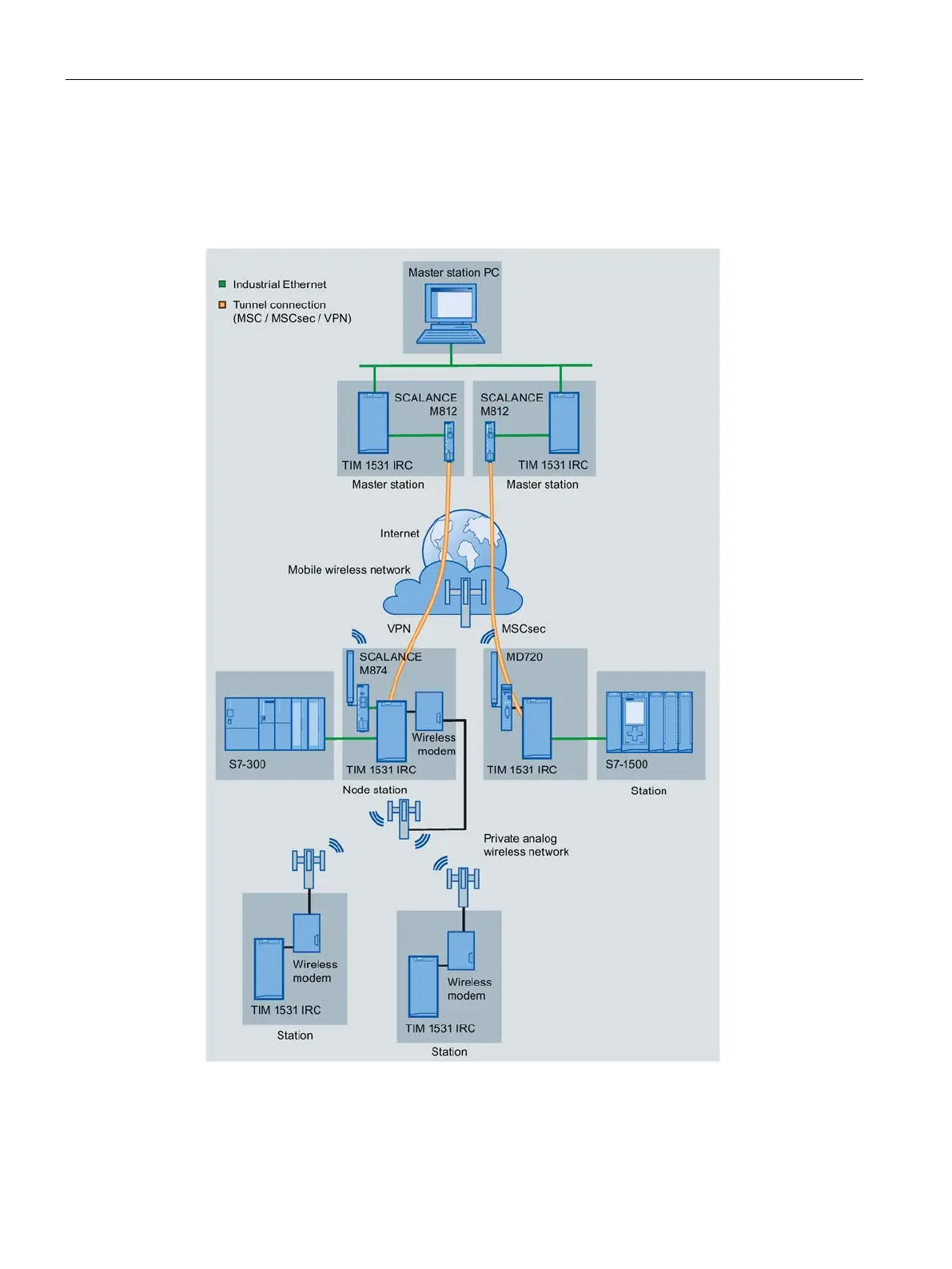

Figure 1-4 Communication using mobile wireless (at the top) and wireless (at the bottom)
