Configuration
4.6 Networking a TIM (Ethernet addresses / WAN settings)
TIM 1531 IRC
62 Operating Instructions, 02/2018, C79000-G8976-C468-02
3. Select the relevant interface to create a new WAN network. Alternatively:
In the parameter group "Network interface with" of the interface:
– Using the "Add new subnet" button
On the interface in the device symbol of the TIM
– Using the shortcut menu "Create subnet"
– Graphically by dragging (holding the mouse pointer pressed) to the interface symbol of
the communications partner
A new WAN network is created that adopts the network type from the connected
interface.
Network representation of a classic WAN
A classic WAN network is displayed in blue.

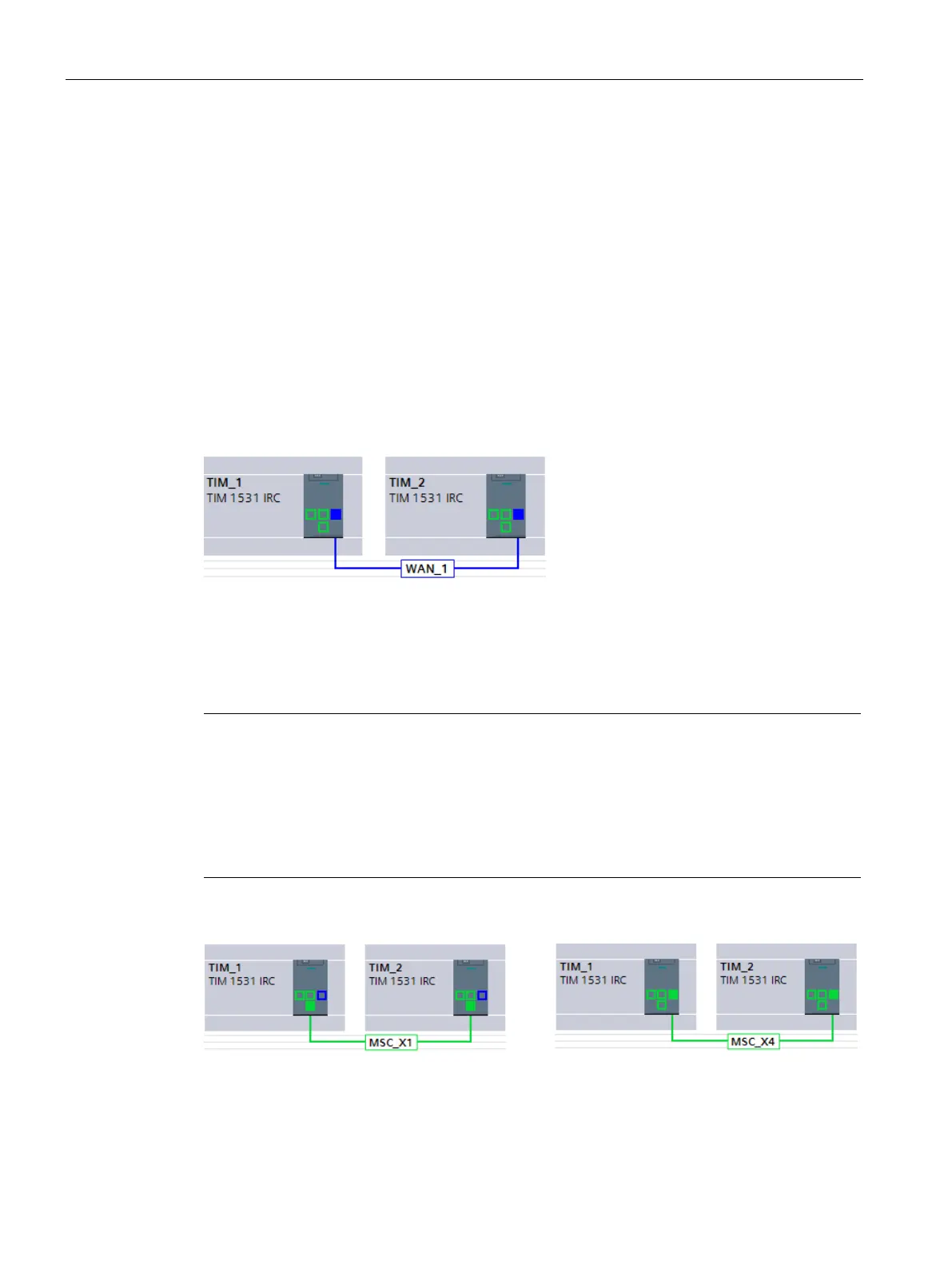

Figure 4-2 TIM modules, serial interfaces networked via classic WAN.
Note the options of using the "MSC" protocol via the interfaces of the TIM:
Note
MSC via TIM interfaces:
•
Of the three Ethernet interfaces, MSC is supported only by interface X1.
For the serial interface you need to set the WAN type "IP-based" and the Network type
MSC connections are represented as follows:
Figure 4-3 MSC connection via Ethernet interface X1 (left) and via serial interface (right)
The color of the serial changes from blue to green if the WAN type is changed from "Classic
WAN" to "IP-based".
