CA42/50/52 Echosounder operation Chapter 7
89
7.6 Variable range marker
From active echo display:
Turn on the Variable Range Marker function, and…
Move the variable range marker up/down
+/-
Adjust the range by means of the +/- keys
CLR
Turn VRM marker off again

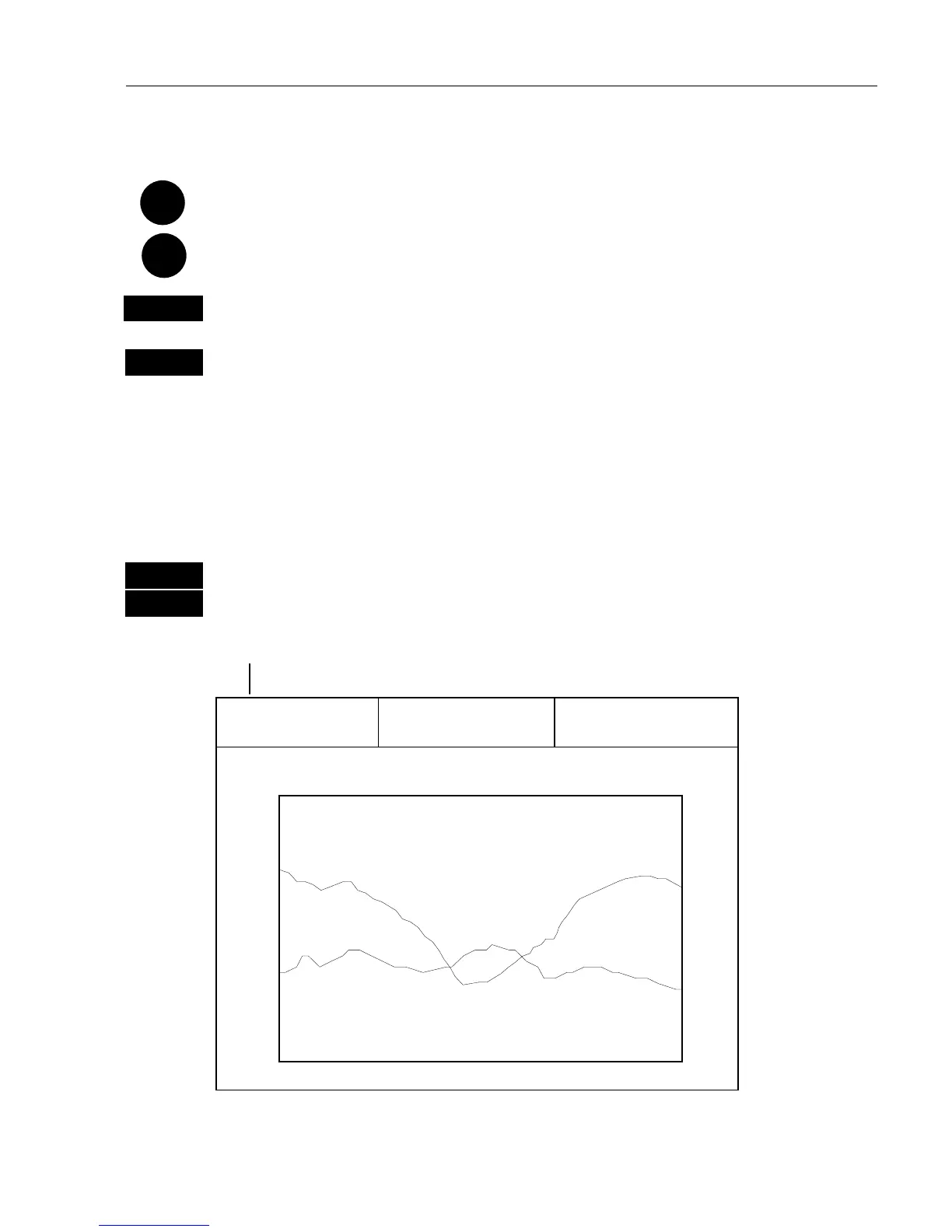

7.7 Depth & temperature diagram
MENU
Press
[MENU],
to call up the menu bar, and…
5,7
press
[5]
and
[7]
to activate Depth & temperature diagram
Present water temperature.
8.3°C 12:05 27.2m
[°C] 7:00 7:05 [m]
30 - - 0
- 25
20 -
- 50
10 -
- 75
0 - - 100
Present depth.
Depth over
time or
distance.
Temperature
over time or
distance.
