8.2.7 Split-screen operation

Improve safe navigation with radar image and chart on the same

screen. To split the screen in two halves from any window combination

where you want to have a chart in the left half of the screen and the

radar display in the right half of the screen:

Call up the menu bar, and…

WIN

press the [WIN] key until the left half of the screen is highlighted in the

screen symbol in the top right corner of the menu bar

1,1

Select chart 1 from the chart menu

- you now have a chart presented in the left half of the screen and are

ready to load the radar display in the right half of the screen:

Call up the menu bar, and…

WIN

press the [WIN] key until the right half of the screen is highlighted in

the screen symbol in the top right corner of the menu bar

6,1

Select radar display from the radar menu

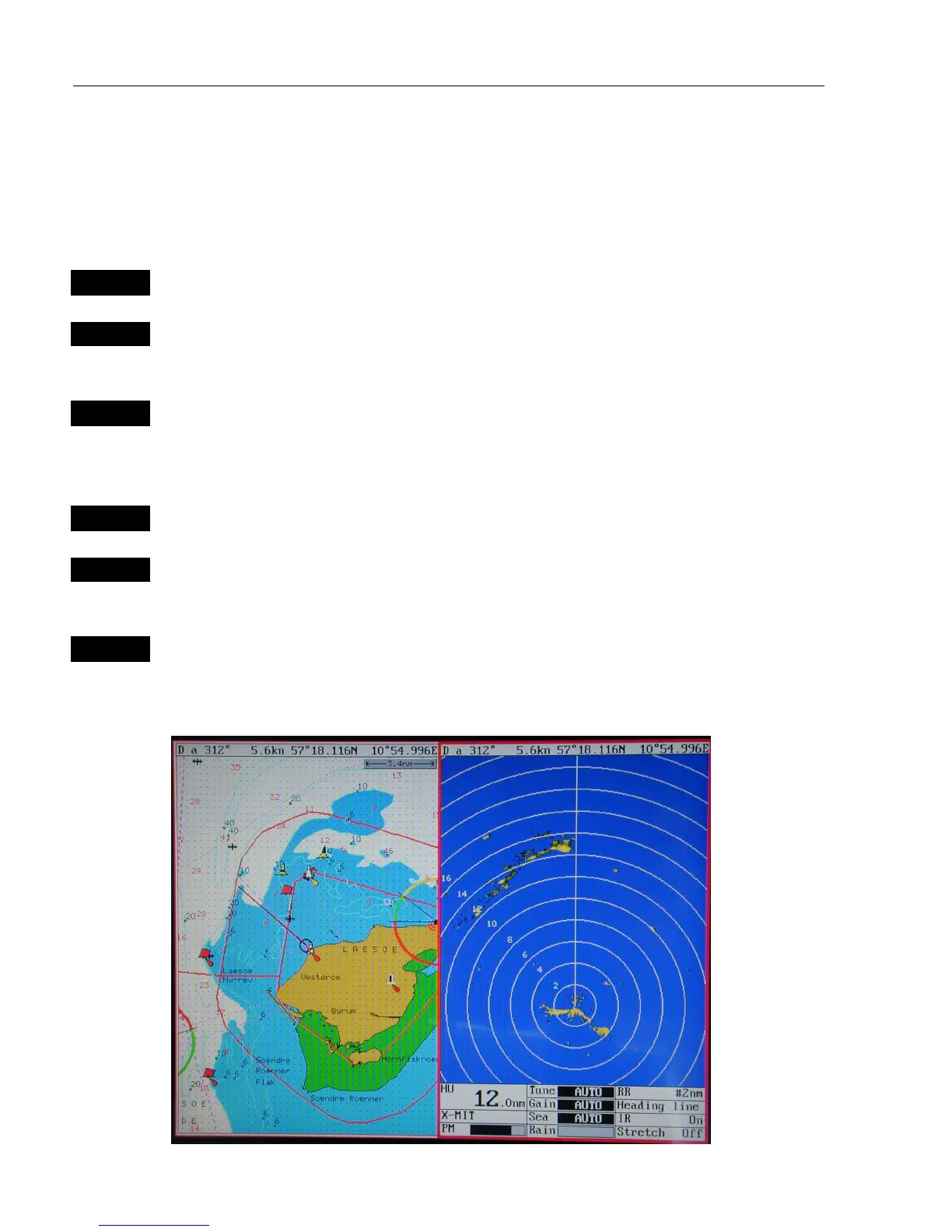

- you now have a chart and radar display presented on the same screen.
