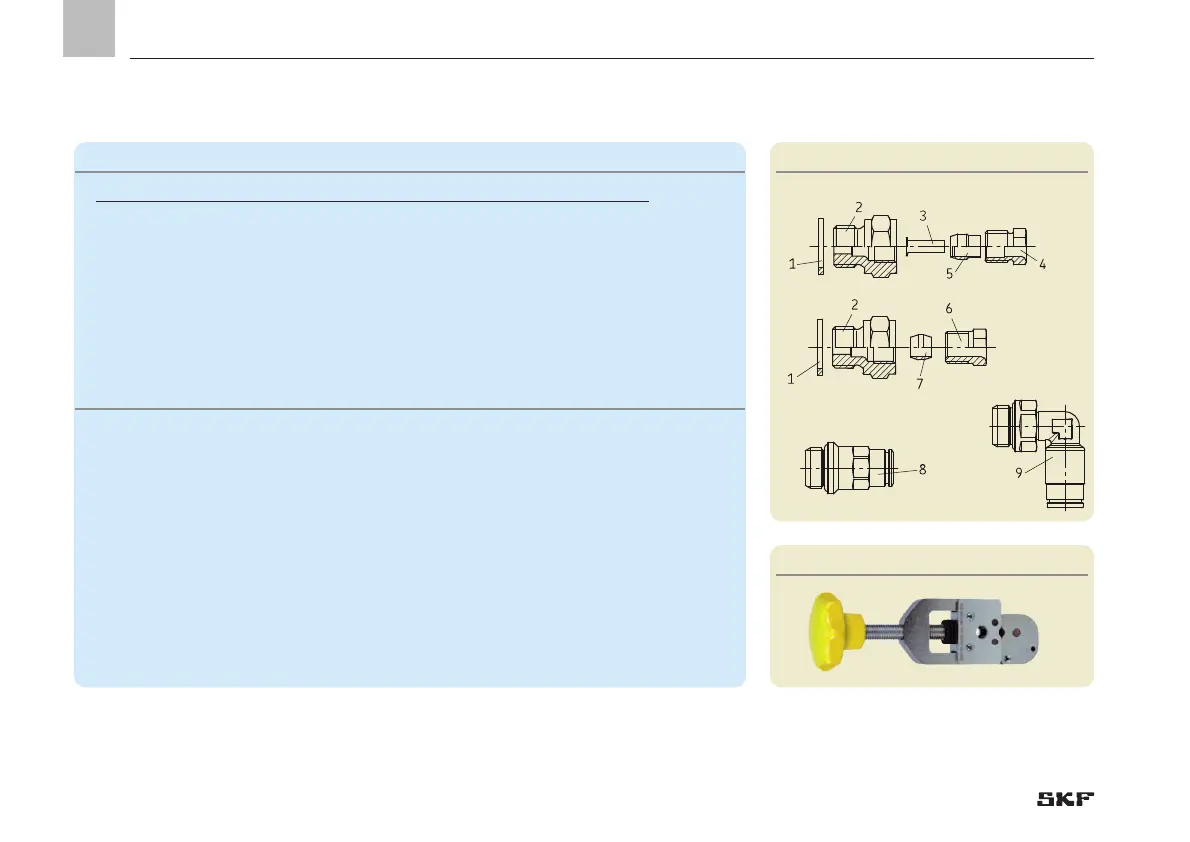

Main line connections, Fig. 8
For steel tubing
For plastic tubing
For plastic and steel tubing
Filling device, see Fig. 8
Item Description Order No.
1 Sealing ring 508-108
2 Connecting piece 406-054
3 Reinforcing socket 406-603
4 Socket union 406-612
5 Tapered sleeve 406-611
6 Socket union 406-002
7 Double tapered ring 406-001
8 Plug connector, straight 406-054-VS
9 Plug connector, pivoted 506-143-VS
Pipe cutter, see Fig. 9
Pipe cutter Cutting ring
for pipe Ø Order No. Order No.
For plastic tubing 169-000-301
For steel tubing with claw groove
4 169-000-336 844-330-006
6 169-000-337 844-330-007
8 169-000-338 844-330-007
Pipe cutter fitting tool, Fig. 9
