Tilt Switch Section 5 – Procedures

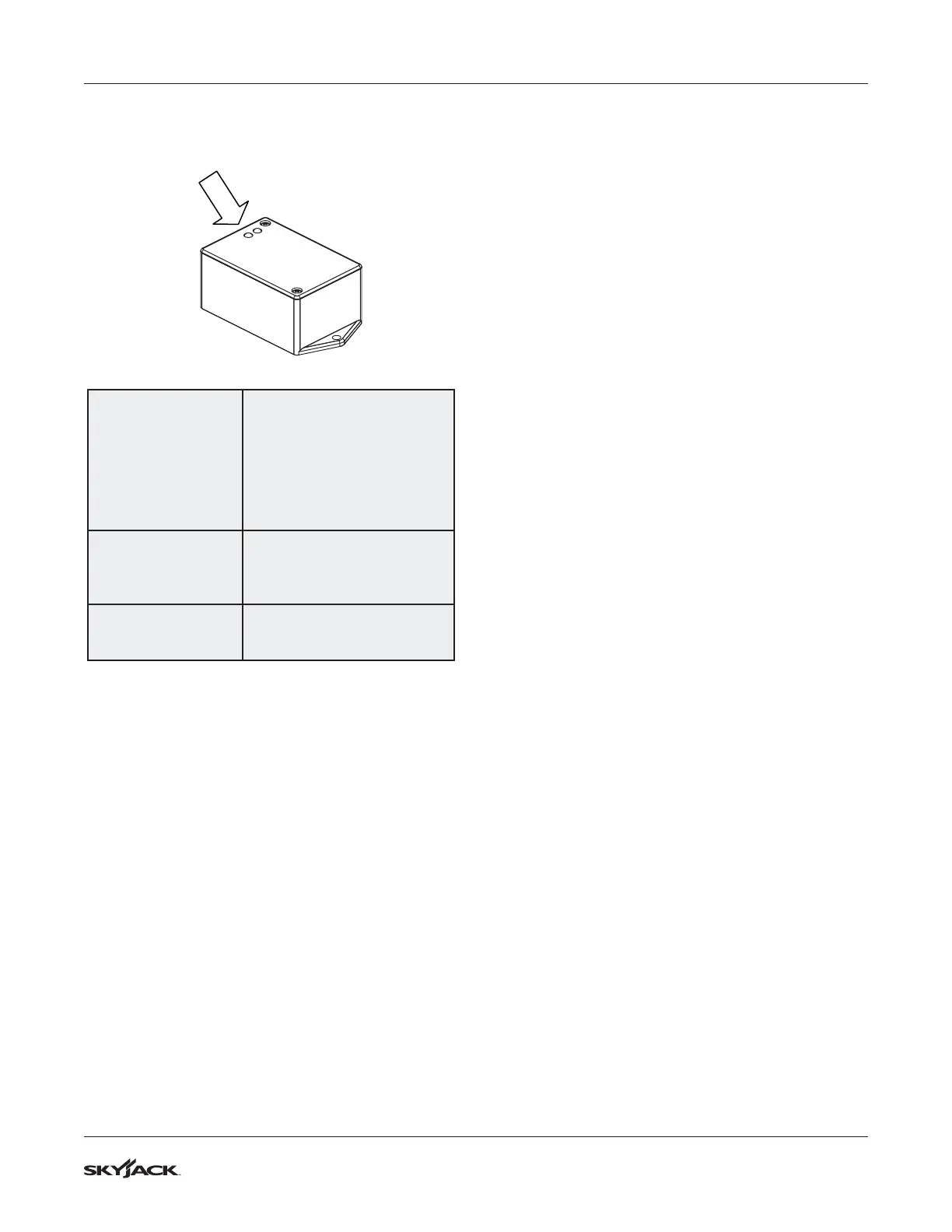

5.5-4 Tilt switch operation
Red LED
Green LED
Indicator Lights
Green LED
The green light is on whenever
both tilt axes are within the
specied degrees of the zero/
home learned position.
It ashes when transitioning in
or out of tilt angle limits, but the
built in time delay has not fully
occurred.
Red LED
The red light is on whenever tilt
on one or more axes is more
than the specied degrees out
from the zero/ home position.
Green & Red LED
Both lights are on together
and are solid when a fault is
detected.
