Section 5 – Procedures Platform
5.2 Platform

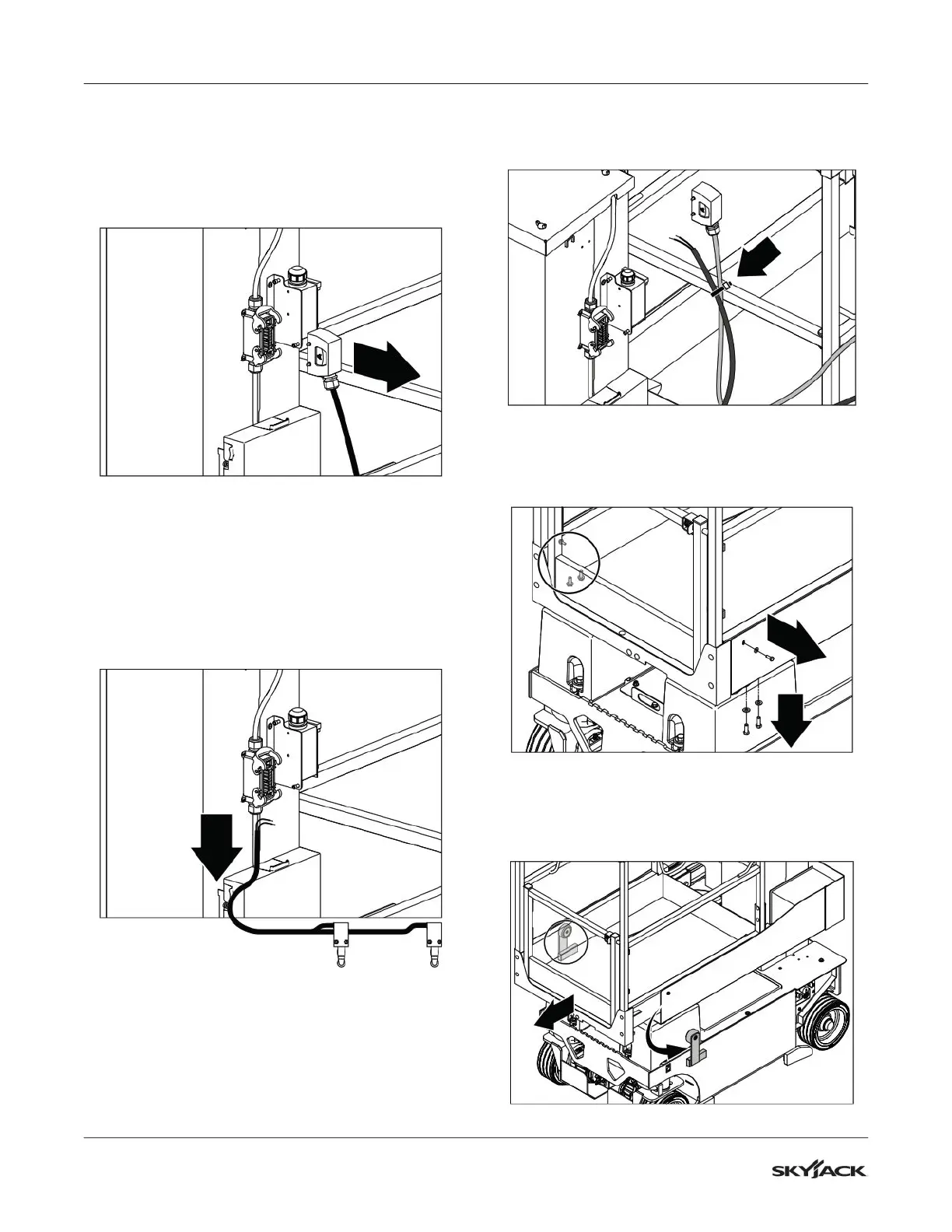

5.2-1 Remove the Platform
1. Disconnect the platform control cable from the
mast electrical housing.
2. Loosen the strain relief at the bottom of the
housing.
3. Use a screwdriver to open the housing so you
can see the wire connections.
4. Disconnect the limit switch connections from the
mast electrical housing.
5. Pull the limit switch wires out.
6. Use tie wraps to attach the platform control
cable and limit switch cable to the platform
railing.
7. Remove and set aside the three bolts that
secure the traverse platform to the front rollers
on each side.
8. Extend the platform a little so you can access
the front rollers.
9. Remove and set aside the two front rollers.
