SJ12 E, SJ16 E, SJ20 E
241914ACA

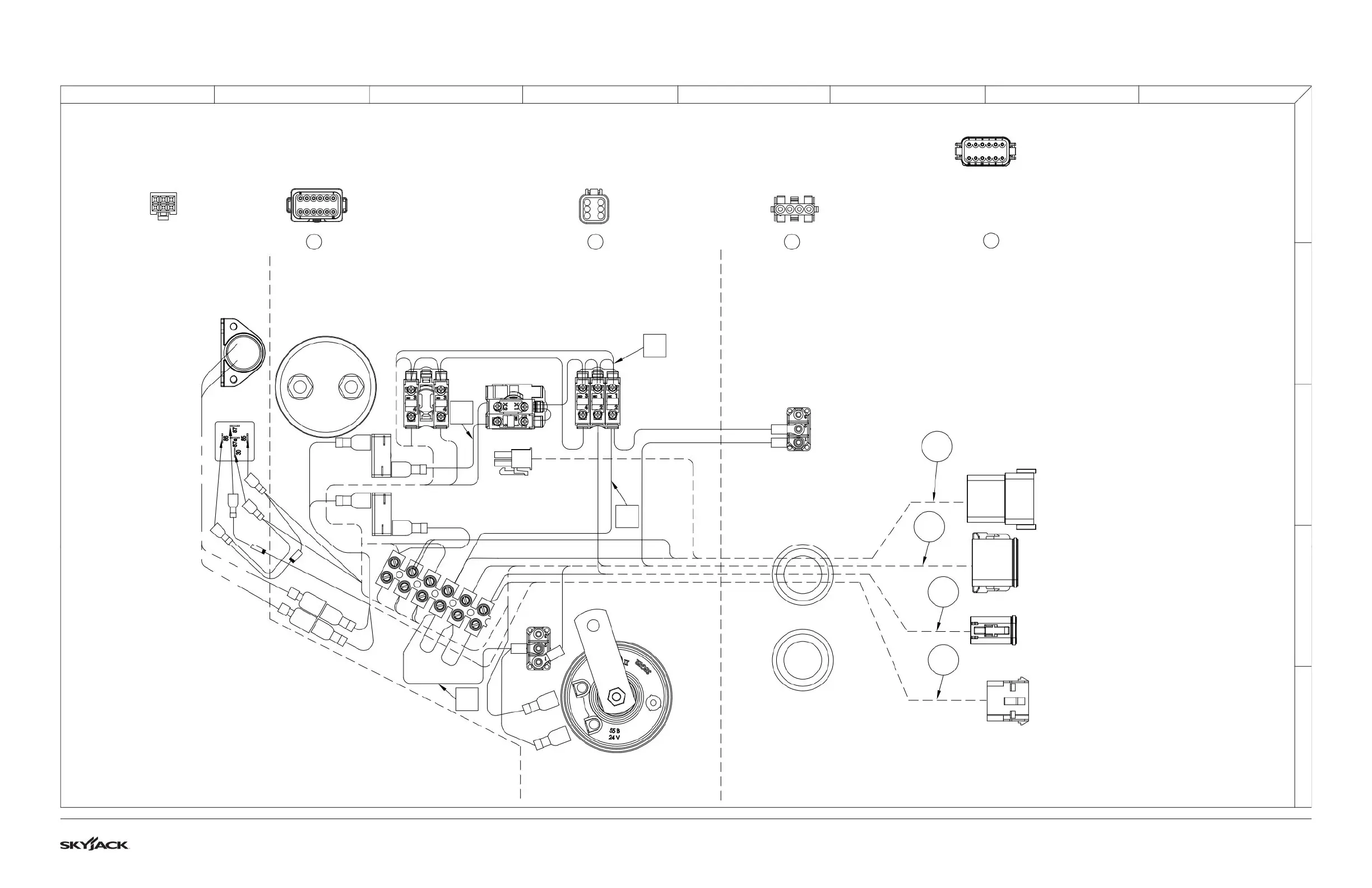

3.22 Base Control Wiring
M234197AB
05B
CB2 10A
BREAKER
CB1 15A
BREAKER
30ACR
BP-29
ALL
MOTION
BEEPER
J3
TO ZAPI
A CONN
P2
MAST
CABLE
J6
DIAG
CONN
DS1
DISPLAY
MODULE
08L
RD
29
BK
03B
03A
D30
07
49
30
13A
14A
60
19B
05A
S6
BRAKE
RELASE
SWITCH
S5
DIAGNOSTIC
SWITCH
S28
EMERGENCY
STOP
S2
LIFT/LOWER
J4
TO ZAPI
B CONN
10
10
10
30A
05A
03C
08C
S10 KEY
SWITCH
08C
05
05A
05A
08C
08C
H1
HORN
08C
05A
08L
03C
00
03C
08L
00
08C
08C
08C
08C
1
2
3
5
6
4
DS1
TO DISPLAY
BACK VIEW
TO DISPLAY
PIN 1 - 00 WHITE
PIN 2 - N/U
PIN 3 - CAN H YELLOW
PIN 4 - CAN L GREEN
PIN 5 - N/U
PIN 6 - 08C PURPLE/WHITE
TO MAST CABLE
PIN 1 - 07 - RED
PIN 2 - 08 - PURPLE/WHITE
PIN 3 - CAN H - YELLOW
PIN 4 - CAN L - GREEN
PIN 5 - 08C - PURPLE/WHITE
PIN 6 - 00 - WHITE
P2
BACK VIEW
1
2
3
4
5
6
J3
BACK VIEW
TO ZAPI A CONN
PIN 1 - 08 - PURPLE/WHITE
PIN 2 - 08C - PURPLE/WHITE
PIN 3 - 03A - GREEN/PURPLE
PIN 4 - 03B - GREEN/PURPLE
PIN 5 - 03C - GREEN/PURPLE
PIN 6 - 29- BLUE/YELLOW
PIN 7 - 08L - PURPLE/WHITE
PIN 8 - CAN HI - YELLOW
PIN 9 - CAN LO - GREEN
PIN 10 - 05C - PURPLE/BLACK
PIN 11 - 00 - WHITE
PIN 12 - NOT USED
TO DIAG DEVICE/TELE COMM
PIN 1 - 08C PURPLE WHITE
PIN 2 - 00 -WHITE
PIN 3 - CAN H - YELLOW
PIN 4 - CAN L - GREEN
J6
DIAG CONN
BACK VIEW
1
2
3
4
J4
BACK VIEW
TO ZAPI B CONN HRNS
PIN 1 - 60 - BLACK/GREEN
PIN 2 - 03C - GREEN/PURPLE
PIN 3 - 14A - BLACK
PIN 4 - 13A - ORANGE
PIN 5 - 10 - BLUE/WHITE
PIN 6 - 07 - RED
PIN 7 - 19B - GREEN/BLACK
PIN 8 - 30 - BLUE/RED
PIN 9 - 08C - PURPLE/WHITE
PIN 10 - 49 -GREEN
PIN 11 - 08L - PURPLE/WHITE
PIN 12 - 30A - BLUE/RED
D05B
A
B
W1
W3
W4
W2
A
B
C
D
DC
NOTE: BUNDLE J4 OUT OF
BOX PORTION TOGETHER
WITH J3 FROM ITEM A USING
PROPER SIZE LOOM
