SJ12 E, SJ16 E, SJ20 E
241914ACA
Motor and Controller Connections Section 3 – System Component Identication and Schematics

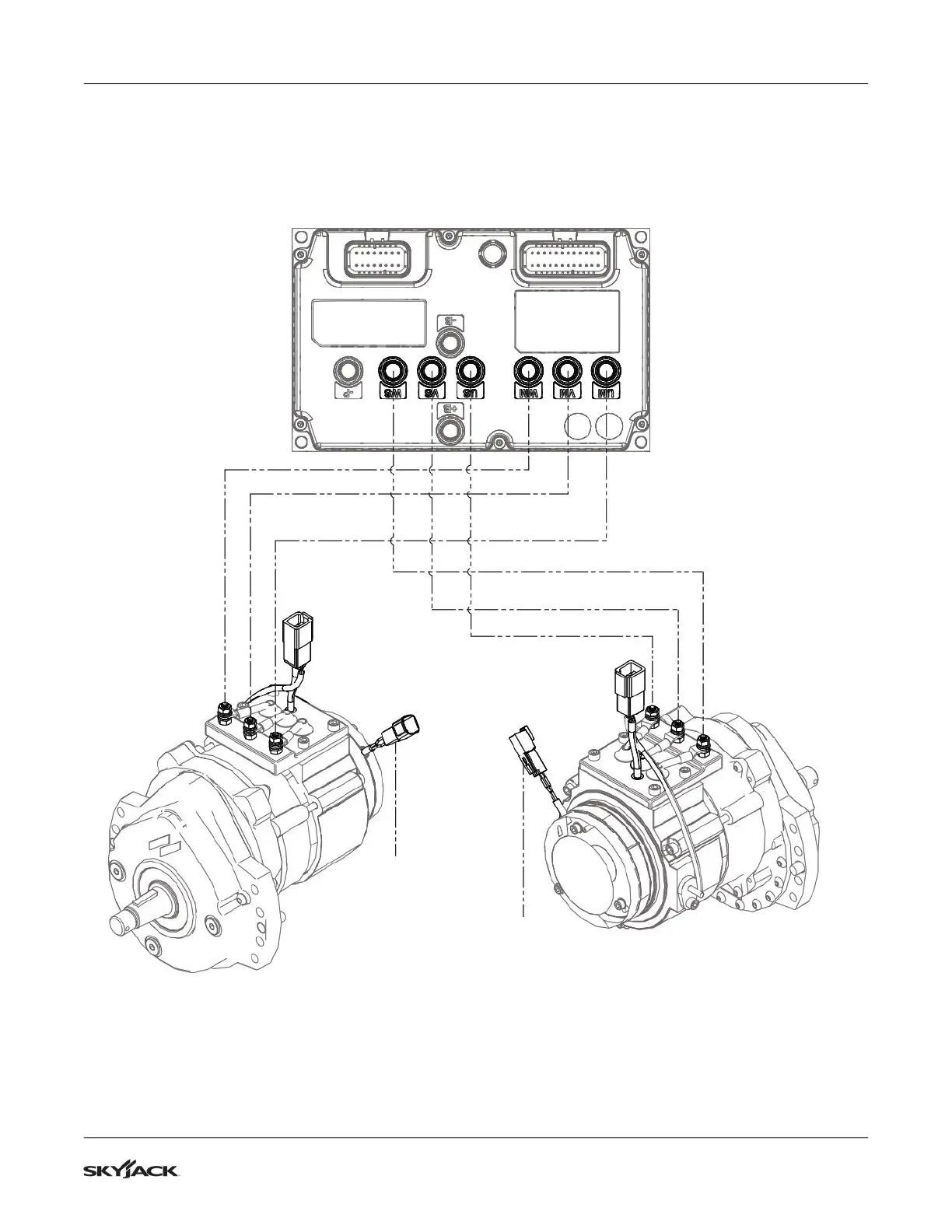

3.14 Motor and Controller Connections
M234099AC2
Power Unit
Left Motor
Right Motor
SW
SW
SV
SV
SU
To P10
on ZAPI Harness
To P8
on ZAPI Harness
To P9
on ZAPI Harness
To P7
on ZAPI Harness
SU
