Skyjack SJ12 E - Pin Charts; ZAPI Controller Pin Chart

108
SJ12 E, SJ16 E, SJ20 E
241914ACA
Section 5 – Procedures Pin Charts
5.6 Pin Charts

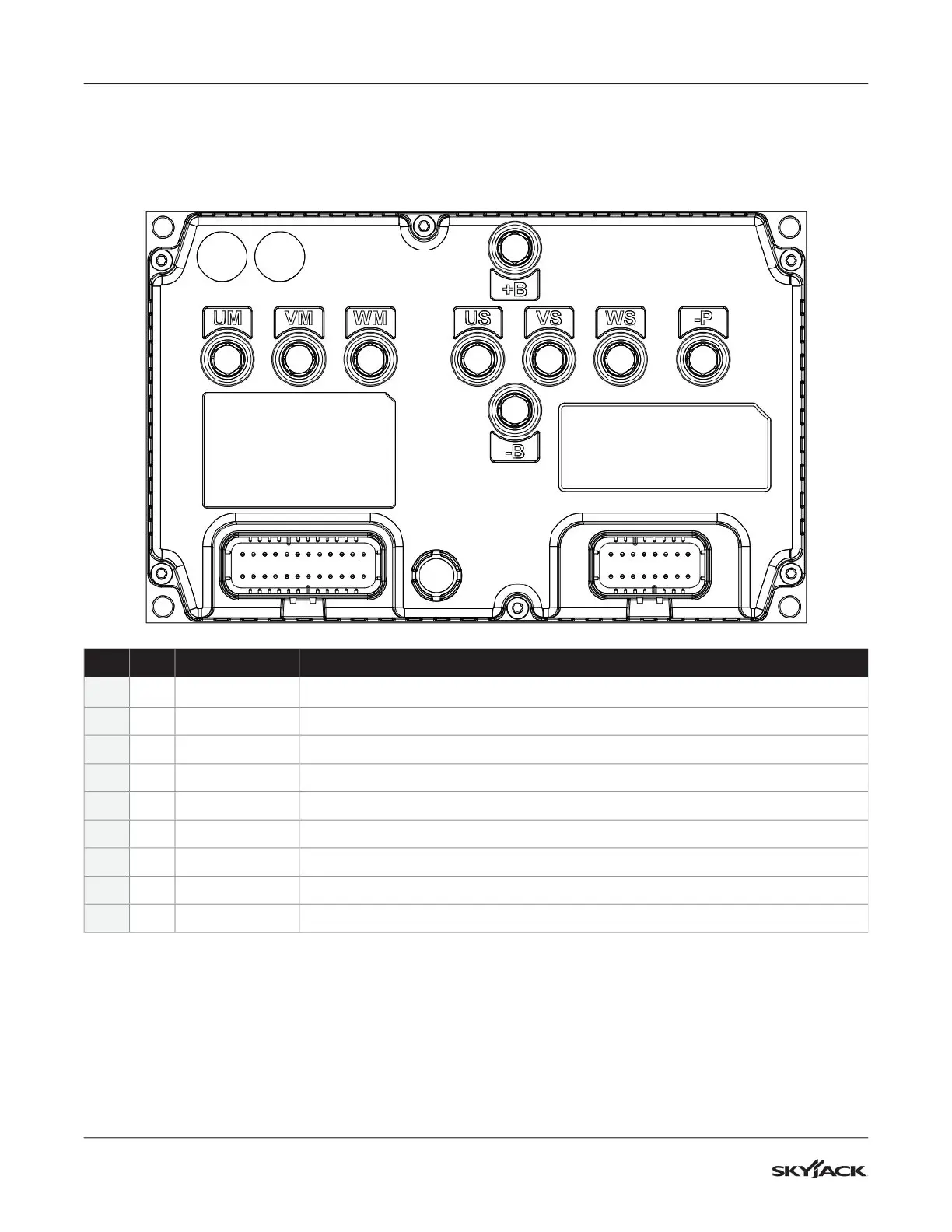

5.6-1 ZAPI Controller Pin Chart
Plug Pin # Wire # and Color Wire Function
B+ 03B Black Lug for 24V supply voltage (from C1 Motor Contactor via pump motor +)
B- 00 Black Lug for 0V reference from Battery Negative
P- (-P Black) Lug for Output of Pulsed Negative (-) to initialize Pump Mptor
US US Black Lug for Phase U of Left Traction Motor
VS VS Black Lug for Phase V of Left Traction Motor
WS WS Black Lug for Phase W of Left Traction Motor
UM UM Black Lug for Phase U of Right Traction Motor
VM VM Black Lug for Phase V of Right Traction Motor
WM WM Black Lug for Phase W of Right Traction Motor
