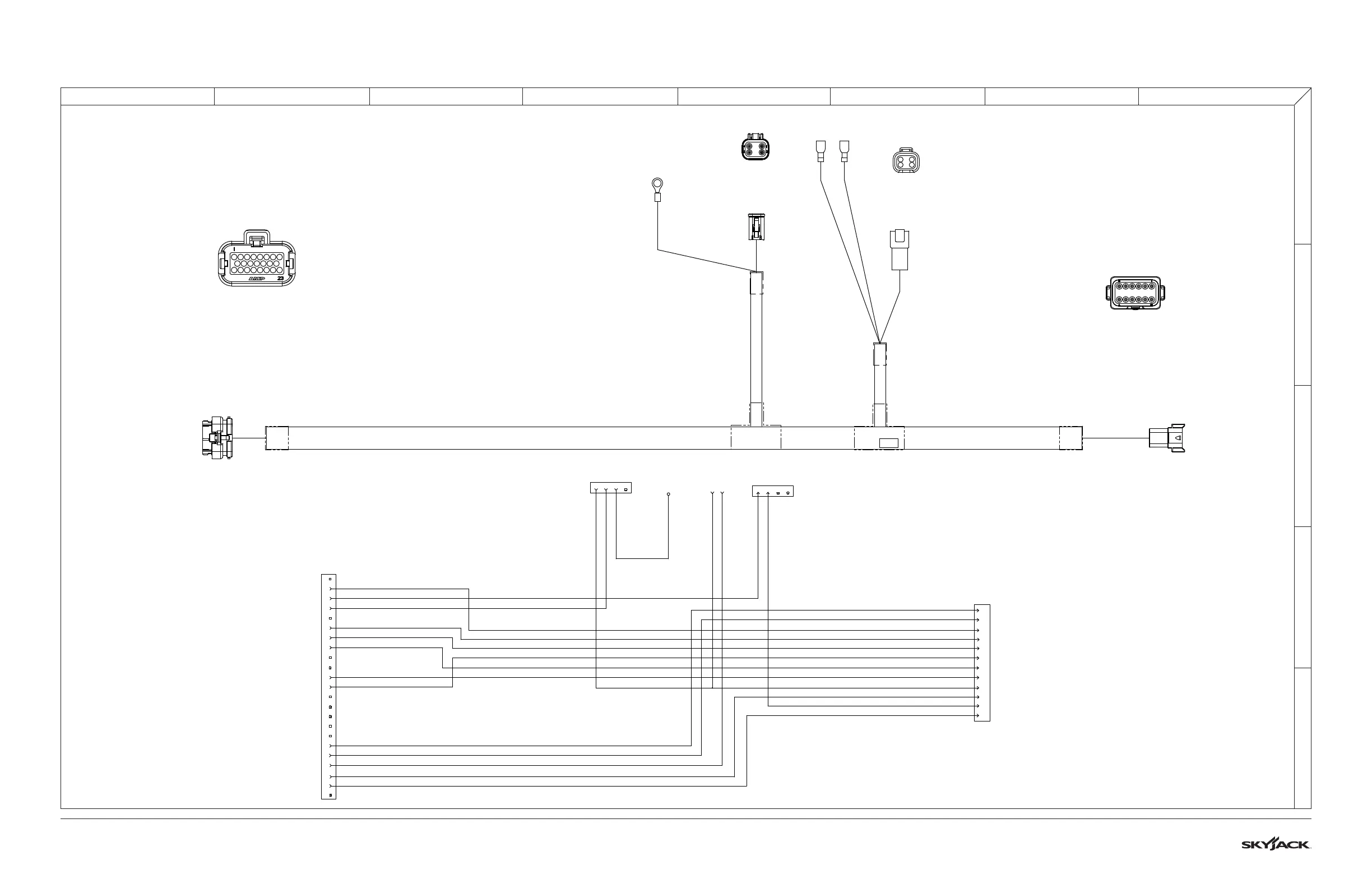

3.25 Main Harness - ZAPI B
LS1 MAST POSITION LIMIT SW
PIN 1 - 21 BLUE/RED
PIN 2 - 08L PURPLE/WHITE
PIN 3 - NOT USED
PIN 4 - NOT USED
P6
BACK VIEW
1
2
4
3
TO FL1 STROBE LIGHT OPTION
08C PURPLE/WHITE
22 BLUE/YELLOW
J6
JB
PIN 14 - N/U
PIN 15 - N/U
PIN 16 - N/U
PIN 17 - N/U
PIN 18 - 60 BLACK/GREEN
PIN 19 - 03C GREEN/PURPLE
PIN 20 - 22 ORANGE/BLUE
PIN 21 - 49 GREEN
PIN 22 - 30A BLUE/RED
PIN 23 - N/U
TO JB ON MOTOR CONTROLLER
PIN 1 - N/U
PIN 2 - 14A BLACK
PIN 3 - 21 BLUE/RED
PIN 4 - 28 GREEN
PIN 5 - N/U
PIN 6 - 13A ORANGE
PIN 7 - 10 BLUE/WHITE
PIN 8 - 19B GREEN/BLACK
PIN 9 - N/U
PIN 10 - N/U
PIN 11 - 30 BLUE/RED
PIN 12 - 07 RED
PIN 13 - N/U
JB
BACK VIEW
1
2
3
4
8
7
6
5
9 10 11
12
15
14
13
16
17
18 19 23
2221
20
TO P4 LOWER CONTROL BOX
PIN 1 - 60 BLACK/GREEN
PIN 2 - 03C GREEN/PURPLE
PIN 3 - 14A BLACK
PIN 4 - 13A ORANGE
PIN 5 - 10 BLUE/WHITE
PIN 6 - 07 RED
PIN 7 - 19B GREEN/BLACK
PIN 8 - 30 BLUE/RED
PIN 9 - 08C PURPLE/WHITE
PIN 10 - 49 GREEN
PIN 11 - 08L PURPLE/WHITE
PIN 12 - 30A BLUE/RED
P4
BACK VIEW
08C
22
AT1 ANGLE TRANSDUCER
PIN 1 - 08C PURPLE/WHITE
PIN 2 - 28 GREEN
PIN 3 - 00 WHITE
PIN 4 - NOT USED
P10
BACK VIEW
TO BATTERY NEGATIVE
S08C
P10
TO STROBE LIGHT
OPTION
10-BU/WH-18
13A-OR-18
JB
TO MOTOR
CONTROLLER
60-BK/GN-18
14A-BK-18
22-OR/BU-18
21-BL/RD-18
08L-PU/WH-18
21-BL/RD-18
P6
TO MAST POSITION
LIMIT SW
08C-PU/WH-18
13A-OR-18
P4
TO LOWER BASE
CONTROL
14A-BK-18
10-BL/WH-18
19B-GN/BK-18
49-GN-16
07-RD-18
60-BK/GN-18
03C-GN/PU-18
03C-GN/PU-18
22-OR/BU-18
07-RD-18
19B-GN/BK-18
30-BL/RD-18
30-BL/RD-18
08C-PU/WH-18
49-GN-16
08L-PU/WH-18
30A-BL/RD-18
30A-BL/RD-18
P6
TO TILT SENSOR
TO BATTERY
NEGATIVE
08C-PU/WH-18
28-GN-18
28-GN-18
00-WH-18
00-WH-18
S08C
2
1
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
20
21
22
23
1
2
3
4
1
3
4
5
6
7
9
10
11
12
8
2
19
10
1
2
3
4
M234156AD
